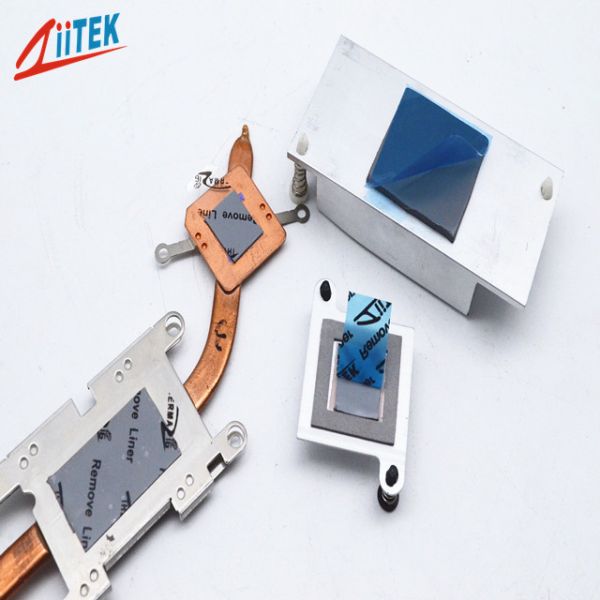

Ultra Soft And Highly Compliant Thermally Conductive Gap Filler Pads Thermal Pads For Power Tools AI Processors
Ultra Soft And Highly Compliant Thermally Conductive Gap Filler Pads Thermal Pads For Power Tools AI Processors
Ultra Soft And Highly Compliant Thermally Conductive Gap Filler Pads Thermal Pads For Power Tools AI Processors
Ultra Soft And Highly Compliant Thermally Conductive Gap Filler Pads Thermal Pads For Power Tools AI Processors
Specifications
Brand Name :
ZIITEK
Model Number :
TIF500-30-11U
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Product name :
Ultra Soft And Highly Compliant Thermally Conductive Gap Filler Pads Thermal Pads For Power Tools AI Processors
Construction & Compostion :
Ceramic filled silicone elastomer
Keywords :
Thermal Pad
Thermal conductivity :
3.0W/m-K
Color :
Dark Gray
Thickness range :
0.25~5.0mm(0.010~0.20 inch)
Hardness :
65 Shore 00
Applicatioon :
Power Tools AI Processors
Description

Ultra Soft And Highly Compliant Thermally Conductive Gap Filler Pads Thermal Pads For Power Tools AI Processors


Company Profile


Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Products description


TIF®500-30-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces,and the susceptibility of precision components to mechanical damage in high-precision assemblies.


Features:

> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications:

> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes

Typical Properties of TIF®500-30-11U Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.1 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.5) (0.75~5.0)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 6.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ultra Soft And Highly Compliant Thermally Conductive Gap Filler Pads Thermal Pads For Power Tools AI Processors

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
