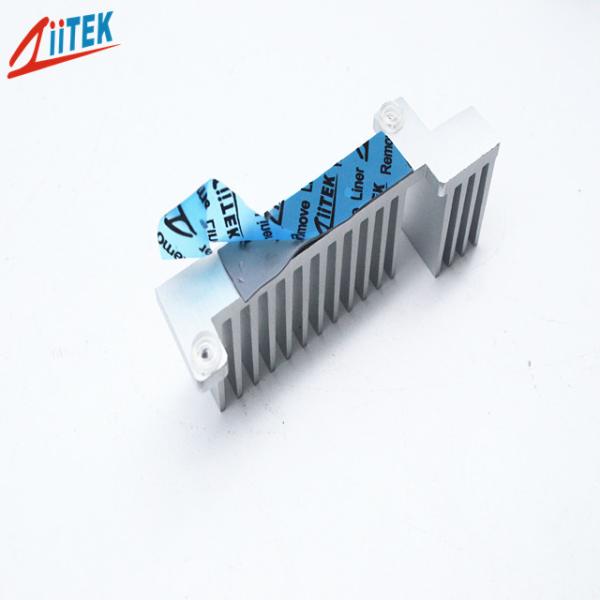

Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules
Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules
Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules
Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-40-11S
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 days
Packaging Details :
1000pcs/bag
Products name :
Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules
Thermal conductivity :
4.0W/m-K
Hardness :
45±5 Shore 00
Operating Temp :
-40-160℃
Keywords :
Cpu Thermal Pad
Specific Gravity :
3.28 g/cc
Dielectric Constant（@ 1MHz） :
4.75
Flame Rating :
94-V0
Sample :
Sample free
Application :
Gpu RDRAM Memory Modules
Description

Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules

The TIF100-40-11S Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.


Features:

> Good thermal conductive: 4.0W/mK

> Outstanding thermal performance

> Broad range of hardnesses available
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> CPU
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF®100-40-11S Series
Color Gray Visual
Construction Ceramic filled silicone elastomer ******
Thickness Range(inch/mm) 0.020~0.20inch(0.5mm~5.0mm)　 ASTM D374
Density(g/cc) 3.28 g/cc ASTM D792
Hardness 45±5 Shore 00 ASTM 2240
Recommended Operating Temperature(℃) -40 to 160℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant @ 1MHz 4.75 ASTM D150
Volume Resistivity ≥1.0X1012 Ohm-meter ASTM D257
Flame rating 94-V-0 UL94(E331100)
Thermal conductivity 4.0 W/m-K ASTM D5470
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
