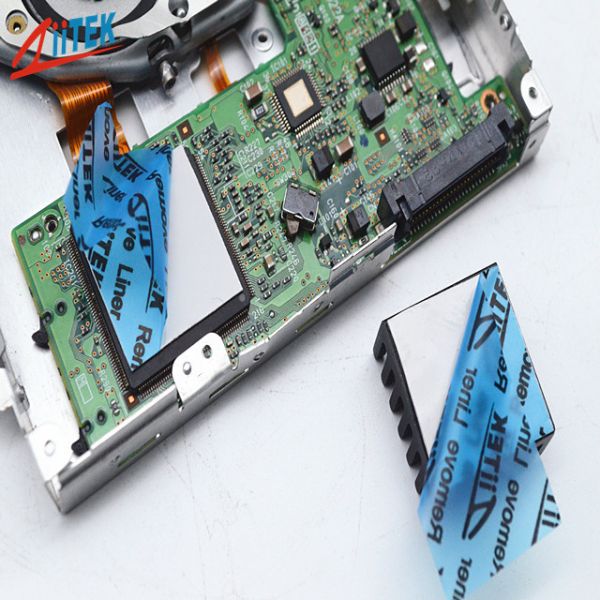

Thermal Conductive Pad Soft Compressible And Naturally Tacky Material For Heat Dissipation In High Speed Storage Drives
Thermal Conductive Pad Soft Compressible And Naturally Tacky Material For Heat Dissipation In High Speed Storage Drives
Thermal Conductive Pad Soft Compressible And Naturally Tacky Material For Heat Dissipation In High Speed Storage Drives
Thermal Conductive Pad Soft Compressible And Naturally Tacky Material For Heat Dissipation In High Speed Storage Drives
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-20-02S
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Thermal conductivity& Compostion :
2.0W/m-K
Prodcuts name :
Thermal Conductive Pad Soft Compressible And Naturally Tacky Material For Heat Dissipation In High Speed Storage Drives
Recommended Operating Temperature (℃) :
-40 to 200℃
Color :
Gray White
Hardness :
65/45 Shore 00
Payment Terms :
T/T
Density :
2.65 g/m³
Breakdown Voltage(V/mm) :
≥5500
Keywords :
Thermal conductive pad
Application :
For Heat Dissipation In High Speed Storage Drives
Description

Thermal Conductive Pad Soft Compressible And Naturally Tacky Material For Heat Dissipation In High Speed Storage Drives


Company Profile


Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic, Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

The TIF®100-20-02S use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features:


> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware


Typical Properties of TIF®100-20-02S Series
Property Value Test method
Color

Gray white

 Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.65 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
0.25~0.50 0.75~5.00
Hardness(Shore 00) 65 45 ASTM 2240
Recommended Operating Temperature (℃) -40 to 200 ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1Mhz 4.7 ASTM D150
Volume Resistivity(Ohm-cm) ＞1.0X1012 ASTM D257
Thermal Conductivity (W/m-K) 2.0 ASTM D5470
2.0 ISO22007
Fire rating V-0 UL 94 (E331100)

Product Specifications


Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Thermal Conductive Pad Soft Compressible And Naturally Tacky Material For Heat Dissipation In High Speed Storage Drives

Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated


Independent R&D team


Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.
