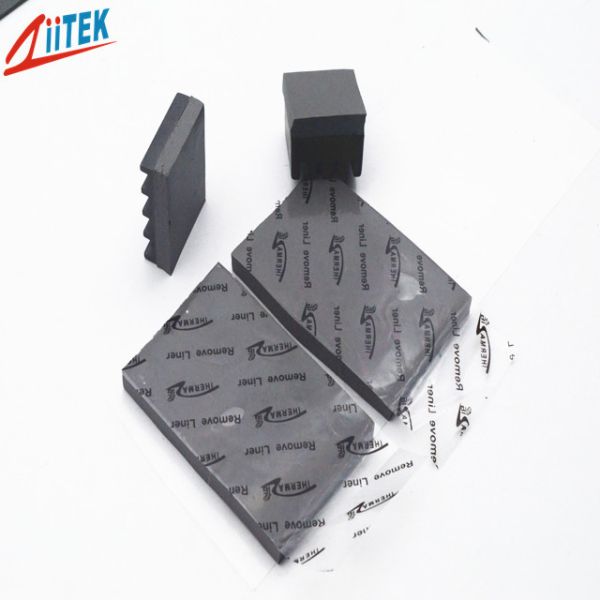

Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics
Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics
Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics
Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics
Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics
Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics
Specifications
Hardness :
65/35 Shore 00
Application :
For Heat Dissipation In Electronics
Color :
Dark Grey
Recommended Operating Temperature :
-40 to 200℃
Density :
2.55g/cm³
Keywords :
Thermal Conductive Pad
Brand Name :
ZIITEK
Model Number :
TIF100-20-11E
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Thickness :
1.0mmT
Thermal conductivity :
2.0W/m-K
Prodcuts name :
Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics
Payment Terms :
T/T
Description

Grey Thermal Conductive Pad Featuring 2W Thermal Conductivity For Heat Dissipation In Electronics


The TIF®100-20-11E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.


Features


> Good thermal conductive: 2 W/mK
> Self-adhesive without the need for additional surface adhesive
> Good softness and fillability
> Available in varies thickness
> Good insulation performance


Applications


> Cpu heat sinking
> High speed mass storage drives
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures


Typical Properties of TIF®100-20-11E Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.55 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
0.25~0.50 0.75~5.00
Hardness (Shore 00) 65 35 ASTM 2240
Recommended Operating Temperature (℃) -40 to 200 ******
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @ 1MHz 5.0 ASTM D150
Volume Resistivity (Ohm-meter) ＞1.0X1012 ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 2.0W/m-K ASTM D5470
2.0W/m-K ISO22007


Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.

Company profile


Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:


Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel


All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL


Ziitek Culture


Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
