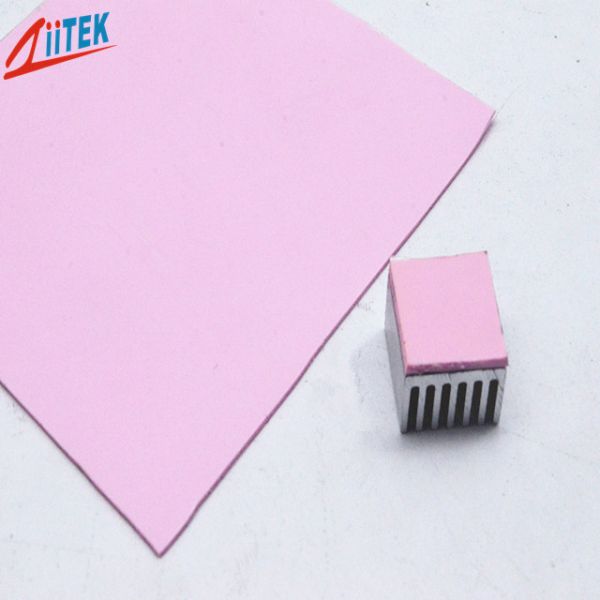

High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV
High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV
High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV
High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV
Specifications
Brand Name :
ZIITEK
Model Number :
TIF140-30-25E
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Payment Terms :
T/T
Product name :
High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV
Color :
Pink
Thickness :
1.0mmT
Dielectric Breakdown Voltage :
>5500 VAC
Thermal conductivity :
3.0W/m-K
Construction & Compostion :
Ceramic filled silicone elastomer
Keywords :
Silicone Thermal Conductive Pad
Application :
GPU CPU Chip Display Card Heat Transfer
Description

High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV

The TIF®140-30-25E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features:


> Good thermal conductive: 3.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF®140-30-25E Series
Property Value Test method
Color Pink *****
Construction &Compostion Ceramic filled silicone elastomer *****
Specific Gravity 3.0 g/cc ASTM D297
Hardness 35 Shore 00 ASTM 2240
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Continuos Use Temp -40 to 160℃ *****
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity 1.0X1012Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 3.0 W/m-K ASTM D5470
Product Specifications
Standard Thickness: 0.020" (0.5 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIFseries is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.

Ziitek Culture

Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
