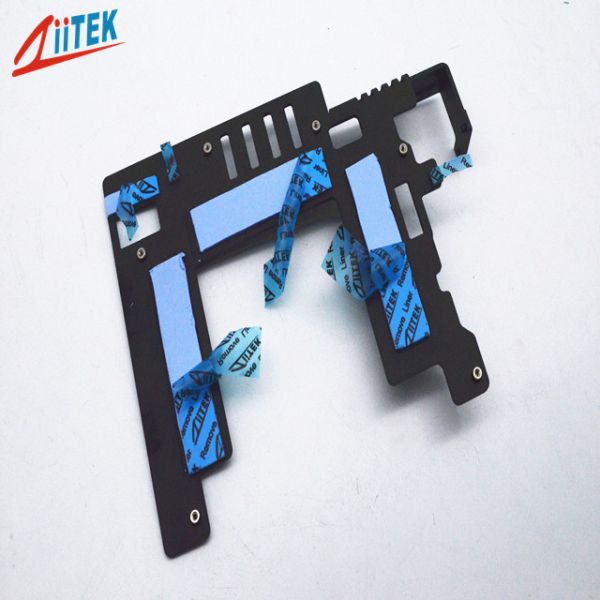

Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-30-05E
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Payment Terms :
T/T
Products name :
Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Thermal conductivity :
3.0W/m-K
Density :
3.0 g/cm³
Color :
Blue
Hardness(Shore 00) :
65/35
Recommended OperatingTemperature( °C) :
-40~200℃
Keywords :
Thermal Gap Pad
Application :
AI Servers AI Processors
Description

Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

The TIF®100-30-05E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.


Features:

> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications

> Easy release construction
> Electrically isolating
> High durability

Applications:

> LED Panel Light
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
Typical Properties of TIF®100-30-05E Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 35 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 3.0 ASTM D5470
3.0 ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1(Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
