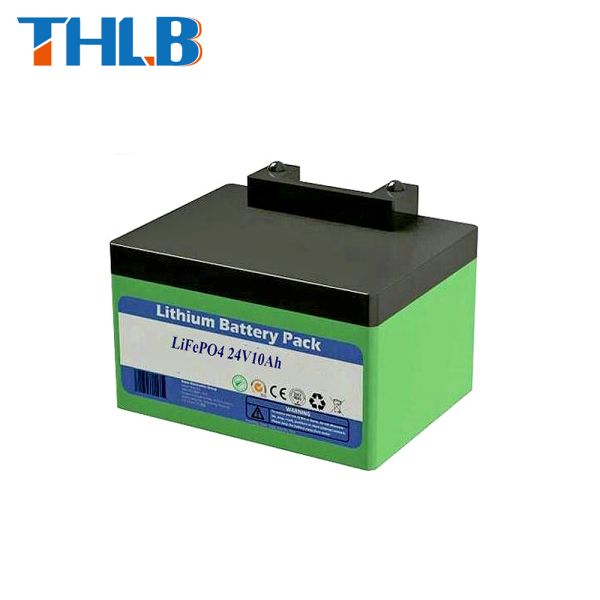

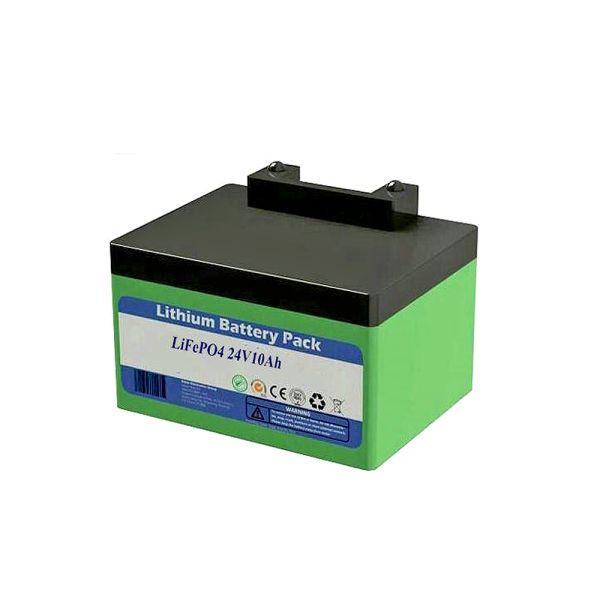

Customized 10Ah 24v Golf Cart Battery LiFePO4 24v Golf Buggy Battery

Specifications

Brand Name :

THLB

Model Number :

12.8V 22Ah

Place of Origin :

China

MOQ :

10 units

Price :

$85/units 10-999 units

Max Load Quantity(cells) :

Cycle Life :

1000 cycles

Application :

Boats, Electric Wheelchairs, Solar Energy Storage Systems, Electric Bicycles,UPS,power tools,aerospace

Operating Temperature(℃) :

-20-60

Cathode Materials :

LiFePO4

Capacity :

12.8V 22Ah

Charge Voltage :

14.4±0.1V

Charge current :

20A

Cycle life :

≥6000times 0.5C(80%DOD)

Internal Resistance :

≤40mΩ

Battery cell :

LiFePO4

Warranty :

3 Years

Features :

High Energy Density,Long Cycle Life etc

Cell Configuration: :

LiFePO4 26650 3.2V 3600mAh-4S6P

Packaging Details :

Standard Packaging

Delivery Time :

7-15 Working Days

Description

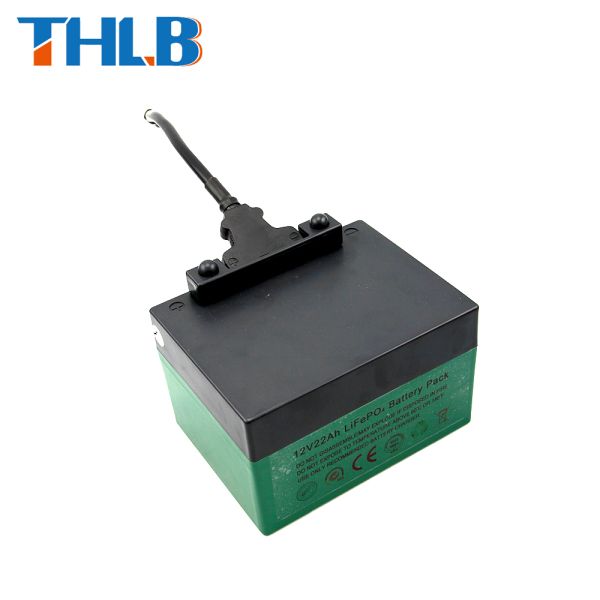

Internal Resistance ≤40mΩ 12.8V 22Ah LiFePO4 Battery Pack Rechargeable Electric Golf Trolley 1000 Cycles Long Cycle Life

Product Description

Specification

MAIN KIT INCLUDES
1 x 12V22Ah LiFePO4 Battery Module 1 x 4S-25A PCM 1 x Plastic Battery Case
Normal Voltage			12.8V
Normal Capacity			22Ah
Battery Energy			768Wh
Inner Resistance			< 40mΩ
Battery Cycle Life			2000 Times @100%DOD 6000 Times @80%DOD
Cell Configuration			LiFePO4 26650 3.2V 3600mAh-4S6P
Reference Battery Size			(260±1)(168±1)(212±1) mm
Reference Battery Weight			2.5±0.1 kg
Battery Encapsulation			Plastic Case
Charge Voltage			14.4V
Charge Mode			CC/CV
Normal Charge Current			<=20A
Normal Discharge Current			20A
Max. Continuous Output Current			20A
Max. Continuous Output Power			288W
Passive Protection Function			Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc
Operation Temperature Range			Charge: 0'C---45'C Discharge : -20'C---60'C
Battery Storage Temperature			-20'C---25'C
Individual Cell Approval			CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS

More Products We Produced Showing

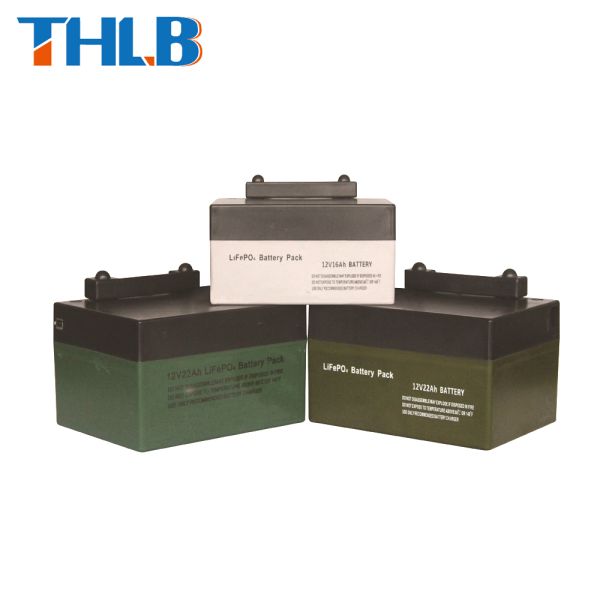

More Models of Energy Power Battery

Packing & Delivery

Company Profile

FAQ

Q1: Are you a factory or a trading company A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification. Q2: Can I have samples to test? And what is lead time for sample order? A2: Yes,we can supply samples,the lead time for samples is 7-10 days.and buyer pay for sample cost and shipping cost. Q3: Do you provide after-sales service? A3: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement. Q4 What is your company's advantage? A4: We only supply high level quality of lithium battery and we guarantee on-time shipment,we also provide excellent after sales service Q5: Do you accept OEM/ODM? A5: Yes,it is available. Q6: What information do you need to make a customized battery pack? A6: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need. Q7:Are your battery real capacity? A7:All of our battery cells with Grade A,100% new and real capacity. Q8: What kind of certificates do you have? A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3. Q9: What is your lead time for the mass production? A9: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
