LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
Specifications
Brand Name :
THLB
Model Number :
24V10Ah LiFePO4 Battery
Place of Origin :
China
MOQ :
10 pieces
Price :
$66/pieces 10-49 pieces
Max Load Quantity(cells) :
4
Cycle Life :
800 cycles
Application :
Boats, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts, Electric Bicycles/Scooters
Operating Temperature(℃) :
-20-60
Cathode Materials :
LiFePO4
Type :
LiFePO4
Voltage :
24V
Capacity :
10Ah
Category :
Rechargeable Batteries pack
Cell Configuration :
LiFePO4 18650 3.2V 1500mAh-8S7P
Cycle Characteristic :
2000 times
Working Temperature :
-20°C~60°C
Battery Weight :
2.5±0.2 kg
PCM :
YES
Color :
white, black
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description
Battery Weight 2.5 Kilograms 24V LiFePO4 Lithium Ion Battery Pack Cycle Life 800 Cycles Designed to Power Golf Trolley
Product Parameters
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery

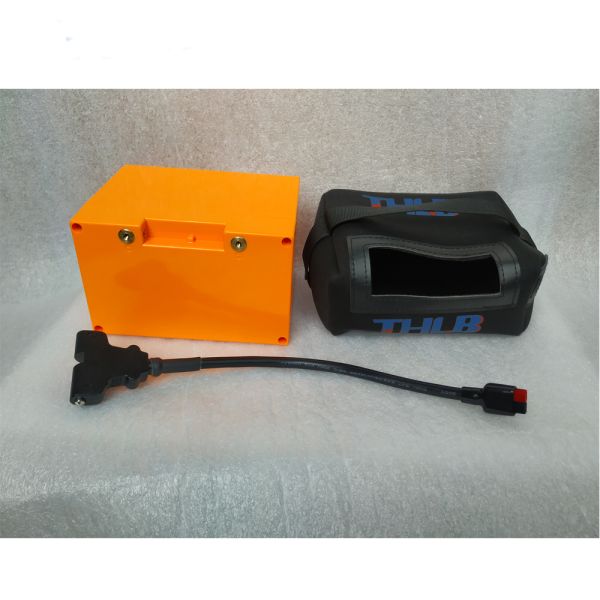

MAIN KIT INCLUDES
1 x 24V10Ah LiFePO4 Battery Module
1 x 8S-10A PCM
1 x Plastic Battery Case
2 x M8 Terminals
PRODUCT SPECIFICATION-Good servie with 2 years warranty LiFePO4 24V lithium battery
Normal Voltage
24V
Normal Capacity
10Ah
Battery Energy
240Wh
Inner Resistance
< 60mΩ
Battery Cycle Life
1500 Times @100%DOD
2000 Times @80%DOD
Cell Configuration
LiFePO4 18650 3.2V 1500mAh-8S7P
PCM
YES
Reference Battery Weight
2.5 kg
Battery Encapsulation
Plastic Case
Charge Voltage
28.8V
Charge Mode
CC/CV
Normal Charge Current
<=10A
Normal Discharge Current
10A
Max. Continuous Output Current
30A
Max. Continuous Output Power
720W
Passive Protection Function
Over charge protection; Over discharge protection; Over
current protection, etc
Operation Temperature Range
Charge: 0'C---45'C
Discharge : -20'C---60'C
Battery Storage Temperature
-20'C---25'C
Individual Cell Approval
CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
Our Company
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
Packing & Delivery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
FAQ

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days

B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days

B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in

B: We send cell specifications and best quotation to you for reference

C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly

D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
