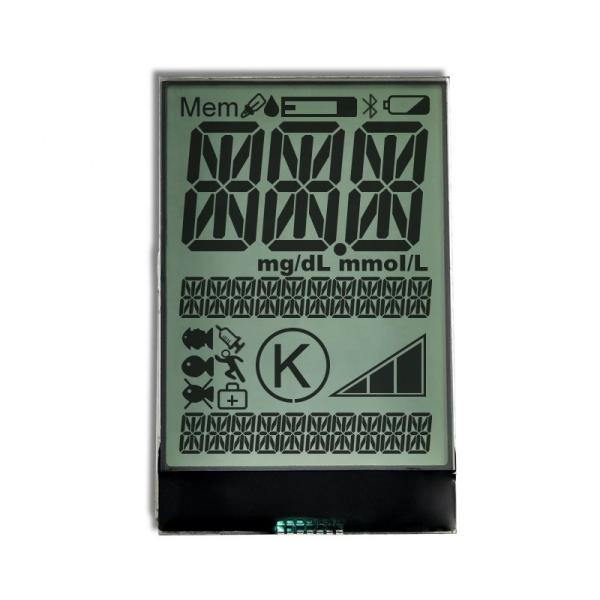

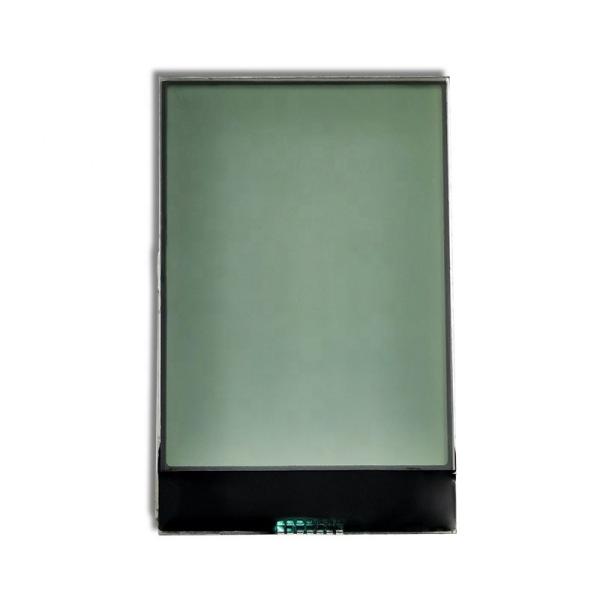

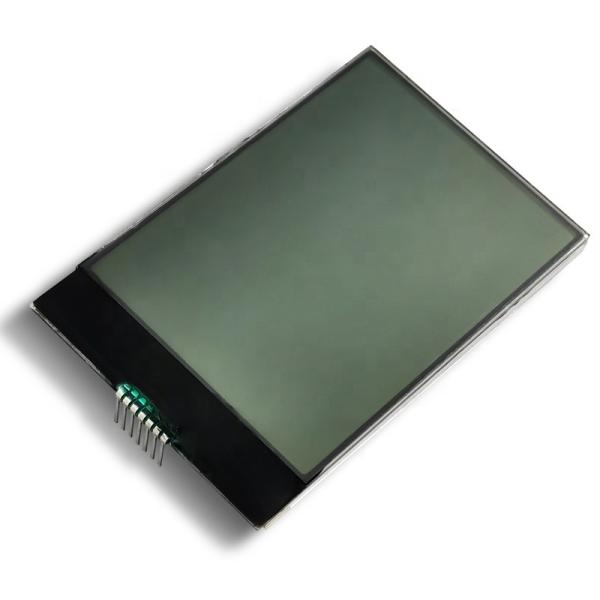

FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
Specifications
Place of Origin :
Guangdong, China
Model Number :
TSG100-0-C
Brand Name :
TSD
Packaging Details :
Segment LCD Display Monochrome Customized LCD Module FSTN LCD Module
Packed in the anti-static bag each, a certain quantity in one carton.
Supply Ability :
150000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Type :
Segment LCD
Display Size :
COG
Supplier Type :
Manufacturer
Display mode :
FSTN
Polarizer :
Transmissive/Posotive
Viewing Direction :
6 O'clcok
Drive IC :
IST3931
Operating temperature :
-20 to +70℃
Active Area :
34x47.5mm
connector :
COG/PIN
Driver Condition :
1/4 duty, 1/6bais
Port :
Shenzhen/Hong Kong
Description
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area

Our advantage:

1. More than 17 years experience, strong background in Monochrome LCD display design. 2. IATF16949 and ISO13485 certificated manufactury, provided all customized solutions. 3. Faster support in Front and After-sales services. Support customers from the product design. 4. Good English communication CSE team. Local sales and engineer team support in Europe.
Product Paramenters
Segment LCD Display Monochrome Customized LCD Module FSTN LCD Module
Item
Value
Type
FSTN
Model Number
TSG100-0-C
Polarizer
Transmissive/Positive
Outline Dimention
39.00x60.00x4.00mm
Viewing Area
36.00x49.50mm
Active Area
34x47.50mm
Driver IC
IST3931
Operating Voltage
VDD=3.0V, VLCD=5.0V
Connector
COG/PIN
Drive Method
1/4 duty, 1/6bias
Operating temperature
-20 to +70℃
Storage temperature
-30 ℃ +85 ℃
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
Customized Service
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN

2.Display form: LCD panel/COB/COG/COF

3.Polarizer: Transflective, Transmissive, Reflective

4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others

5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others

6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
Applications
Our products can be widely used in telecommunication devices, consumer products, telecommunication devices, technical equipment, office automation, home appliances, automobile, it products, medical equipment and other fields.
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
If you don't find the product you want, click here to contact us for more product information!
About TSD
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
TEAM SOURCE DISPLAY ( TSD ) was established in 2004. TSD business scope covers LCD / LCD Module development, single-chip production and materials processing.
We have developed thousands of Monochrome LCD display products for Automotive products, consumer electronics, medical equipment and other applications. You can choose from our extensive range, including TN LCD, HTN LCD, STN LCD, FSTN LCD, DFSTN LCD, COG LCD, COB LCD and TFT LCD models. We have successfully handled projects for a number of buyers at home and abroad, and put these resources to work to efficiently meet your needs as well.
TSD follow a people-oriented, quality and customer-first approach in all of our dealings, that is why we maintain a clean environment which is conducive for working and take the environment into account during the manufacturing process. Contact us today and we're happy to offer you reliable LCD solutions.
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
Our Team
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
LCM Production Processing
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
Certificates & Exhibitions
We have RoHS, ISO, Reach, IATF and other certificates to ensure the quality of our products.
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided!
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
FAQ
Q: What monochrome lcd display does TSD have? A: We could make all kinds of design basing on your requirements. Mode: TN, HTN, STN, FSTN, DFSTN, VA Structure: LCD Panel, COB, COG Connection: Zebra, Pin, FPC, Rubber Backlight: All kinds of design Q: How can i find the right product? A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization. Q: How to customize the product? A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production Q: Do you accept sample order or small quantity order? A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ) Q: What are the payment terms? A: We usually accept T/T, Paypal, other terms to be negotiated. Q: What’s the lead time? A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
FSTN Mode Custom Segment Lcd DisplayCOG Connector 34x47.5mm Active Area
