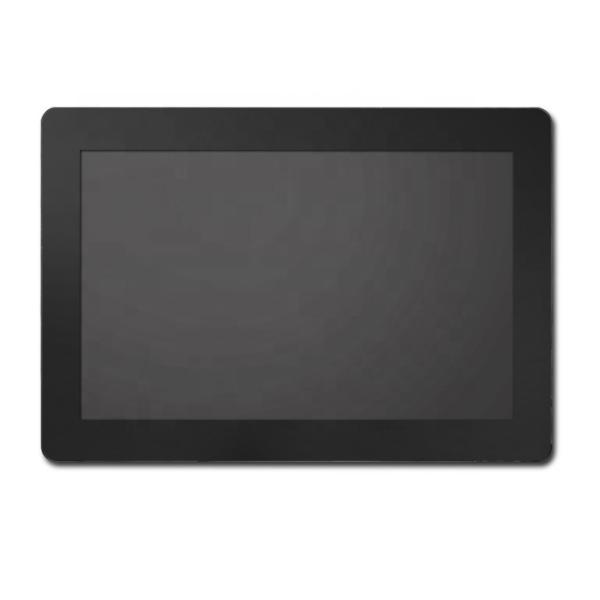

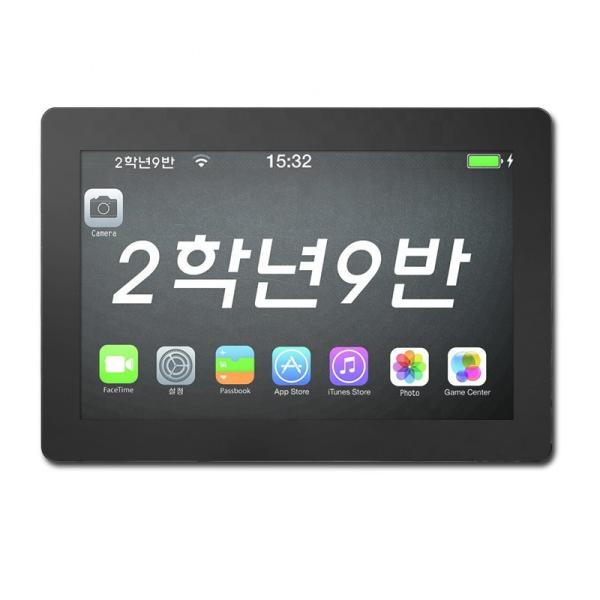

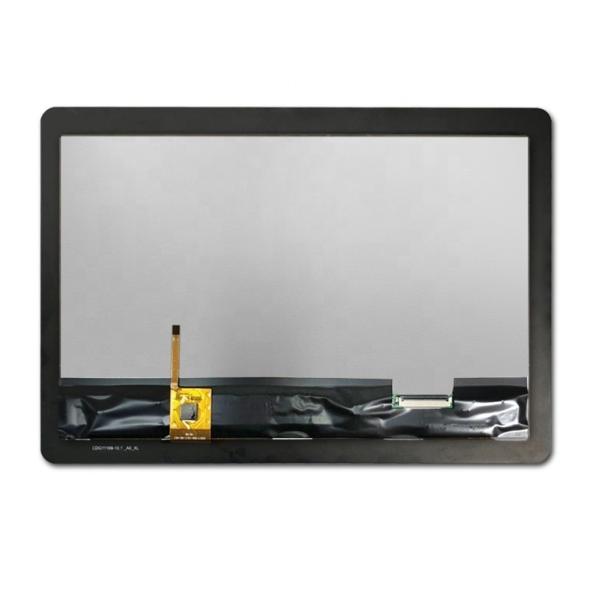

10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
HD 10.1 tft lcd touch screen display with converter board
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Type :
TFT, TFT LCD
Display Size :
10.1inch
Resolution :
1280x800
Backlight :
36LEDs
Warranty :
1 Year
Viewing direction :
All O'clock
Interface Type :
LVDS
Outline Dimension :
255x178x9.1mm
TP/Lens :
CTP
Active Area :
216.96x135.6mm
Brightness :
800 cd/m2
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
HD 10.1 tft lcd touch screen display with converter board
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
Item
Specification
Display Mode
10.1''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST101WXBN-17C
Resolution
1280x(RGB)x800
Outline Size
255x178x9.1mm
Active Area(WxH)
216.96x135.6mm
View Direction
All O'clock
Pixel Pitch
0.1695x0.1695
Interface
LVDS
Backlight
36LEDs, 360mA, 12.8V
Surface Lumiannce
800nits
TP/Lens
CTP
Logic Voltage
VDD=3.3V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
Application
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8",3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
Packing & Delivery
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
Customer Photos
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
10.1inch Hd Touch Screen , 36LEDs Touch Tft Display 1280x800 Resolution
Related Products
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
