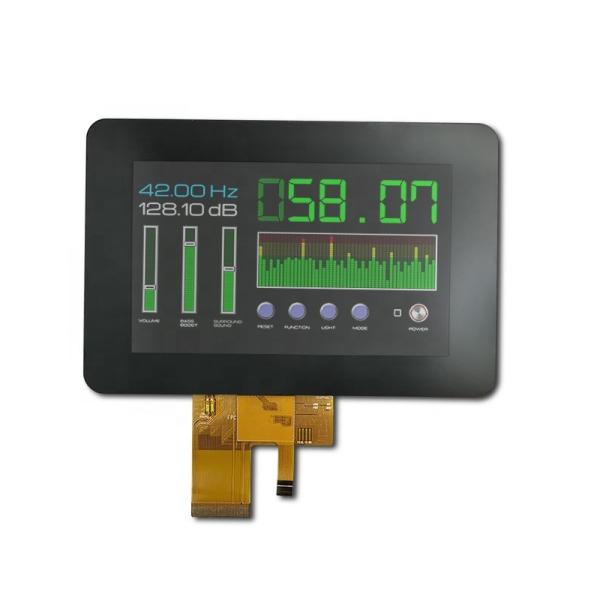

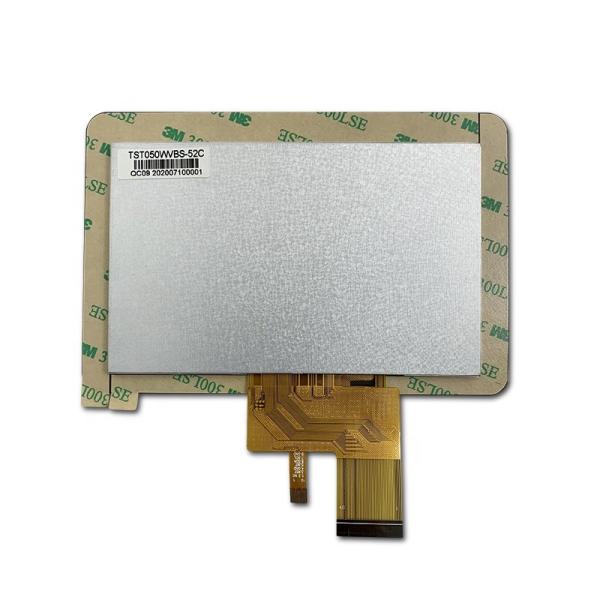

RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST050WVBS-52C
Brand Name :
TSD
Packaging Details :
800x480 5.0inch TFT LCD Modules All O'clock RGB Interface with Capacitive Touch Panel
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Display Size :
5.0inch
Type :
TFT LCD
Resolution :
800x480
Active Area :
108.00x64.80mm
Interface Type :
RGB
Viewing direction :
All O'clock
Driver IC :
ST7262-G4-E
Brightness :
450 Cd/m2
Backlight :
16LEDs
TP/Lens :
With CTP(FT5336)
Warranty :
12 Months
Port :
Shenzhen/Hong Kong
Description
800x480 5.0inch TFT LCD Modules All O'clock RGB Interface with Capacitive Touch Panel
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
Item
Specification
Display Mode
5.0''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST050WVBS-52C
Resolution
800x(RGB)x480
Outline Size
140.70x93.83x4.68mm
Active Area
108.00x64.80mm
View Direction
All O'clock
Color Depth
16.7M
Interface
RGB
Driver IC
ST7262-G4-E
Backlight
18LEDs, 60mA, 18.6V
Surface Lumiannce
450nits
Operaring Voltage
3.3V
TP/Lens
With CTP(FT5336)
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
Application
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch,
including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Standard and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
Packing & Delivery
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
Customer Photos
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots
Related Products
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots

TST040HDBY-06C

720x720 4.0inch TFT LCD Square Touch Screen MIPI Interface IPS Display 330nits
RGB 5 Inch Tft Lcd Display , Tft Capacitive Touchscreen 800x480 Dots

TST050WVHI-12C

800x480 TN 5.0 inch LCD TFT Display Screen With CTP(FT5336) 12 O'clock 12LEDs
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
