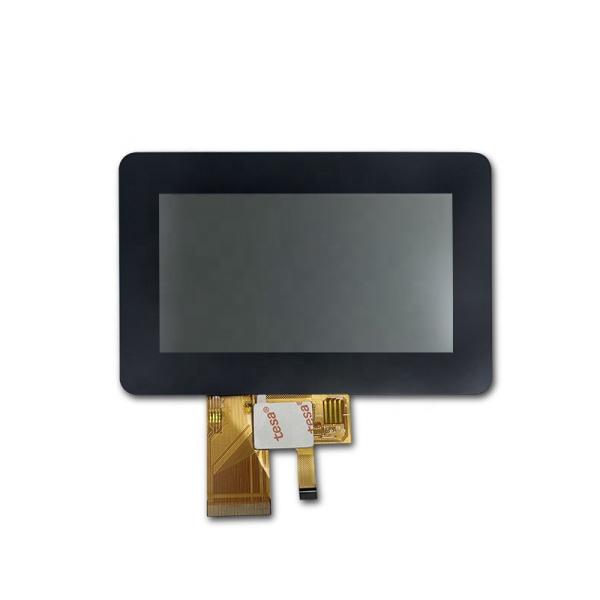

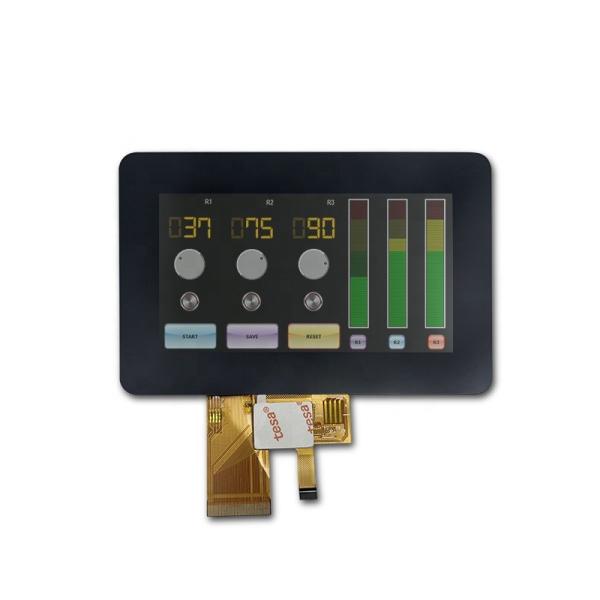

4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST043WQHS-101C
Brand Name :
TSD
Packaging Details :
800x480 tft lcd display 7 inch lcd screen
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Type :
IPS display, TFT LCD
Display Size :
4.3 inch
Supplier Type :
Manufacturer
Active Area :
95.04x53.86
Interface Type :
RGB 24bit
Resolution :
480x272
Viewing direction :
ALL
Outline Dimension :
123.04x84.46x4.78mm
Driver IC :
ST7283
Surface Treatment :
Anti-glare
Brightness :
850 Cd/m2
Backlight :
16LEDs, 40mA, 24.2V
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
4.3 inch touch panel tft lcd 480x272 dots small lcd touch screen
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
Item
Specification
Display Mode
4.3''/α-Si TFT/TN/
Transmissive/Normally Black
Part NO.
TST043WQHS-101C
Resolution
480x(RGB)x272
Outline Size
123.04x84.46x4.78mm
Active Area
95.04x53.86mm
View Direction
ALL
Color Depth
16.7M
Interface
RGB-24bit
Backlight
16LEDs, 40mA, 24.2V
Surface Lumiannce
850nits
Surface Treatment
Anti-glare
Operating Voltage
3.3V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
Application
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
Packing & Delivery
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
Customer Photos
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283
Related Products
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283

TST043WQHS-67
Good Quality 4.3iinch IPS Display LCD ST7272 Driver IC 480x272 High Brightness Screen
4.3 Inch TFT LCD Touch Screen Display 480x272 Dots Anti Glare ST7283

TST050WVHI-12
5.0'' Color 800x480 12 O'clock LCD Module Display 12LEDs with RGB Interface Anti-glare
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
