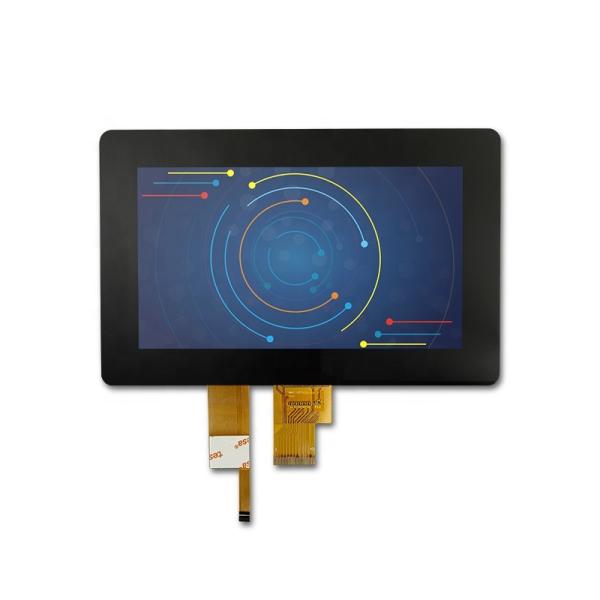

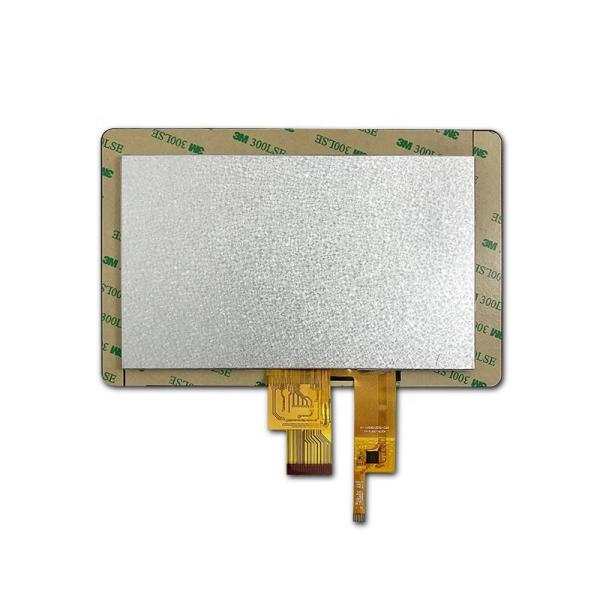

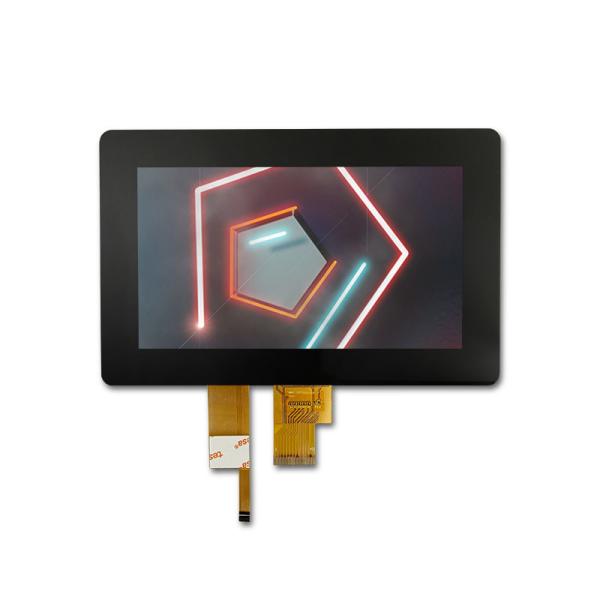

1024x600 7 Inch Tft Lcd Display , CTP Touchscreen Display Module 30LEDs

Specifications

Place of Origin :

Guangdong, China

Brand Name :

TSD

Packaging Details :

7 inch 1024x600 Color TFT LCD Touch Display LCD Screen Module with CTP
Packed in anti-static bag each,a certain quantity in one carton

Supply Ability :

10000 Piece/Pieces per Month

Price :

Negotiable

Type :

TFT, TFT LCD

Display Size :

7.0inch

Supplier Type :

Manufacturer

Resolution :

1024x600

Interface Type :

LVDS

Active Area :

154.21x85.92mm

Outline Dimension :

164.9x100x3.5mm

TP/Lens :

with CTP (FT5446DQS)

Brightness :

800 Cd/m2

Viewing direction :

All O'clock

Backlight :

30LEDs

Warranty :

12 Months

Port :

Shenzhen/Hong Kong

MOQ :

Negotiable

Description

7 inch 1024x600 Color TFT LCD Touch Display LCD Screen Module with CTP

Item	Specification
Display Mode	7.0''/α-Si TFT/IPS/ Transmissive/Normally Black
Part NO.	TST070WSBE-66C
Resolution	1024x(RGB)x600
Outline Size	190.08x121.92x5.38mm
Active Area(WxH)	154.21(H)x85.92(V)mm
View Direction	All O'clock
Pixel Pitch	0.1506x0.1432
Interface	LVDS
Driver IC	EK79001+EK73215
Backlight	30LEDs, 200mA, 17V
Surface Lumiannce	800nits
TP/Lens	with CTP (FT5446DQS)
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

About us

Who is TSD?

TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.

1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.

Application

What TSD has?

1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8",
3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...

Certifications

Packing & Delivery

Customer Photos

FAQ

Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
