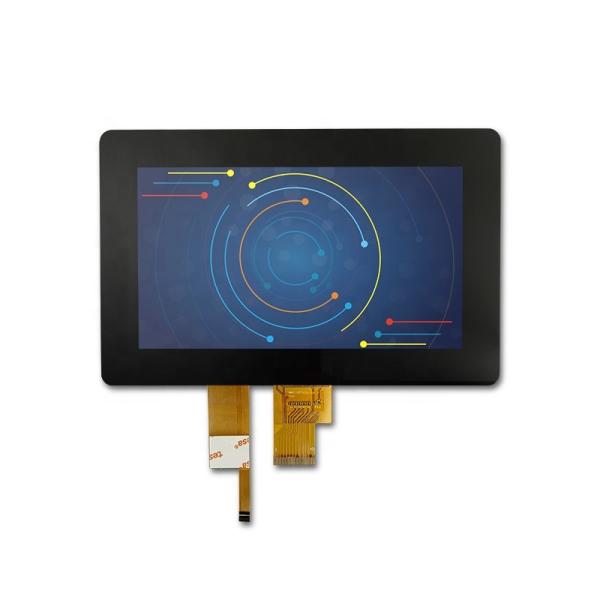

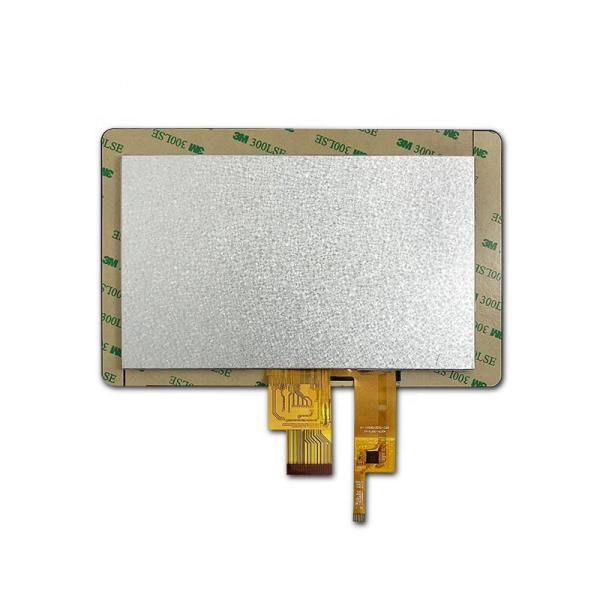

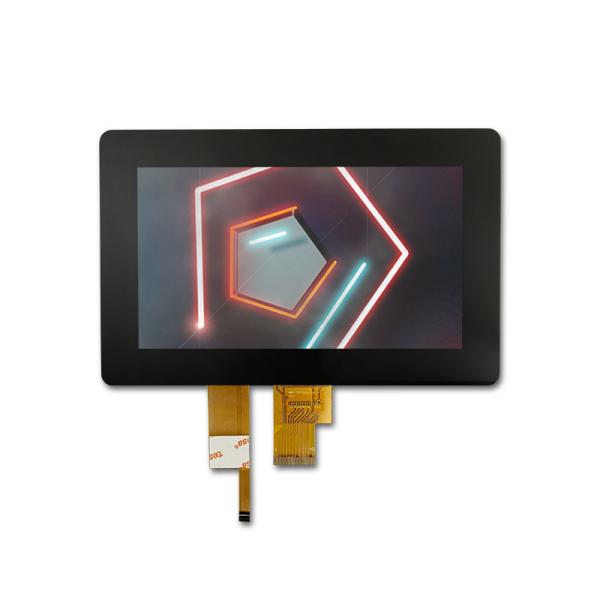

800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
Full viewing angle 7.0-inch 1024*600 IPS TFT LCD Display LVDS interface with capacitive touch panel
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
10000 Piece/Pieces per Month
Price :
Negotiable
Type :
TFT, TFT LCD
Display Size :
7.0inch
Supplier Type :
Manufacturer
Resolution :
1024x600
Interface Type :
LVDS
Brightness :
800 Cd/m2
Outline Dimension :
164.9x100x3.5mm
Active Area :
154.21x85.92mm
Viewing direction :
All O'clock
TP/Lens :
with CTP (FT5446DQS)
Backlight :
30LEDs
Warranty :
12 Months
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
Full viewing angle 7.0-inch 1024*600 IPS TFT LCD Display LVDS interface with capacitive touch panel
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
Item
Specification
Display Mode
7.0''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST070WSBE-66C
Resolution
1024x(RGB)x600
Outline Size
190.08x121.92x5.38mm
Active Area(WxH)
154.21(H)x85.92(V)mm
View Direction
All O'clock
Pixel Pitch
0.1506x0.1432
Interface
LVDS
Driver IC
EK79001+EK73215
Backlight
30LEDs, 200mA, 17V
Surface Lumiannce
800nits
TP/Lens
with CTP (FT5446DQS)
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
Application
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8",
3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...

Certifications
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
Packing & Delivery
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
Customer Photos
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
800nits TFT LCD Touch Screen Display , 7.0inch Tft Capacitive Touchscreen LVDS
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
