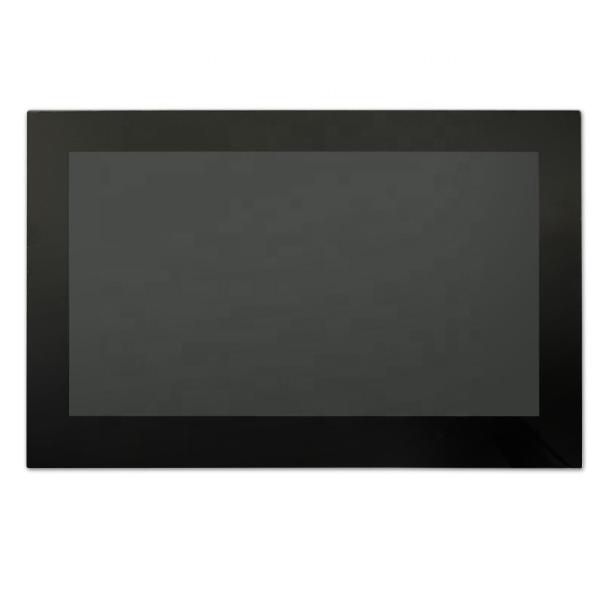

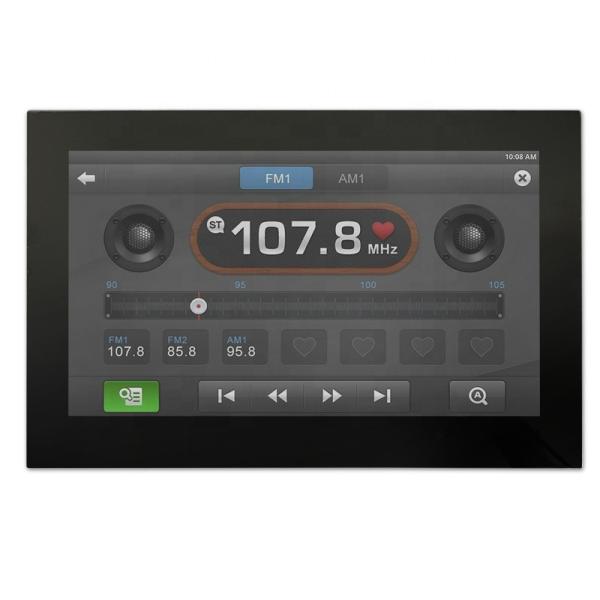

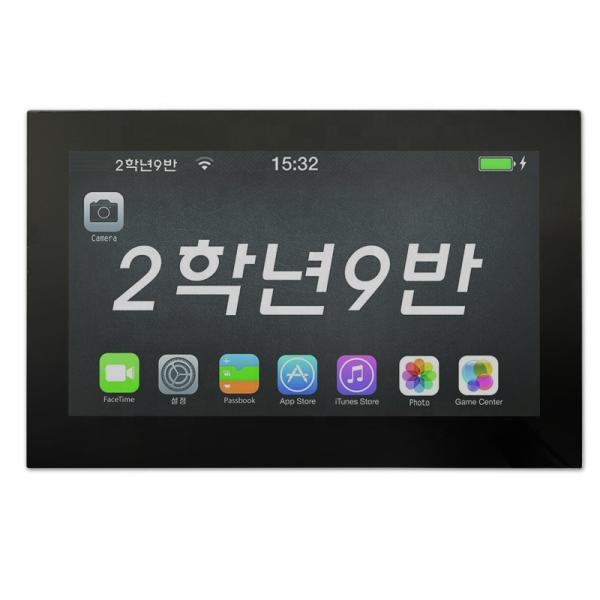

IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST101WSBH-43C
Brand Name :
TSD
Packaging Details :
10.1 inch tft lcd 1024x600 ips panel 750 brightness touch screen
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Display Size :
10.1inch
Type :
TFT LCD
Resolution :
1024x600
Interface Type :
TTL(RGB-24bit)
Viewing direction :
All O'clock
Backlight :
42LEDs
Outline Dimension :
263.76x170.71x7.83mm
Driver IC :
HX8282+HX8696
Active Area :
222.72x125.28mm
TP/Lens :
CTP
Brightness :
750 cd/m2
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
10.1 inch tft lcd 1024x600 ips panel 750 brightness touch screen
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
Item
Specification
Display Mode
10.1''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST101WSBH-43C
Resolution
1024x(RGB)x600
Outline Size
263.76x170.71x7.83mm
Active Area(WxH)
222.72x125.28mm
View Direction
All O'clock
Pixel Pitch
0.2175x0.2088
Interface
TTL(RGB-24bit)
Backlight
42LEDs, 280mA, 18V
Surface Lumiannce
750nits
Driver IC
HX8282+HX8696
TP/Lens
CTP
Operating Voltage
3.3V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
Application
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8",3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
Packing & Delivery
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
Customer Photos
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
IPS TFT LCD Touch Screen Display 10.1in Size 1024x600 Resolution 750 Brightness
Related Products
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
