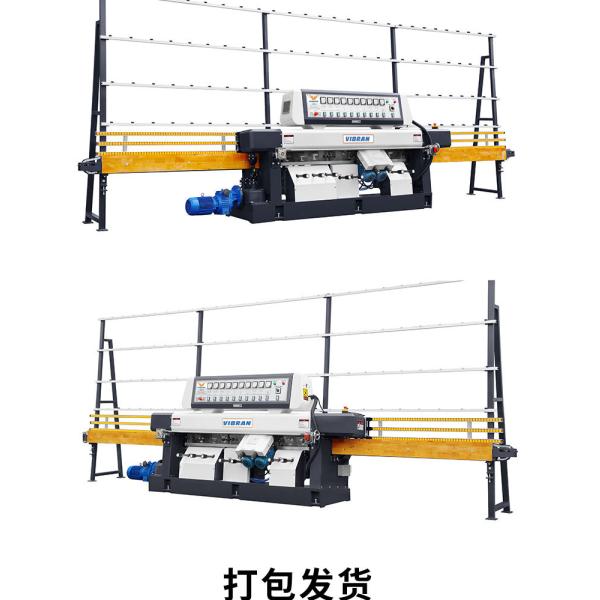

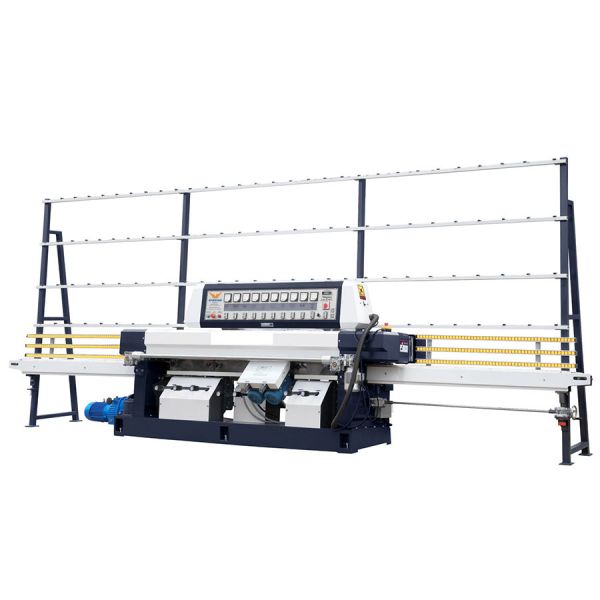

Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine
Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine
Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine
Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine
Specifications
Brand Name :
Vibran
Model Number :
9325
Place of Origin :
CHINA
MOQ :
1 set
Price :
11000
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
50sets per month
Delivery Time :
60 days
Packaging Details :
containers
Product Name :
9 Motors Straight Line Glass Edging Machine
Application :
Building Material Shops, Manufacturing Plant,
Voltage :
380V 50Hz
Machine dimension :
7400*100*2500mm
After-sales service provided :
Field maintenance and repair service
Condition :
New
Weight :
according to the size
Power(w) :
19.5kw
Glass thickness :
3~19m
Warranty :
1 Year
Usage :
glass edge grinding
Color :
customized
Description
Straight Line Glass Edging Machine - 9 Motors Grinding Head Linear Polishing Machine
Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine Straight Line Glass Edging Machine 9 Motors Grinding Head Linear Polishing Machine
Machine Application

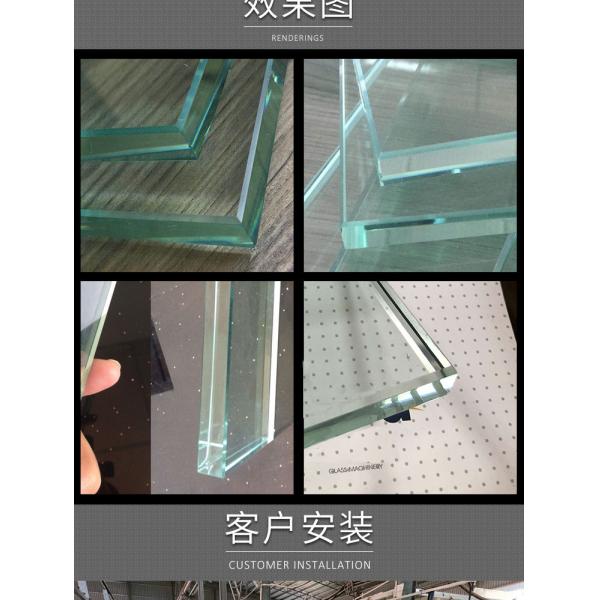

This straight line glass edging machine is designed for grinding and polishing the bottom edge of flat glass, including arris grinding. It efficiently processes glass of various sizes and thicknesses, completing rough grinding, fine grinding, and polishing in a single operation.

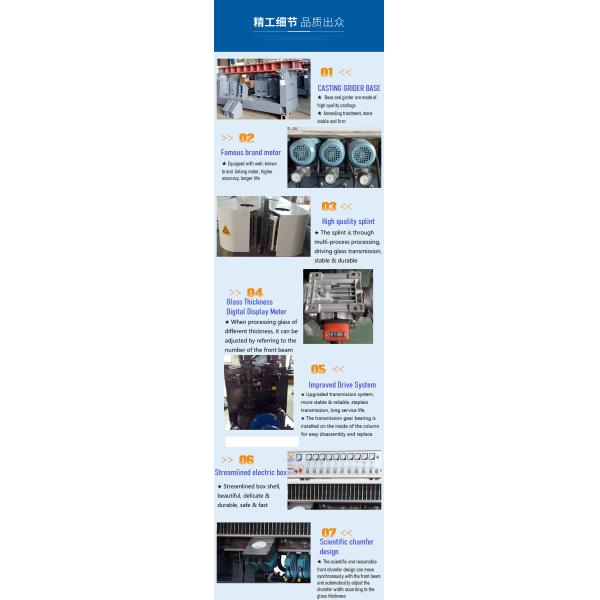

Machine Structure
The machine consists of four main components:
  • Mechanical parts
  • Electrical cabinet
  • Glass support rack
  • Input/output conveyor system
Export Configuration Details
  • Voltage: 3 phase 380V 50HZ
  • Thickness adjustment: Hand-cranked mechanism with chain conveyor at inlet/outlet ends and iron square tube glass support frame
  • Grinding plate: High quality solid rubber plate
  • Additional features: Manual oil pump and stainless steel decorative rod
  • Water system: Stainless steel floor water tank
Technical Specifications
Specification Detail
Model ZM9325
Feeding speed 0.7~7m/min
Minimum glass size 50mm × 50mm
Glass thickness range 3mm~25mm
Power 19.75kw
Overall dimensions 7000mm × 1000mm × 2500mm
Machine weight 3000kg
Max chamfer grinding 2mm
Max bottom grinding 3mm
Power motor Jinlong/Xingdnogya/Mingliang
Voltage 380V 50HZ (customizable)
