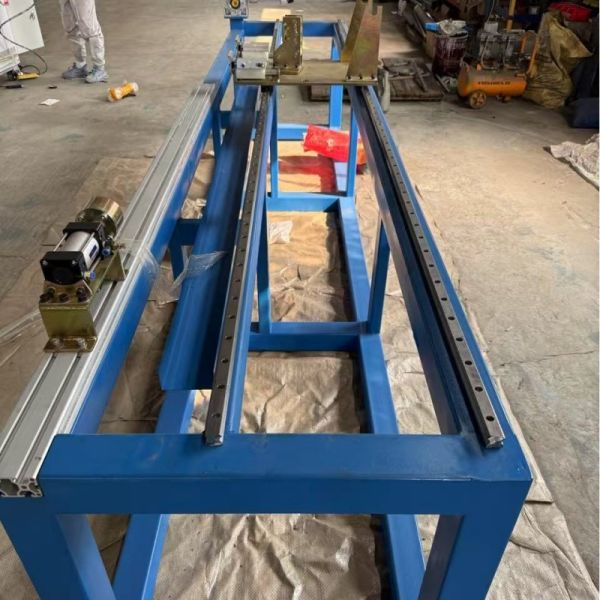

Automatic Rope Winding And Roller Track Cleaning Integrated Machine
Automatic Rope Winding And Roller Track Cleaning Integrated Machine
Specifications
Brand Name :
VIBRAN
Model Number :
LV-RWM
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD 8,800.00
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10 SETS
Delivery Time :
150 DAYS
Framematerial :
High-Quality Steel
Productname :
Automatic Rope Winding and Roller Track Cleaning Integrated Machine
Safetyfeatures :
Emergency Stop, Overheat Protection
Maxglasssize :
2500 x 3600 mm
Minglassthickness :
3 mm
Application :
Automotive, Architectural, Furniture Glass Tempering
Productioncapacity :
Up to 2000 sqm/day
Controlsystem :
PLC Touch Screen Control
Powersupply :
380V, 50Hz, 3 Phase
Installationtype :
Floor Mounted
Coolingmethod :
High-Pressure Air Quenching
Heatingmethod :
Electric Infrared Heating
Machinetype :
Fully Automatic / Semi Automatic / Manual
Temperingtemperaturerange :
600°C - 700°C
Maxglassthickness :
25 mm
Description
Automatic Aramid Rope Winding & Roller Track Cleaning Integrated Machine
This advanced integrated system combines automated rope winding and roller track cleaning functions into a single, efficient solution. The self-developed operating program integrates premium electrical components including touch screens, Programmable Logic Controller (PLC), inverters, motors, reducers, and cylinders to deliver exceptional performance and user convenience.
Rope Winding Mode
Engineered to enhance aramid rope durability and flatness while minimizing tempered glass wind marks.
Key Features:
  • Drive end roller shaft fixed by chuck with pneumatic center fixation at driven end
  • Adjustable telescopic speed for rapid roller replacement
  • Center frame adjusts front-rear distance (2-3 meter range)
  • Touch screen adjustable spacing from 8mm to 50mm
  • Single-cycle forward operation with reverse operation for dual roller winding
  • Integrated pressing device ensures uniform rope-roller contact
  • Significantly improves quality, efficiency, and reduces labor intensity
Roller Track Cleaning Mode
Designed to create smoother ceramic roller tracks and reduce pitting on tempered glass surfaces.
Key Features:
  • Custom-fit sandpaper frames for precise roller track diameter matching
  • Automated expansion/contraction via double-rod adjustable-speed cylinder
  • Easy sandpaper replacement and multiple mode switching
  • Wear-resistant nylon arc-shaped groove bracket for effortless roller replacement
  • 2-3 meter adjustable range accommodates multiple tempering furnace setups
  • Eliminates uneven surface, grinding inconsistencies, and low efficiency of manual methods
Technical Specifications
Parameter Description Specifications
Processed Roller Track Length Range 2400 - 3300mm
Processed Roller Track Diameter Range Ø35 - Ø120mm
Ceramic Roller Track Cleaning Speed 80s - 130s
Rope Winding Speed 70s - 100s (except when fully wound)
Rope Winding Spacing 8 - 50mm
Total Power Consumption 2KW (subject to specific design)
Power Supply 220V 50Hz
Machine Weight Approximately 600KG (subject to specific design)
Overall Dimensions Approximately: 3700 * 780 * 900mm (L * W * H)
