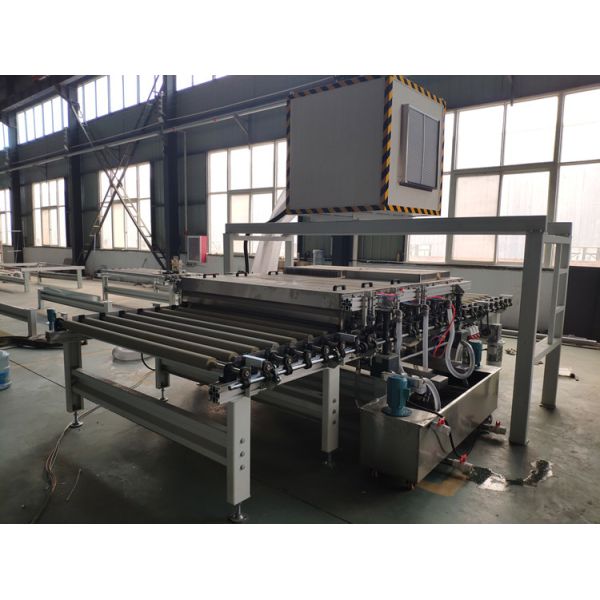

Customized 40kw Glass Washing And Drying Machine 2500mm 3000mm 3300mm Width
Customized 40kw Glass Washing And Drying Machine 2500mm 3000mm 3300mm Width
Specifications
Brand Name :
Vibran
Model Number :
2500
Place of Origin :
CHINA
MOQ :
1 set
Price :
22000
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
50sets per month
Delivery Time :
90 days
Packaging Details :
containers
Product Name :
Horizontal Glass Washing Machine
Application :
Building Material Shops, Manufacturing Plant,
Voltage :
380V 50Hz
Machine dimension :
5850mm*(width)3000mm*(height)3500mm
After-sales service provided :
Field maintenance and repair service
Condition :
New
Weight :
according to the size
Power(w) :
40kw
Glass thickness :
3~19mm
Warranty :
1 Year
Usage :
glass washing
Color :
customized
Description
QX2500 Glass Washing & Drying Machine
Machine Features
  • Gear-driven main drive with inverter speed control and digital display
  • Brush roller drive in washing section powered by separate upper and lower motors with independent belts
  • Frequency conversion for smooth speed adjustment and extended service life
  • Independent air cylinder system for precise glass handling
  • Aluminum alloy assembled structure - durable, energy-efficient (70% energy savings)
  • Powder-coated or high-quality oil-painted sheet metal surfaces
  • Φ75mm vulcanized rubber rollers with 304 stainless steel shafts (acid-resistant)
  • Waterproof, wear-resistant bearing seats throughout machine
  • 304 stainless steel construction for all cleaning section and water-contact parts
  • Three pairs of φ160mm brushes (safe for LOW-E and coated glass surfaces)
  • 300mm lift capability for cleaning section and air drying section
  • Dual air knife system with heating for superior drying performance
  • Filtered air intake with noise reduction measures for quiet operation
  • Removable water tanks for easy cleaning and maintenance
  • Touch screen intelligent display for simple operation
  • Ideal for integration with glass edging machines to reduce labor requirements
Available Sizes
Model Width
VB-QX2500 2500mm
VB-QX3000 3000mm
VB-QX3300 3300mm
Key Benefits
  • Durable construction - Permanent service life with aluminum alloy frame
  • Precision cleaning - Safe for delicate glass surfaces including LOW-E and coated glass
  • Energy efficient - Saves 70% energy compared to conventional models
  • Easy maintenance - Removable components and lift mechanism simplify cleaning
  • Customized 40kw Glass Washing And Drying Machine 2500mm 3000mm 3300mm Width
