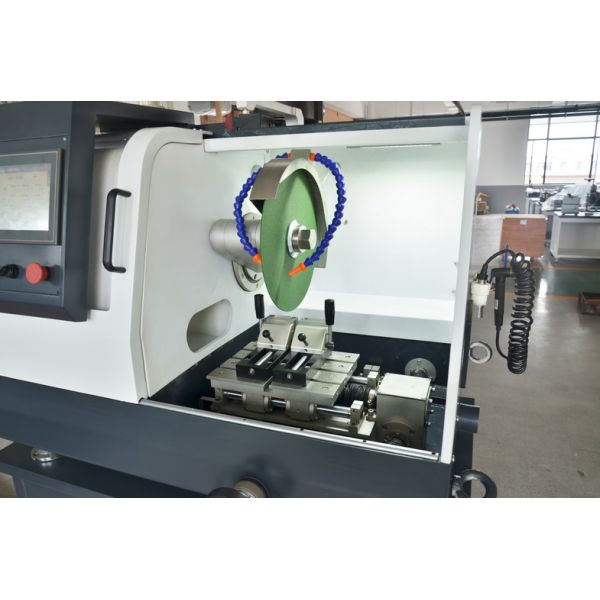

Automatic Precision Cutting Machine AC-100C with Explosion-proof fog free window
Automatic Precision Cutting Machine AC-100C with Explosion-proof fog free window
Specifications
safety lock :
firmly closed during operation to ensure safety
cutting methods :
enabling multi-axis linkage cutting, continuous thin slice cutting
water tank :
filtered circulation water tank for easy maintenance
Brand Name :
iqualitrol
Model Number :
AC-100C
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets/Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Pallet
observation window :
Large explosion-proof transparent observation window, LED lighting, and automatic de-fogging system
Chamber Cleaning :
by independent high-pressure wash gun for convenient cleaning
laser alignment :
for precise sample cutting positioning, more durable as it is water-free
Description

Automatic Precision Metallographic

Cutting Machine AC-100C with Explosion-proof fog free window

Main Features:

1, Uses iqualitrol self-developed Electric components, with core parts were imported to ensure product quality;

2, 10-inch industrial touchscreen controller, with automatic and precise control in X, Y, Z directions, joystick positioning for easier operation;

3, Support manual and automatic cutting, flexible feeding methods, automatic cutting supports continuous, reciprocating, and pulse cutting modes, allowing different cutting modes based on material characteristics for fast cutting results;

4, Supports various cutting methods, enabling multi-axis linkage cutting, continuous thin slice cutting, and other functions;

5, Openings on both ends, suitable for cutting long-strip samples, making cutting positions more flexible;

6, Large explosion-proof transparent observation window, LED lighting, and automatic de-fogging system to increase brightness and clarity inside the workspace;

7, External laser alignment for precise sample cutting positioning, more durable as it is water-free;

8, Sliding door opens and closes, making sample loading convenient;

9, Equipped with a safety electric lock that remains firmly closed during operation to ensure safety;

10, Mobile filtered circulation water tank for easy maintenance, can be placed directly in the cabinet to save space;

11, Independent high-pressure wash gun for convenient cleaning of the cutting chamber.

Scope of Application:

Suitable for various samples including ferrous and non-ferrous metals, heat-treated parts, forged parts, semiconductors, crystals, ceramics, and rocks.

Technical Specification:

Model AC-100C
Axis Speed 500-3000r/min
Motor Power 4kW
Feed speed 0.1~100mm/min
Feed Motor servo motor
Cutting Disc Φ350*2.5*32mm
Working Table (X*Y) 310*233mm, 10mm T-slot
Y Axis Travel 188mm
X Axis Travel 120mm
Z Axis Travel 125mm, chop cutting
Cut Capacity

For cylinder sample, max Φ100mm

For Rectangle sample, max 100*100mm
Clamp Opening Quick clamp, opening 105mm, jaw height 60mm
Power Supply AC380V, 50Hz, 3ph, 5-wire
Dimension 1205*900*1750mm
Weight About 1000kg
Water Tank 80L
pump flow 67L/min
Tank dimension 610*550*590mm
Tank weight 60kg
