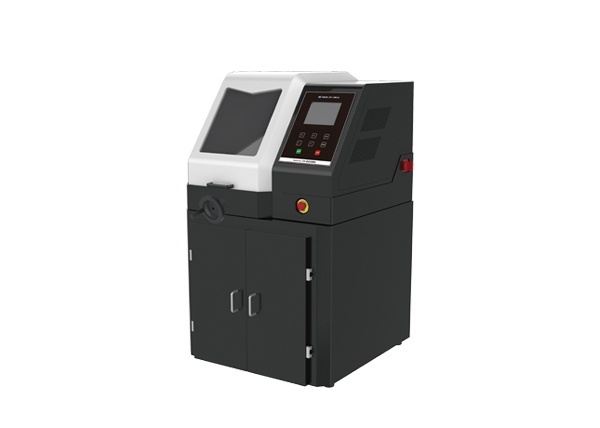

Floor Standing Versatile Automatic Abrasive Cutter AICUT-300
Floor Standing Versatile Automatic Abrasive Cutter AICUT-300
Specifications
Brand Name :
iqualitrol
Model Number :
AICUT-300
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
10 working days
Packaging Details :
Plywood box
water cooling :
Mobile plastic recirculation coolant tank, Independent pump for cleaning the chamber
Locking Vises :
Fast Cam Locking Vises, made of 304 stainless steel
Cutting Table :
Aluminum casting base, powder coated, T-slot Table made of stainless
Controller :
8 inch color touchscreen for simple operation and user friendliness
Joystick :
Versatile industrial joystick with X, Y, Z axis. Easy to use
Cutting modes :
Y-continuous, Y-pulse, Z-continuous, Z-pulse
Description

Floor Standing Versatile Automatic Abrasive Cutter AICUT-300

Brief Introduction:

The iqualitrol AICUT-300 series are floor standing automatic cutters with high performance. This is a versatile cutting machine designed for sectioning an extremely wide range of materials, such as metals, fasteners, rocks and ceramics, polymers, composites, electronics, semiconductors, biomaterials, etc.

The machine integrates the optimized precision cutting technology with advanced control system to provide excellent cut quality and high throughput.

Main Features:

1, Powerful motor to reduce cutting time and provide high productivity;

2, Smart feed. The machine can adjust the feed speed in real time with the load changes;

3, Cutting modes: Y-continuous, Y-pulse, Z-continuous, Z-pulse, slicing (different model, different cutting mode);

4, Versatile industrial joystick with X, Y, Z axis. Easy to use, Electrical brake for faster stopping of the blade;

5, 8 inch color touchscreen for simple operation and user friendliness, Chamber illumination with LED;

6, Aluminum casting base, powder coated, T-slot Table made of stainless and aluminum alloy;

7, Fast Cam Locking Vises, made of 304 stainless steel, Left cover made of composites by integral molding;

8, Mobile plastic recirculation coolant tank, Independent pump for cleaning the chamber.

Technical Specifications:

Description AICUT-300XYZ AICUT-300YZ AICUT-300Z
Y Feed Automatic
Z Feed Automatic Automatic ---
X Feed Automatic ○Manual ○Automatic○Manual
Cutting mode Continuous, Pulse Continuous, Pulse Continuous, Pulse
Blade(mm) 300*32*1.8
Blade speed (rpm) 500-3000
Table Dimensions 350*260 (WxD, mm)
X Travel 80mm
Cooling Automatic/manual
Main Motor 3.0KW
Power 110/220V AC, 50-60Hz, 1 Phase/3 Phase
Accessories
Diamond Blade ○ ○ ○
SiC blade ○ ○ ○
Alumina Blade ● ● ●
Fast Cam Locking Vises ● ● ●
Vertical Clamping vise ○ ○ ○
Laser alignment aid ○ ○ ○
Plastic tank ● ● ●
Plastic tank with magnetic filter ○ ○ ○
Cutting fluid ○ ○ ○
Centrifugal separator ○ ○ ○

●standard ○option
