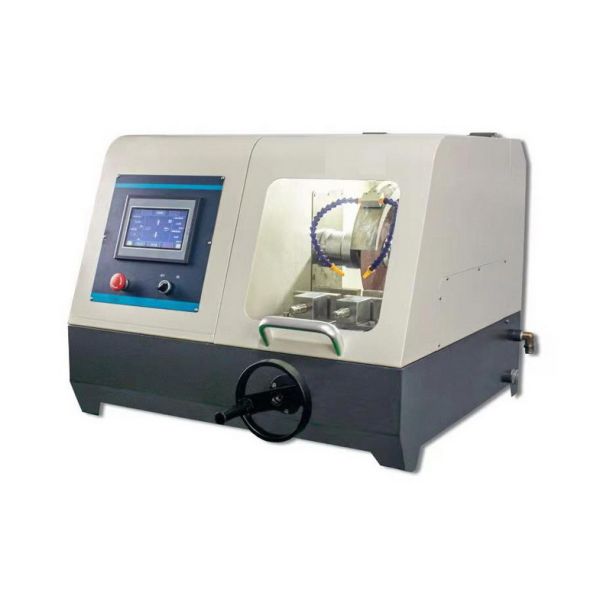

Feed Speed 3mm/s Automatic Cutting Machine HQGZ-300SY with Water Cooling LED Illumination
Feed Speed 3mm/s Automatic Cutting Machine HQGZ-300SY with Water Cooling LED Illumination
Specifications
Brand Name :
iqualitrol
Model Number :
HQGZ-300SY
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Cutting Capacity :
Φ80mm for cylinder sample
feed speed :
0.01-3mm/s, adjustable
Cutting Control :
by PLC and touch screen
Cutting Chamber :
fully enclosed structure, extra-large observation window
effective illumination :
LED lighting system to provide effective illumination
Cooling type :
circulating water cooling system
Description

Feed Speed 3mm/s Automatic Cutting Machine

HQGZ-300SY with Water Cooling LED Illumination

Brief Introduction:

HQGZ-300SY was controlled by PLC and touch screen, offering very high reliability and powerful control capabilities.

cut circular workpieces with diameter max 80mm, rectangular samples height * width 80*300mm.

fully enclosed structure, extra-large observation window, to observe cutting process of the sample.

LED lighting system to provide effective illumination, circulating water cooling system;

Technical Specifications:

Cutting Modes

Automatic cutting, manual cutting,

continuous cutting, pulse cutting
Screen 7” Touch Screen
Y Axis Travel 275mm
Y Axis Cutting Travel Adjustable
Y Axis feed speed 0.01-3mm/s, adjustable
Feed Positioning Real-time display tracking
reset mode Automatic Reset
Cutting Disc 300*2*32mm
Rotation Speed 2800rpm
Cutting Table 350X305mm
Material of Cutting Table Stainless steel surface
Cutting Capacity Φ80mm for cylinder sample
Illumination Water-proof LED
Cooling System Water Cooling
Removable side panel Yes, for long sample cutting
Clamp In Stainless steel material
Power 3KW
Power Supply AC380V/50Hz/3Ph
Cutting Program Can save 100 groups
Water Tank 50L
Net & Packing
Dimension

900*920*670mm, 990*1040*810mm,

weight 290Kg
Water Tank 685*530*640mm
