What is Membrane Water Wall?

A membrane water wall is a critical component in modern boiler systems, designed to line the combustion chamber (furnace) where fuel is burned. Its primary function is to efficiently absorb heat from combustion and transfer it to water within the tubes, generating steam for power generation or industrial processes. This innovation replaces traditional water-tube designs, offering enhanced performance and durability.

Structural Design:

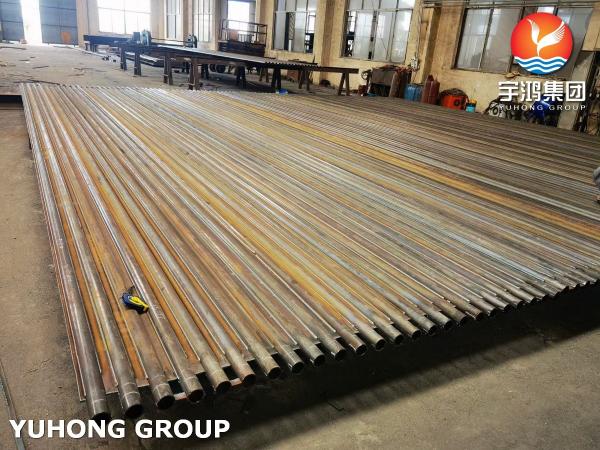

Membrane water walls consist of closely spaced vertical tubes welded together with interconnecting steel strips (membrane bars), forming a continuous, gas-tight panel. This seamless structure eliminates gaps between tubes, creating a rigid, monolithic wall. Materials such as carbon steel or high-temperature alloys are used, depending on operational demands.

Advantages Over Traditional Systems:

1.Enhanced Heat Transfer: The continuous surface maximizes heat absorption, improving thermal efficiency and enabling higher steam temperatures/pressures.

2.Structural Integrity: The welded membrane provides inherent strength, supporting taller boiler designs and reducing reliance on external frameworks.

3.Reduced Gas Leakage: The sealed wall minimizes flue gas escape, enhancing safety and efficiency while lowering refractory maintenance.

4.Ease of Maintenance: Smooth surfaces prevent ash accumulation, simplifying cleaning and reducing downtime.

Applications:

Widely used in high-pressure power plants, industrial boilers, and waste-to-energy facilities, membrane walls are pivotal in advancing clean combustion technologies. They are particularly suited for supercritical and ultra-supercritical boilers, where efficiency and reliability are paramount.

Environmental and Economic Benefits:

By optimizing fuel use and operational efficiency, membrane water walls contribute to lower CO₂ and NOₓ emissions, aligning with global sustainability goals. Although initial costs and welding expertise may pose challenges, long-term savings in maintenance and fuel consumption justify the investment.
