Specifications
Brand Name :
YUHONG
Model Number :
ASTM A192 / ASME SA192
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000 TONS / month
Delivery Time :
Depends on order quantity

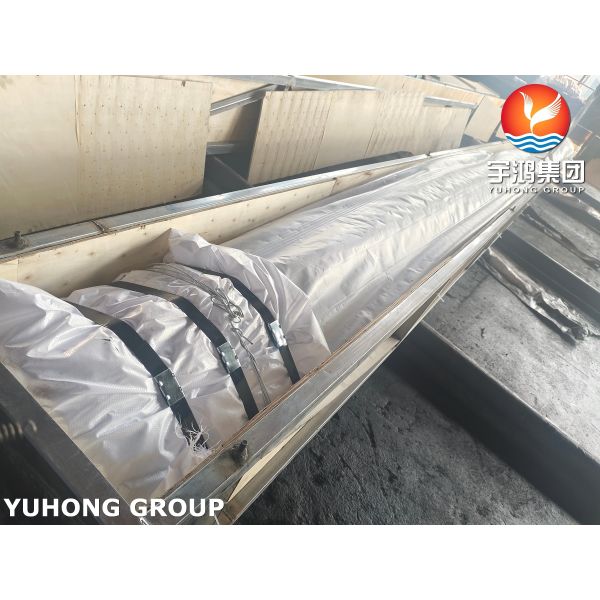

Packaging Details :
Steel frame wooden case with plastic cap
Material :
Carbon steel, seamless
OD :
12.7 – 177.8 mm
WT :
2.2 – 25.4 mm
Tensile :
≥ 325 MPa
Yield :
≥ 180 MPa
Hardness :
≤ 137 HBW / 77 HRBW
Description

A192 Carbon Steel Seamless Tube For Water-Tube Boilers, Cold-Drawn And Heat-Treated

ASTM A192 Seamless Carbon-Steel Boiler Tubes

ASTM A192/A192M specifies seamless carbon-steel tubes designed for high-pressure boiler, superheater, and heat exchanger use. Available in hot-finished or cold-drawn conditions, these tubes meet strict dimensional, mechanical, and chemical standards—ideal for demanding steam applications

ASTM A192 seamless tubes combine uniform strength, precise tolerances, and robust quality control, making them ideal for high-pressure, high-temperature boiler and superheater applications in power plants, refineries, marine, and petrochemical facilities.

Why Use A192 Boiler Tube?

  • Withstands high pressure and temperature

  • Ensures reliable heat transfer

  • Offers good mechanical strength and thermal conductivity

  • Seamless construction provides integrity and safety in pressure vessels

Key Features of A192 Boiler Tube

Property

Description

Standard

ASTM A192 / A192M

Type

Seamless Carbon Steel

Application

High-pressure boilers, superheaters, heat exchangers

Manufacturing Method

Hot-finished or cold-drawn seamless tubing

Heat Treatment

Cold-drawn tubes are heat treated ≥ 650°C (1200°F)

Outer Diameter

½″ to 7″ (12.7 mm to 177.8 mm)

Wall Thickness

0.085″ to 1.000″ (2.2 mm to 25.4 mm)

Chemical Composition of ASTM A192 Tube

(As per ASTM A192/A192M standard)

Element

Composition (%)

Carbon (C)

0.06 – 0.18

Manganese (Mn)

0.27 – 0.63

Phosphorus (P)

≤ 0.035

Sulfur (S)

≤ 0.035

Silicon (Si)

≤ 0.25 (typical)*

Mechanical Properties of ASTM A192 Tube

(As per ASTM A192/A192M standard)

Property Requirement
Tensile Strength ≥ 325 MPa (47 ksi)
Yield Strength ≥ 180 MPa (26 ksi)
Elongation ≥ 35% (in 50 mm or 2 in)
Hardness (if tested) ≤ 137 HBW (wall ≥ 5.1 mm)
≤ 77 HRBW (wall < 5.1 mm)

Common Applications

  • Steam boilers

  • Superheater coils

  • Economizers

  • Heat exchangers in power plants, petrochemical facilities, and marine boilers
