Specifications
Manufacturing :
Seamless tube formed into a U-bend, usually by cold bending
Heat Treatment :
Normalized / normalized & tempered to improve toughness and strength.
Brand Name :
YUHONG
Model Number :
EN 10216-2 P265GH
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
1000 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
1000 TONS / month
Delivery Time :
Depends on order quantity
Packaging Details :
Steel frame wooden case with plastic cap
Pressure & Temperature :
Suitable for moderate to high pressure and temperature service (typically up to around 450°C).
Material :
Carbon steel (P265GH grade)
Description

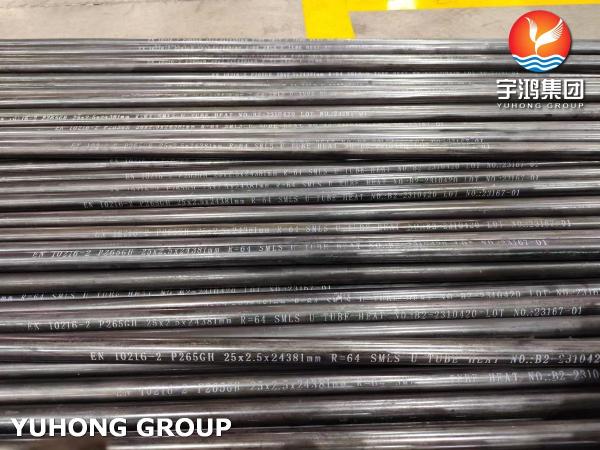

Normalized EN 10216-2 P265GH U-Bend Seamless Tube, Suitable For High-Temperature Pressure Applications

What is EN 10216-2 P265GH U-Bend Tube?

· EN 10216-2: European standard for seamless carbon steel tubes for pressure applications with specified elevated temperature properties.

· P265GH: Carbon steel grade with good weldability and suitable for high-temperature pressure applications (yield strength ≥ 265 MPa).

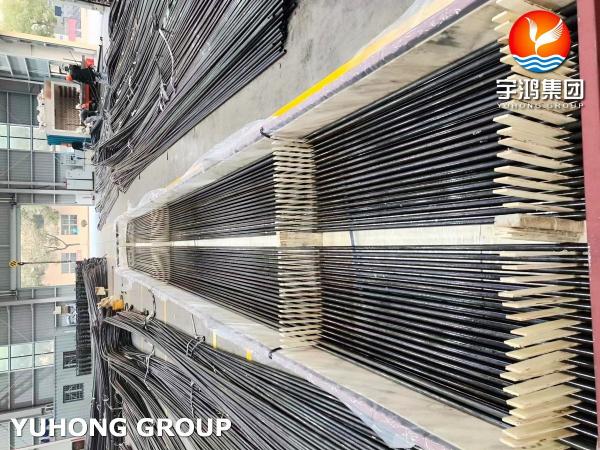

· U-Bend Tube: A tube bent into a U shape, commonly used in compact heat exchanger and boiler designs to allow directional changes without welds.

​

Why Use U-Bend Tubes?

· Compact design: Saves space by reversing flow direction within small areas.

· No welded joints: Maintains structural integrity under pressure and thermal cycling.

· Good thermal expansion accommodation: The bend helps absorb expansion and contraction during operation.

· Cost-effective installation and maintenance in boiler and heat exchanger systems.

​

Summary Table of EN 10216-2 P265GH U-Bend Seamless Tube

Property Detail
Standard EN 10216-2
Grade P265GH
Form Seamless, U-bend bent tube
Material Type Carbon Steel
Heat Treatment Normalized or normalized & tempered
Operating Temp Up to ~450°C
Applications Boiler coils, heat exchangers, pressure piping

Chemical Composition of EN 10216-2 P265GH

Element Min (%) Max (%)
Carbon (C) — 0.22
Manganese (Mn) 0.60 1.30
Silicon (Si) — 0.40
Phosphorus (P) — 0.025
Sulfur (S) — 0.015
Copper (Cu) — 0.30
Nickel (Ni) — 0.30
Chromium (Cr) — 0.30
Molybdenum (Mo) — 0.08
Vanadium (V) — 0.05

Mechanical Properties of EN 10216-2 P265GH

Property Value Test Condition
Yield Strength (Rp0.2) ≥ 265 MPa Tensile test
Tensile Strength (Rm) 410 – 560 MPa Tensile test
Elongation (A) ≥ 22% Tensile test
Impact Energy (Charpy V-notch) ≥ 27 J @ 20°C Impact test (if required)

Typical Applications of EN 10216-2 P265GH U-bend Tube

· Boiler tubes: U-bend tubes form part of superheater, reheater, or economizer coils.

· Heat exchangers: U-bends provide compact coil arrangements improving heat transfer efficiency.

· Pressure vessels and piping systems: Especially where directional changes of tubes are needed without welding joints.

· Power plants, petrochemical plants, and industrial heating systems.
