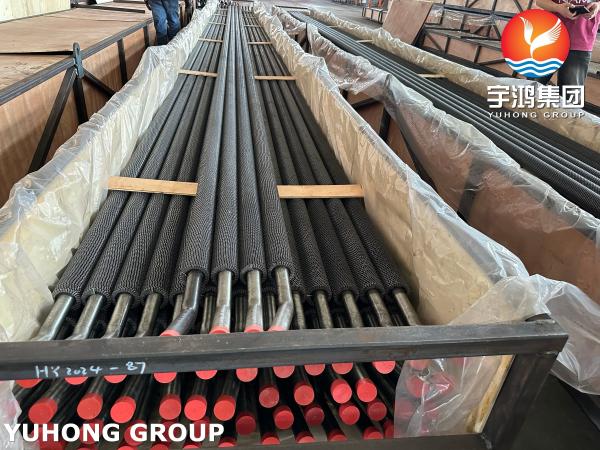

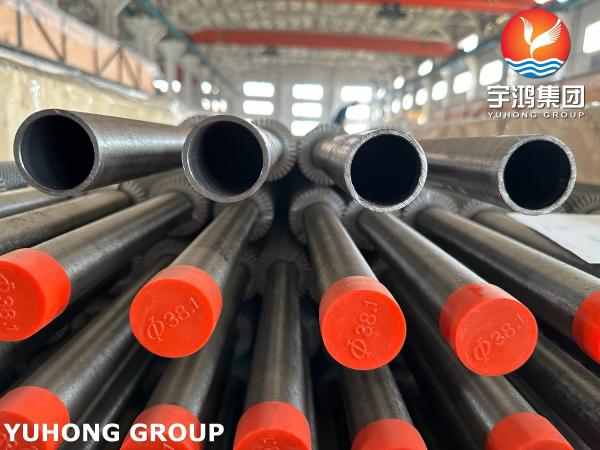

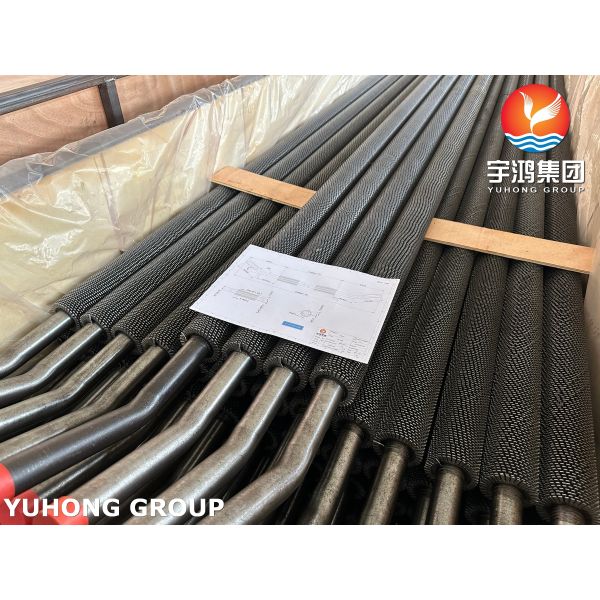

T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA213 T22
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
10000 pcs per month
Delivery Time :
Depends on order quantity
Packaging Details :
Iron frame wooden box
Type :
High Frequency Welded (HFW) Serrated Type
Standard :
ASME SA213 T22
Fin material :
Carbon Steel(CS)
Application :
Heat Recovery Steam Generation
Description

T22 High Frequency Weld Serrated Finned Tube For Power Plant Heat Recovery Steam Generation

YUHONG T22 High-Frequency Welded Serrated Finned Tubes are specifically designed for Heat Recovery Steam Generators (HRSG) in power plants. These tubes offer superior heat transfer performance and durability, making them ideal for recovering waste heat and improving thermal efficiency. In addition to finned tubes, we also provide manifolds, straight tubes, and tube supports, ensuring a comprehensive solution for your HRSG systems.

High Frequency Weld Serrated Type Fin materials

ASME ASTM EN fin thickness fintip temperature
SA1008 1.0338 (DC04) 0.8mm up to 3.0mm max. 490℃
A240 TP410S 1.4000 (X6Cr13) 0.8mm up to 3.0mm max. 650℃
A240 TP409 1.4512 (X2CrTi12) 0.8mm up to 3.0mm max. 650℃
A240 TP304 1.4301 (X5CrNi18-10) 0.8mm up to 3.0mm max. 850℃
A312 TP316L 1.4404 (X2CrNiMo17-12-2) 0.8mm up to 3.0mm max. 850℃
A312 TP316Ti 1.4571 (X6CrNiMoTi17-12-2) 0.8mm up to 3.0mm max. 850℃
A312 TP310S 1.4845 (X8CrNi25-21) 0.8mm up to 3.0mm max. 1000℃

High Frequency Weld Serrated Type Fin Dimension

ASA nominal pipe Tube OD Fin height min./max. HF I - fin solid Fin height min./max. HF I - fin serrated
1/2" 21,3 mm 6,5 – 10 mm 13 – 32 mm
25 mm 6,5 – 13 mm
25,4 mm 6,5 – 13 mm
3/4" 26,9 mm 6,5 – 14 mm
31,8 mm 6,5 – 19 mm
1" 33,7 mm 6,5 – 19 mm
38 mm 6,5 – 25 mm
1 1/4" 42,4 mm 6,5 – 27 mm
44,5 mm 6,5 – 29 mm
1 1/2" 48,3 mm 6,5 – 31 mm
51 mm 6,5 – 32 mm
57 mm 6,5 – 32 mm
2" 60,3 mm 6,5 – 32 mm
2 1/2" 76,1 mm 6,5 – 32 mm
3" 88,9 mm 6,5 – 32 mm
101,6 mm 6,5 – 32 mm
4" 114,3 mm 6,5 – 32 mm
5" 139,7 mm 6,5 – 32 mm
141,3 mm 6,5 – 32 mm
6" 168,3 mm 6,5 – 32 mm
8" 219,1 mm 6,5 – 32 mm

Additional Components We Provide

  1. Manifolds- STRAIGHT PIPE WITH HOLES

  2. Straight Tubes- STRAIGHT PIPE AND TUBE

  3. Tube Supports- CASTING
