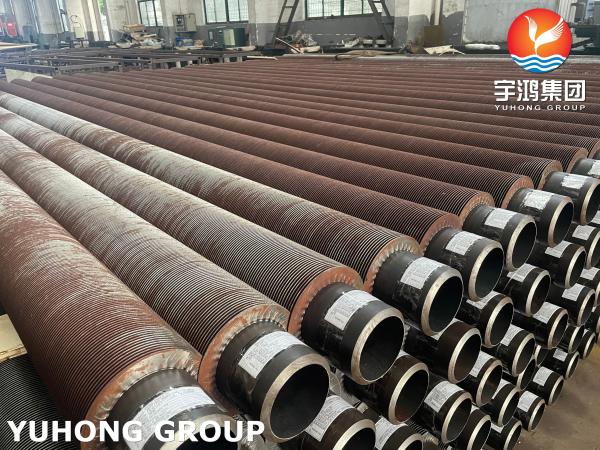

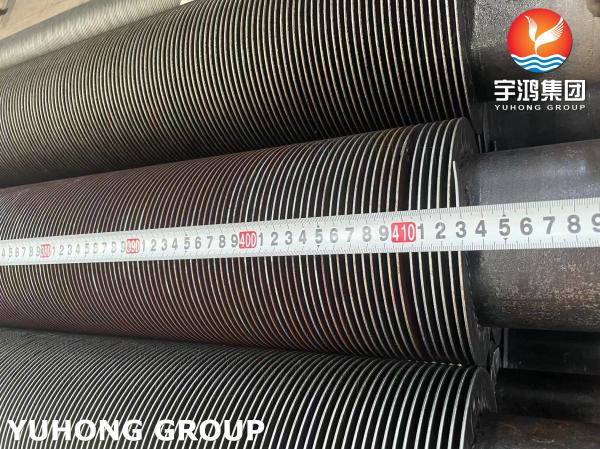

ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA106 Gr.B -HFW
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
10000 pcs per month
Delivery Time :
Depends on order quantity
Packaging Details :
Iron frame wooden box
Type :
High Frequency Welded (HFW)
Standard :
ASTM A192, A210 Gr A-1
Base tube O.D. :
114.3mm
Base tube THK. :
8.56(Min.)mm
Base tube Length :
4328mm
Fin material :
ASTM A1008
Fin qty :
197 fins per meter
Description

ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube HFW Type for Fired Heater

Yuhong Holding Group Co., Ltd is a leading manufacturer and supplier of industrial equipment, specializing in high-quality heat exchangers, fired heaters, air coolers, and associated components. With an annual production capacity exceeding 6000 tons, we are committed to providing reliable and efficient solutions for a wide range of industries. One of our standout products is the ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube (HFW Type), designed specifically for optimal performance in fired heaters.

ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube Mechanical Properties

Property ASTM A192 ASTM A210 Gr. A-1
Tensile Strength (MPa) ≥ 325 ≥ 415
Yield Strength (MPa) ≥ 180 ≥ 255
Elongation (% in 50mm) ≥ 35 ≥ 30
Hardness (HBW) Not specified ≤ 143

ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube Chemical Composition

Element ASTM A192 ASTM A210 Gr. A-1
Carbon (C) ≤ 0.06 ≤ 0.27
Manganese (Mn) ≤ 0.70 0.93 max
Phosphorus (P) ≤ 0.035 ≤ 0.035
Sulfur (S) ≤ 0.035 ≤ 0.035
Silicon (Si) Not specified 0.10 min

ASTM A192, A210 Gr A-1 Carbon Steel Fin Tube Applications of Fin Tubes

Application Function
Heat Transfer Enhancement Increases surface area for improved heat exchange between flue gases and process fluid, boosting thermal efficiency.
Energy Efficiency Reduces fuel consumption by maximizing heat recovery from combustion gases, lowering operational costs.
Compact Design Allows for compact heater construction due to high heat transfer density, saving space in industrial plants.
High-Temperature Operations Withstands extreme temperatures in fired heaters (e.g., refinery/petrochemical heaters) while maintaining structural integrity.
Corrosion Resistance Protects against corrosive flue gases and combustion byproducts when made with materials like stainless steel or alloy coatings.
Reduced Fouling Finned geometry minimizes ash or particulate buildup, ensuring sustained performance in dirty gas environments.
Uniform Heat Distribution Ensures even heat distribution across the tube bundle, preventing hot spots and prolonging equipment lifespan.
Process Flexibility Adaptable to diverse fuels (gas, oil, etc.) and process conditions due to customizable fin density, height, and tube materials.
Emission Control Enhances combustion efficiency, reducing unburned hydrocarbons and emissions (e.g., CO, NOx) for compliance with environmental regulations.
