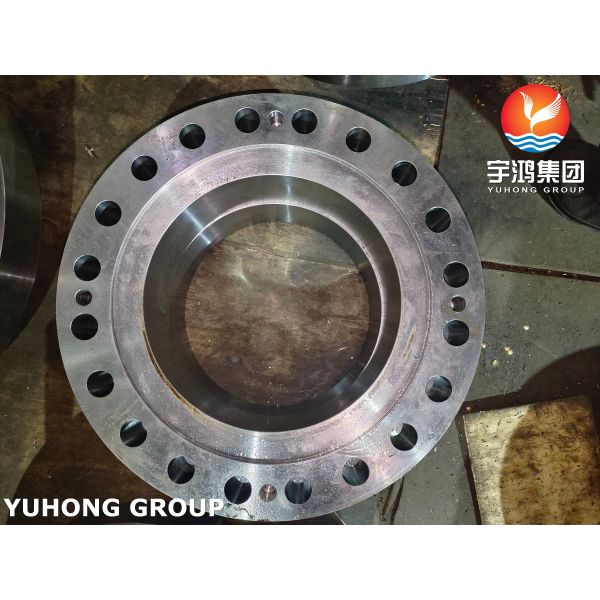

ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
ASME SA266 Gr.2N Carbon Steel Flange For Petrochemical Equipment
Specifications
Brand Name :
YUHONG
Model Number :
Flange For Heat Exchanger
Certification :
ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1 PC
Price :
NON
Payment Terms :
T/T
Supply Ability :
300 TONS / MONTH
Delivery Time :
1 - 4 MONTH
Packaging Details :
WOODEN CASE, Ply-Wooden Cases with Steel Frames
Srandard :
ASME SA266
Material :
Gr.2N
Flange type :
WN, SO, BL, SW, THREAD
Flange Face :
FF, RF, RTJ
Pressure :
Class 150# to 2500#
Size Range :
Customizable
Flange Standard :
ANSI B16.5
Description

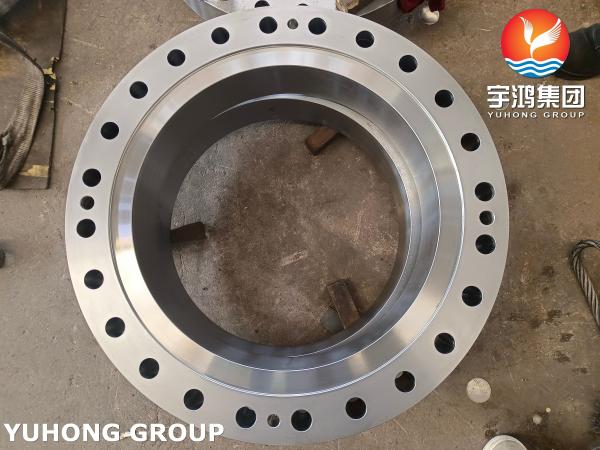

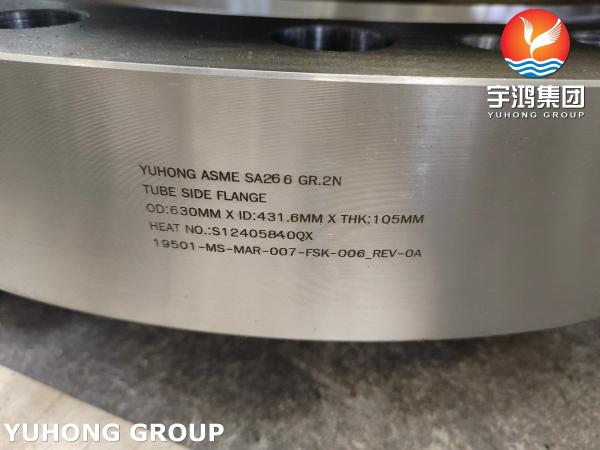

ASME SA266 Gr.2N Tube Side Flange

ASME SA266 Gr.2N tube side flange is an economical and reliable medium and low pressure carbon steel connection solution suitable for non-corrosive working conditions. Tube Side Flange is used on the tube side of pressure vessels or heat exchangers to connect pipes or tube bundles and needs to withstand internal medium pressure and temperature.

Typical structure: welded neck flange (WN), slip-on flange (SO) or blind flange (BL), the specific type depends on the equipment design.

Gr.2N has no significant corrosion resistance. If the medium contains sulfur or acidic components, it needs to be lined or replaced with stainless steel (such as SA182 F304).

Chemical Composition Requirements

Item Chemical Req. for ASTM A266, %
Gr. 1 & 2 Gr. 3 Gr. 4
C ≤ 0.30 ≤ 0.35 ≤ 0.30
Mn 0.40~1.05 0.80~1.35 0.80~1.35
P ≤ 0.025 ≤ 0.025 ≤ 0.025
S ≤ 0.025 ≤ 0.025 ≤ 0.025
Si 0.15~0.35 0.15~0.35 0.15~0.35

Mechanical Properties

Tensile
Requirements		 Gr. 1 Gr. 2 & 4 Gr. 3
T.S min.
ksi [Mpa]		 60~85
[415~585]		 70~95
[485~655]		 75~100
[515~690]
Y.S min.
ksi [Mpa]		 30
[205]		 36
[250]		 37.5
[260]
EL. in 2" or
[62.5 mm]
min. %		 23
[21]		 20
[18]		 19
[17]
R.o.A
min. %		 38 33 30

ASTM A266
Grade		 Brinell Hardness
HBW
1 121~170
2 137~197
3 156~207
4 137~197

ASME SA266 Gr.2N Tube Side Flange Application

Heat exchanger: The tube flange connects the tube bundle and the shell, which needs to withstand cyclic thermal stress.

Reactor: Sealed connection under high-pressure reaction medium.

Petrochemical equipment: Pipeline system for transporting oil, gas or corrosive fluids in refineries.
