Specifications
Model Number :
ASME SB171 C46400
Material :
C46400
Payment Terms :
T/T
Price :
NON
Flange Standard :
ANSI B16.5
Certification :
ISO 9001-2015
Flange type :
Flange
MOQ :
1 PC
Delivery Time :
1 - 4 MONTH
Size Range :
Customizable
Supply Ability :
300 TONS / MONTH
Brand Name :
YUHONG
Standard :
ASME SB171
Place of Origin :
CHINA
Pressure :
Class 150# to 2500#
Packaging Details :
WOODEN CASE, Ply-Wooden Cases with Steel Frames
Description

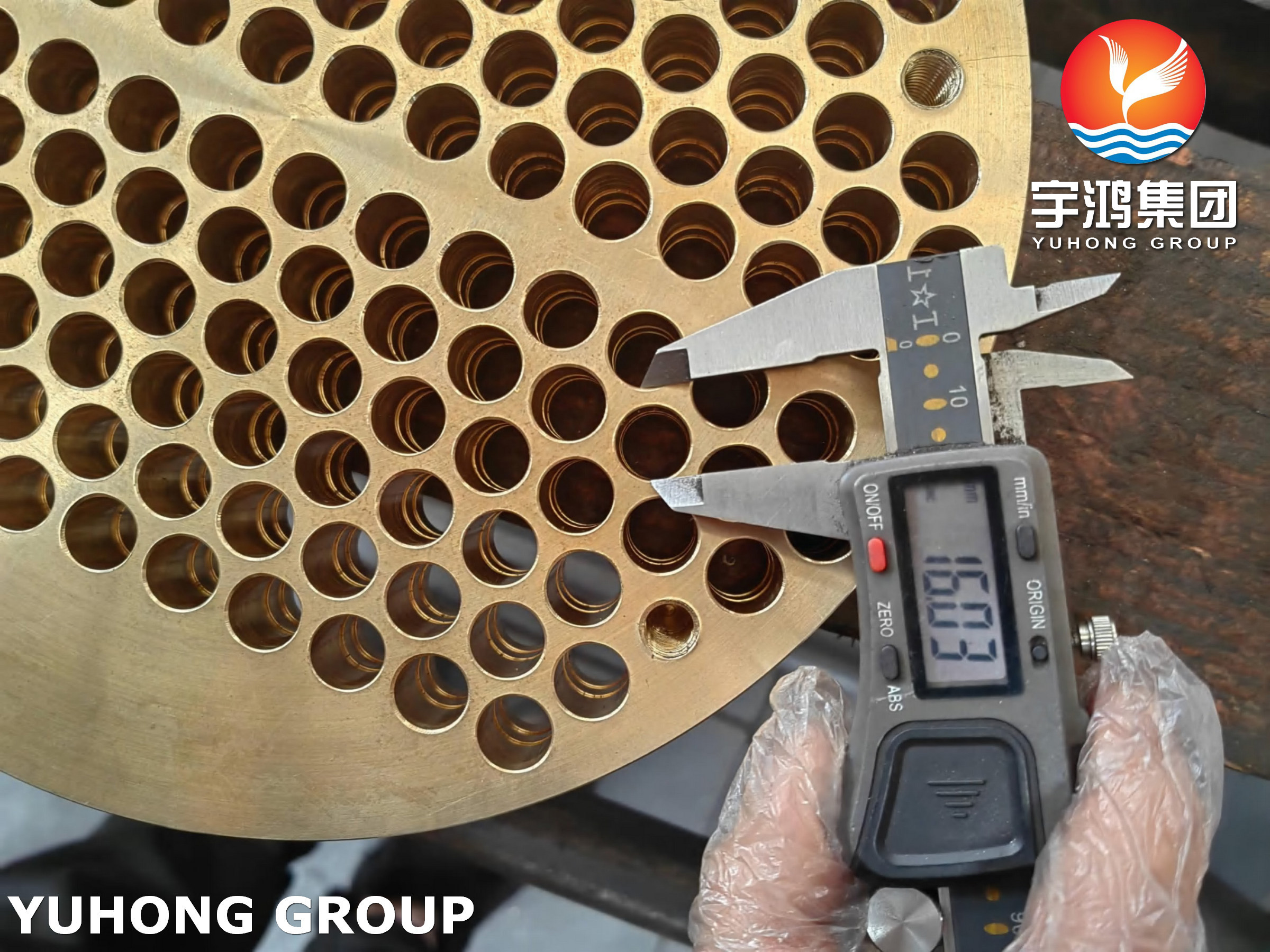

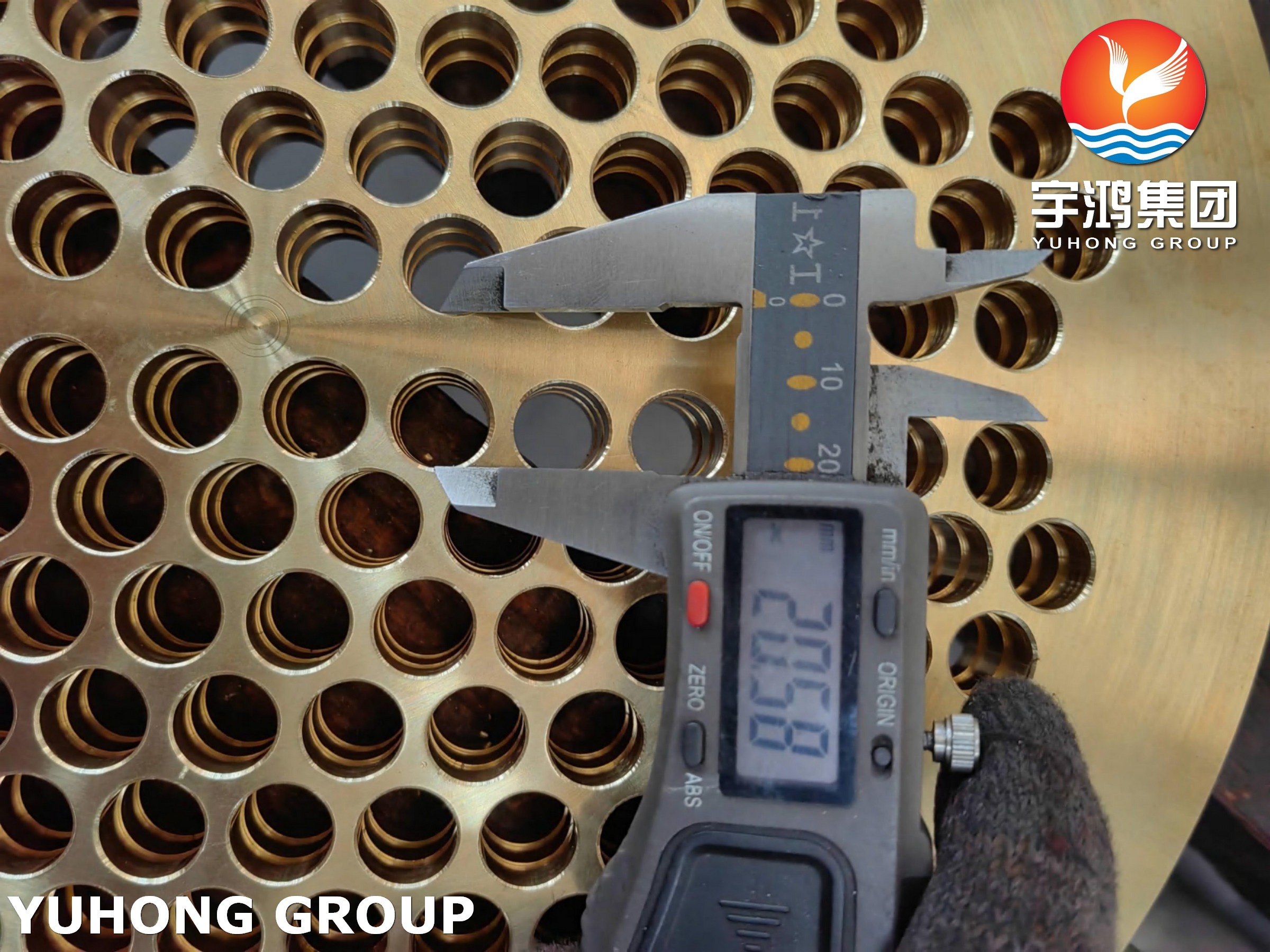

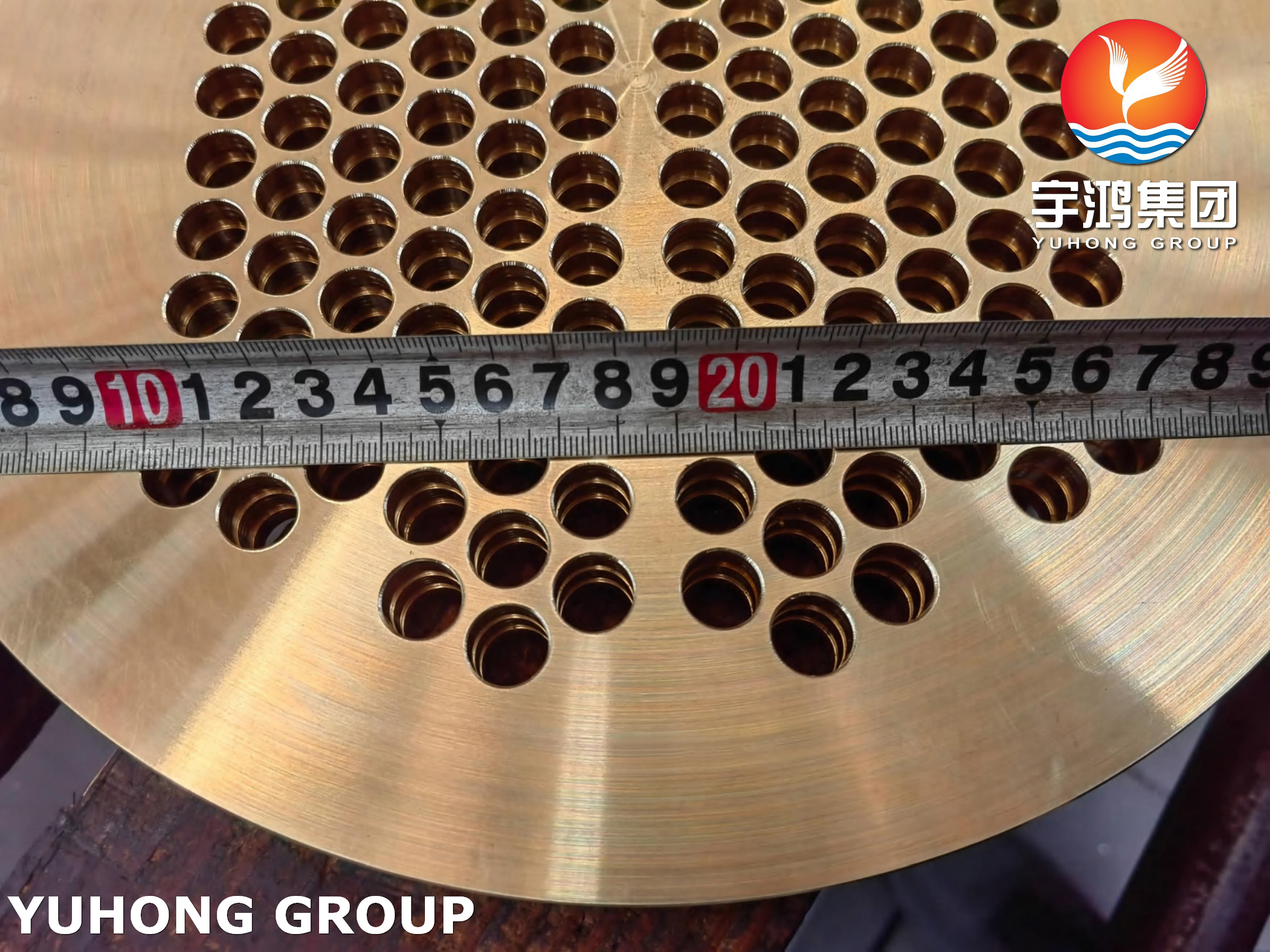

ASME SB171 C46400 Naval Brass Tubesheet | Seawater Corrosion Resistant for Heat Exchanger Condenser

ASME SB171 C46400 tubesheets are core pressure-bearing components in shell-and-tube heat exchangers, condensers, and pressure vessels, used to secure and seal the tube bundle and withstand the pressure difference between the shell and tube sides.
This product is manufactured according to ASME SB171 standards and is made of UNS C46400 naval brass, a copper-zinc-tin ternary alloy. C46400 is widely used in marine heat exchangers, power plant condensers, seawater desalination equipment, and other applications with stringent corrosion resistance requirements due to its excellent performance in seawater and industrial corrosive environments.
ASME SB171 C46400 tubesheets are copper alloy tubesheet solutions for marine engineering, coastal power plants, and chemical industries operating in conditions requiring long-term stable operation with seawater/brackish water media at medium to low pressure.

Mechanical Properties
Condition Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HBW)
Annealed ≥ 450 ≥ 200 ≥ 35 ~80
Work Hardened Up to 900 Up to 490 ≥ 15 —
ASME SB171 Standard Minimum ≥ 345 ≥ 125 – 140 ≥ 35 —

Selection for Matching Components – Galvanic Corrosion Control
Component Recommended Material Remarks
Tubes MaterialC70600 (90/10 Cu-Ni), C71500 (70/30 Cu-Ni), Naval Brass Tube material should be close in galvanic potential to C46400 tubesheet
Shell / Channel Carbon steel (with internal coating), Stainless steel, Copper alloy Sealing compatibility with tubesheet
Gaskets Compressed fiber, PTFE, Metal-jacketed Provide sealing
Fasteners Stainless steel (304/316) or Silicon bronze Avoid galvanic coupling with Naval Brass
Baffles C46400, C70600, or Coated carbon steel Support tube bundle and guide shell-

When to Choose ASME SB171 C46400 Tube Sheets?
  • Foperating temperatures ≤ 260°C and low to medium pressures—C46400 offers stable performance within this range.
  • For projects requiring a balance of corrosion resistance, thermal conductivity, and machinability—C46400 offers a good balance of these three factors.or operating media such as seawater, brackish water, or industrial cooling water—C46400 is a proven choice for these environments.
  • For equipment such as shell-and-tube heat exchangers, condensers, or pressure vessels—ASME compliance is required
