Specifications
Brand Name :
YUHONG
Model Number :
Flange For Heat Exchanger
Certification :
ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1 PC
Price :
NON
Payment Terms :
T/T
Supply Ability :
300 TONS / MONTH
Delivery Time :
1 - 4 MONTH
Packaging Details :
WOODEN CASE, Ply-Wooden Cases with Steel Frames
Material :
F22
Flange type :
WN, SO, BL, SW, THREAD
Flange Face :
FF, RF, RTJ
Pressure :
Class 150# to 2500#
Size Range :
Customizable
Flange Standard :
ANSI B16.5
Description

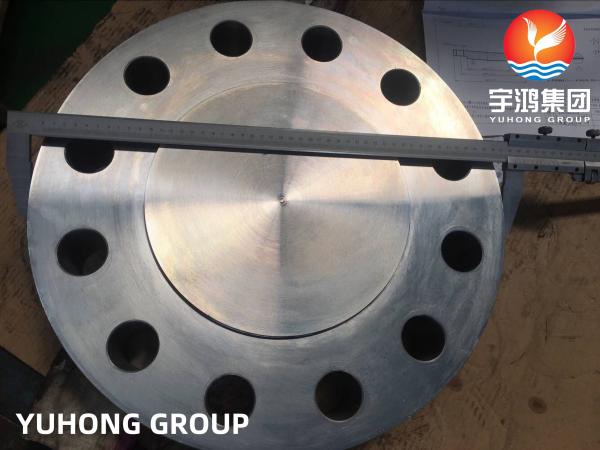

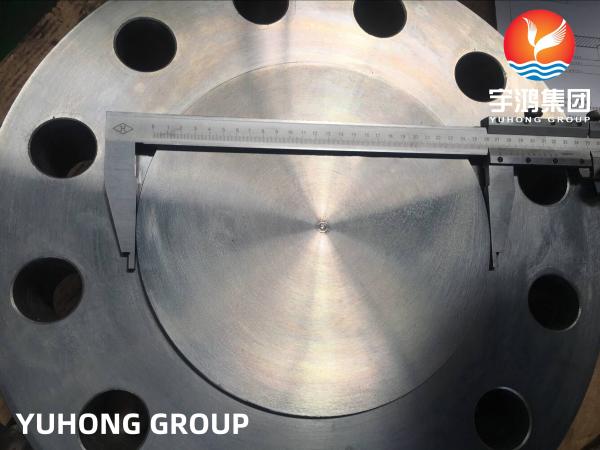

ASTM A182 F22 Blind RF Flange


ASTM A182 F22 Blind RF Flange is ideal for high temperature and high pressure systems. Its chromium-molybdenum alloy composition provides excellent resistance to oxidation and creep.

Chromium-molybdenum alloy steel (UNS K21590) is suitable for high temperature and high pressure environments (such as power plant boilers and petrochemical equipment).

Blind flanges are used to close the end of the pipe to prevent the flow of media. They are commonly used in system isolation or future expansion interfaces.


Raised face flanges are used with gaskets (such as spiral wound gaskets) to achieve sealing. The raised face height is usually 1/16 inch (150-300 Class) or 1/4 inch (600-2500 Class).

Material & Grade :

Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Chemical Composition :

Grade C Mn Si P S Cr Mo
Alloy Steel F22 0.50.15 max 0.3-0.6 0.5 0.03 0.03 4-6 0.44-0.65

Mechanical Properties :

Tensile Strength Yield Strength (0.2%Offset) Elongation
205 415 20 %

Application


High temperature and high pressure system:
Power station boiler (≤593°C), steam pipeline.
Refinery hydrogenation reactor, high temperature heat exchanger.

Pressure vessel head: used as a manhole or inspection port blind plate.

Pipeline isolation: close the pipeline during maintenance to prevent medium leakage.
