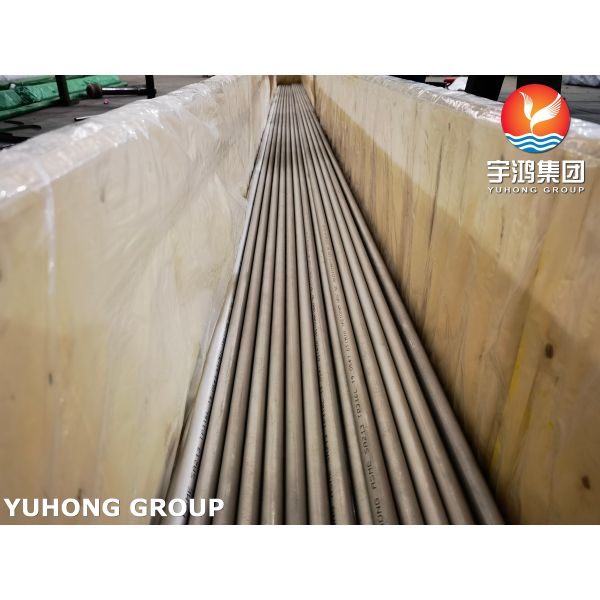

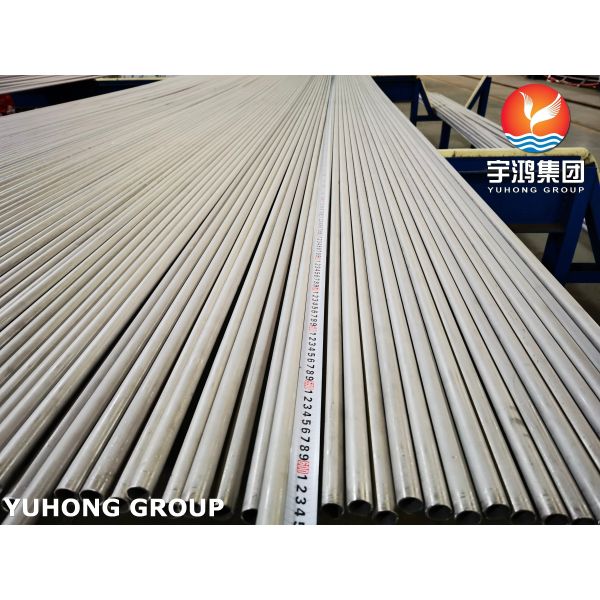

ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404，X2CrNiMo17-12-2
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 TP316L
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000 TONS / month
Delivery Time :
Depends on order quantity
Packaging Details :
Steel frame wooden case with plastic cap
Standard :
ASTM A213
Material :
TP316L
Diameter :
3.18-152.4mm
Wall Thickness :
BWG10-25
Usage :
Heat exchanger tube, Boiler tube
Applications :
Boilers, heat exchangers, superheaters, HRSG
Description

ASME SA213 TP316L Heat Exchanger Seamless Tube 1.4404,X2CrNiMo17-12-2

ASME SA213 TP316L is the designated standard and grade for seamless stainless steel tubes used in high-end applications such as power plant boilers, petrochemical plants, and nuclear power plants, for manufacturing equipment such as heat exchangers, condensers, and superheaters.

It typically employs cold rolling or cold drawing seamless processes to ensure dimensional accuracy and surface quality.

The ASME SA213 standard is specifically designed for boilers and heat exchangers operating at high temperatures and pressures.

Chemical Composition

Element Composition (% by weight)
Carbon (C) 0.035 max
Manganese (Mn) 2.00 max
Phosphorus (P) 0.045 max
Sulfur (S) 0.030 max
Silicon (Si) 1.00 max
Nickel (Ni) 10.0 – 14.0
Chromium (Cr) 16.0 – 18.0
Molybdenum (Mo) 2.00 – 3.00

Mechanical Properties

Property Value
Tensile Strength (min.) 485 MPa (70 ksi)
Yield Strength (0.2% offset, min.) 170 MPa (25 ksi)
Elongation (in 2 inches or 50 mm, min.) 35%
Hardness (max.) 90 HRB (Rockwell B)

Applications:

Heat Exchangers
Condensers
Reboilers
Feedwater Heaters
Moisture Separator Reheaters
The tubes are often fabricated into specific shapes:
U-Bent Tubes: As mentioned earlier, this is the most common form for large shell-and-tube heat exchangers to eliminate welds.
Long Length Coils: Used in tank heating/cooling or in air coolers.
Finned Tubes: For air-cooled heat exchangers (often with aluminum or steel fins attached to the stainless steel tube).
