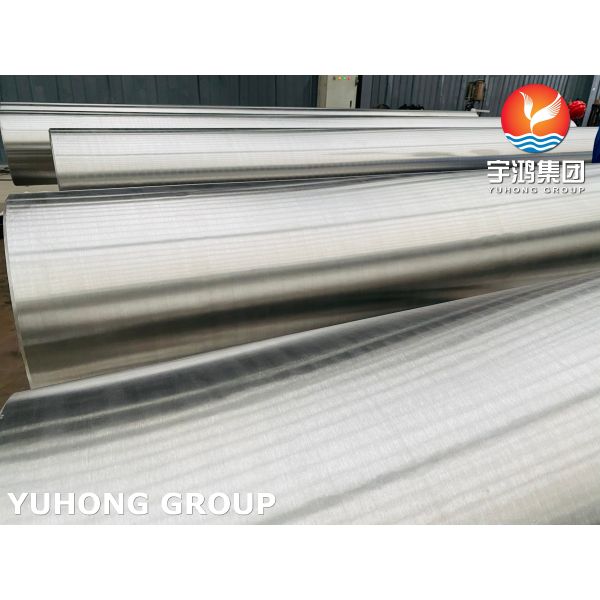

ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B407/ B409 N08811 800HT
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000 TONS / month
Delivery Time :
Depends on order quantity
Packaging Details :
Steel frame wooden case with plastic cap
Standard :
ASTM B407/ B409
Material :
N08811 800HT
Diameter :
3.18-152.4mm
Wall Thickness :
0.41mm - 25.4mm
Usage :
Heat exchanger tube, Boiler tube
Applications :
Boilers, heat exchangers, superheaters, HRSG
Description

ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange

Manufacturing qualified pipes conforming to B407 from qualified materials that meet B409 involves additional and specific requirements for the manufacturing, inspection, and performance of specific product forms.

Complementary, not conflicting: The B407 standard itself does not repeat all chemical composition details; it typically directly references or requires that "the material shall conform to the latest version of B409." Together, they constitute a complete quality process from alloy materials to pipe products.

Pipes made from this material, due to its special "cold-drawn" state and subsequent heat treatment, exhibit excellent resistance to high-temperature creep, rupture, and oxidation.

Chemical Composition Requirements (Weight %)
Element Requirement (ASTM A407) Typical Value / Comment
Nickel (Ni) 30.0 - 34.0 Balances the structure and provides corrosion resistance.
Chromium (Cr) 19.0 - 23.0 Provides oxidation and high-temperature corrosion resistance.
Iron (Fe) 39.5 min Balance.
Carbon (C) 0.05 - 0.10 Critical for high-temperature strength (controlled for 800H grade).
Manganese (Mn) 1.50 max -
Silicon (Si) 1.00 max -
Sulfur (S) 0.015 max -
Copper (Cu) 0.75 max -
Aluminum (Al) 0.15 - 0.60 Combined with Ti for strengthening.
Titanium (Ti) 0.15 - 0.60 Combined with Al for strengthening.
Al + Ti 0.85 - 1.20 Ensures adequate age-hardening potential.

Mechanical Properties
Property Requirement (ASTM A407) Notes / Condition
Tensile Strength ≥ 450 MPa (65 ksi) -
Yield Strength (0.2% Offset) ≥ 170 MPa (25 ksi) -
Elongation in 2 inches (50.8 mm) ≥ 30% For longitudinal strip specimens from the tube.
Grain Size ASTM No. 5 or coarser This is a critical requirement. The coarse grain structure is specifically developed to provide superior creep and rupture strength at elevated temperatures.

Applications:

Petrochemical & Steam Cracking
Chemical & Petrochemical Processing
Heat Treatment & Industrial Furnaces
Superheater and reheater tubes in advanced biomass/waste-to-energy plants, heat exchangers in gas turbine exhaust systems.
Nuclear Power Heat exchanger tubing, steam generator tubing, and core components

ASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat ExchangeASTM B407/ B409 N08811 800HT Seamless Pipe High Temperature Corrosion Resistant For Heat Exchange
