ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems
Specifications
Brand Name :
YUHONG
Model Number :
Serrated Finned Tubes
Certification :
ISO 9001-2015,etc.
Place of Origin :
China
MOQ :
Depend
Price :
Depend
Payment Terms :
T/T,L/C
Supply Ability :
Depend
Delivery Time :
30-50 days
Packaging Details :
Poly Wooden Case With Iron Frame
Finned Tubes Type :
Serrated Finned Tubes
Serrated Finned Tubes Material :
ASTM A312 Stainless Steel Seamless TP304 Base Tubes With SS Fins
Serrated Finned Tubes Application :
For Air-Cooled Heat Exchangers,Waste Heat Recovery Systems,Furnaces,etc.
Serrated Finned Tubes Size :
According to Customer Requirement
Serrated Finned Tubes Length :
According to Customer Requirement
Serrated Finned Tubes Packing :
In Poly Wooden Case With Iron Frame
Description

ASTM A312 Stainless Steel TP304 Serrated Finned Tubes For Superheaters In Recovery Systems

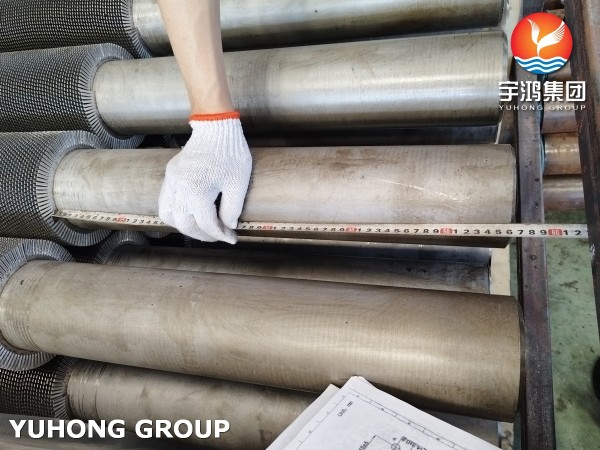

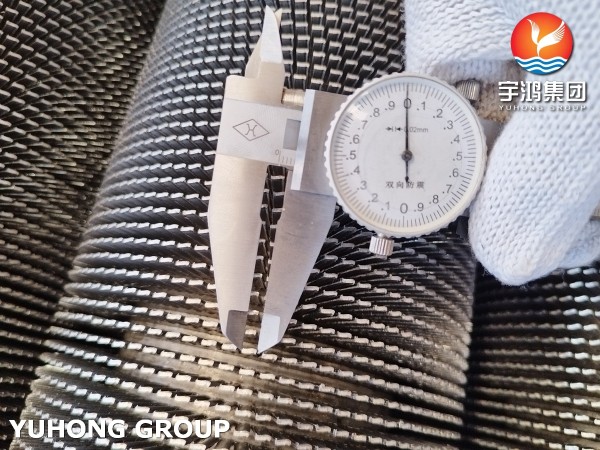

ASTM A312 TP304 serrated finned tubes are high-performance heat transfer components specifically engineered for superheater assemblies in industrial heat recovery systems. These tubes integrate the superior material properties of TP304 austenitic stainless steel with the enhanced thermal efficiency of a serrated fin geometry, creating an optimal solution for recovering waste heat from high-temperature flue gases and converting saturated steam into superheated steam.

ASTM A312 is the ASTM international standard specification for seamless, welded, and heavily cold-worked austenitic stainless steel pipes intended for high-temperature and general corrosive service.

Chemical Composition
Carbon % Manganese % Phosphorus % Sulfur % Silicon % Nickel % Chromium %
0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0
Mechanical Properties
Tensile Strength, min Yield Strength, min Elongation in 2" or 50mm, min
75ksi (515 MPa) 30ksi (205 MPa) Longitudinal:35%; Transverse:25%

TP304 this material can form a stable, passive chromium oxide (Cr₂O₃) layer, providing excellent resistance to atmospheric corrosion, fresh water, and many oxidizing acids—critical for withstanding condensate and mild corrosive species in waste heat streams.Besides, it maintains good mechanical strength and oxidation resistance up to approximately 650°C (1200°F), suitable for the high-temperature zones of superheaters.

Application:Superheaters in Heat Recovery Systems
In a Heat Recovery Steam Generator (HRSG) or industrial waste heat boiler, the superheater is a critical heat exchanger located in the highest-temperature gas path. Its primary function is to heat saturated steam (produced in the evaporator) to a specified superheated temperature.
ASTM A312 TP304 serrated finned tubes represent a high-efficiency, reliable, and cost-effective solution for superheaters in heat recovery systems. By combining the proven durability of TP304 stainless steel with the advanced heat transfer characteristics of serrated fins, these tubes significantly enhance energy recovery rates, improve steam quality.
