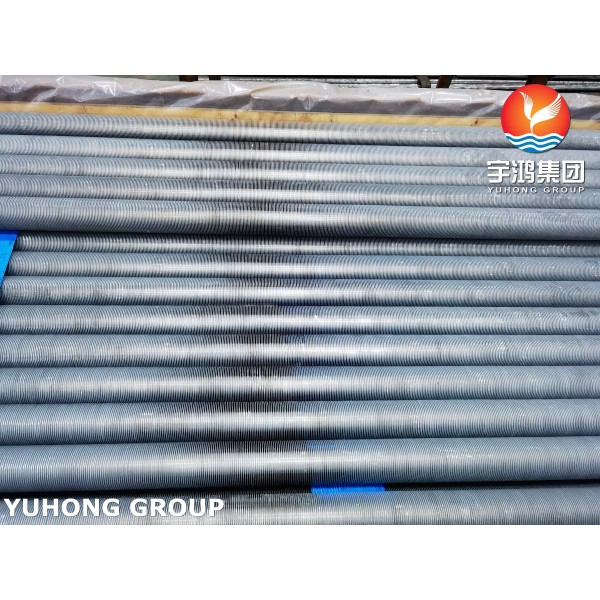

ASTM A179 extruded finned tubes are widely used in air-cooled heat exchangers and industrial cooling equipment requiring high thermal efficiency and long-term reliability. Manufactured from ASTM A179 seamless low-carbon steel tubes as the base tube, these finned tubes feature an integrally formed aluminum outer fin layer created through a cold extrusion process.

Unlike mechanically wound fins, extruded fins completely encapsulate the base tube with a continuous aluminum sleeve, providing excellent environmental protection while maximizing heat transfer performance. The robust fin structure ensures resistance against vibration, mechanical damage, and thermal cycling, making them particularly suitable for demanding operating conditions.

Our extruded finned tubes are engineered and manufactured according to customer specifications and international standards to deliver consistent performance in petrochemical plants, power generation facilities, compressor aftercoolers, and process air cooling systems.

The high-density aluminum fins significantly increase the external heat transfer area, improving overall thermal performance and reducing equipment footprint.

The aluminum fin root forms a protective sleeve around the ASTM A179 tube, shielding it from atmospheric corrosion and extending service life.

The integral fin construction offers outstanding resistance to vibration, handling damage, and thermal fatigue.

The extruded fin design minimizes fin loosening and maintains stable performance under cyclic temperature fluctuations.

Enhanced thermal efficiency contributes to lower fan power consumption and improved energy utilization.

Various fin geometries and tube dimensions can be customized to satisfy different process requirements.

Extruded finned tubes are produced through a cold-forming process:

1. An aluminum sleeve is fitted over the ASTM A179 seamless tube.
2. Specialized extrusion rollers apply controlled pressure.
3. The aluminum sleeve is plastically deformed outward.
4. Integral fins are formed continuously along the tube length.
5. The remaining aluminum beneath the fins creates a protective outer sheath around the base tube.

This manufacturing method produces fins with exceptional mechanical integrity and thermal contact.

Extruded finned tubes are extensively used in:

• Air-cooled heat exchangers
• Refinery air coolers
• Petrochemical processing units
• Natural gas processing plants
• Compressor intercoolers and aftercoolers
• Power generation facilities
• Chemical process cooling systems
• Marine cooling equipment
• HVAC industrial cooling systems
• Waste heat recovery units

The following dimensions represent commonly supplied configurations.

Custom dimensions are available upon request.

The ASTM A179 base tube complies with the chemical requirements specified in ASTM A179/A179M.

The low-carbon composition contributes to excellent ductility, formability, and thermal conductivity.

These mechanical characteristics ensure reliable fabrication and operation under normal heat exchanger service conditions.

• Material certificate review
• Heat number traceability
• Chemical composition verification
• Visual examination

• Tube outside diameter measurement
• Wall thickness verification
• Fin height inspection
• Fin pitch measurement
• Fin outside diameter inspection
• Bare end dimensional checks
• Total tube length verification

Performed in accordance with ASTM A179 requirements to verify pressure integrity.

Non-destructive testing for detecting surface and subsurface defects.

Verifies finning integrity and confirms the absence of leakage.

Ensures adequate ductility of the ASTM A179 base tube.

Confirms the tube's resistance to cracking during deformation.

Comprehensive examination of fin formation quality and surface finish.

Checks fin tightness and extrusion quality throughout the tube length.

• Aluminum fins free from cracks and deformation
• Smooth fin profile with uniform pitch

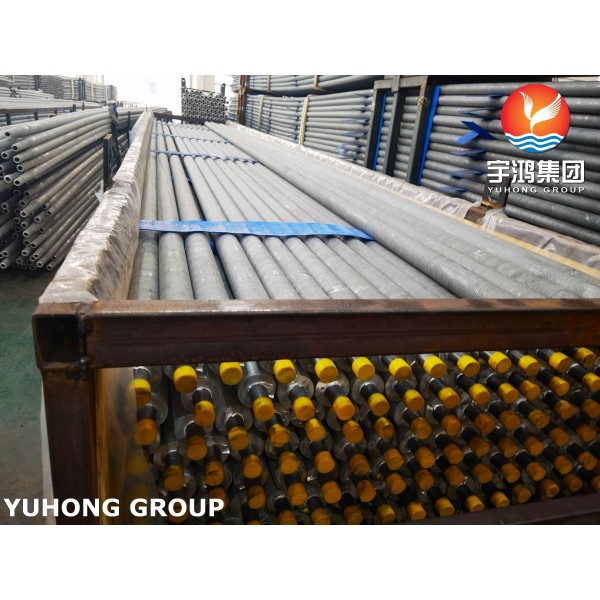

• Tube ends protected with plastic caps
• Bundled in seaworthy export packaging
• Marked with material grade, heat number, and production identification
• EN 10204 Type 3.1 material certification available upon request

Compared with other finning technologies, ASTM A179 extruded finned tubes provide:

• Higher resistance to fin damage
• Enhanced atmospheric corrosion protection
• Improved operational reliability
• Superior vibration resistance
• Lower maintenance requirements
• Longer operating life
• Excellent thermal efficiency
• Reduced total ownership costs

With extensive manufacturing experience in heat transfer components, we combine advanced extrusion technology, strict quality assurance, and flexible production capabilities to deliver finned tubes that meet the demanding requirements of global air cooler manufacturers, EPC contractors, and heat exchanger fabricators.

Whether for replacement projects or new installations, our ASTM A179 extruded finned tubes provide dependable performance, consistent quality, and optimized heat transfer efficiency for critical cooling applications.
