Specifications
Brand Name :
YUHONG
Model Number :
Flange For Heat Exchanger
Certification :
ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1 PC
Price :
NON
Payment Terms :
T/T
Supply Ability :
300 TONS / MONTH
Delivery Time :
1 - 4 MONTH
Packaging Details :
WOODEN CASE, Ply-Wooden Cases with Steel Frames
Standard :
ASME SA105, ASME SA516
Material :
A105, GR485
Flange type :
Flange, Shell
Pressure :
Class 150# to 2500#
Size Range :
Customizable
Flange Standard :
ANSI B16.5
Description

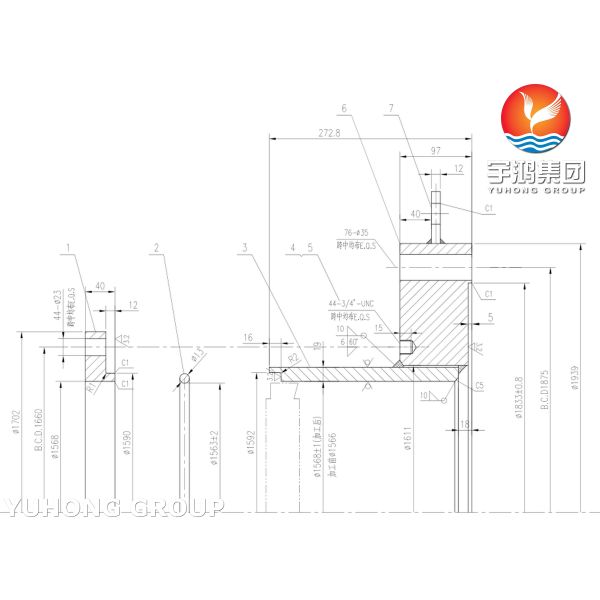

ASME SA105 Body Flange ASME B16.5 For Heat Exchanger

ASME SA516 refers to a specific material used in the manufacture of pressure vessel shells. In pressure vessels, the shell refers to the main plate material forming the cylindrical or spherical portion of the vessel.

SA516 Gr.70 and Gr.485 are essentially the same material; their chemical composition, mechanical properties, and processing characteristics are considered completely equivalent in the ASME standard, and they are the most commonly used carbon steel plates for manufacturing cryogenic pressure vessel shells.

The core difference lies in their naming system: Gr.70 uses imperial units, where "70" represents a minimum tensile strength of 70,000 psi; while Gr.485 uses metric units, where "485" represents a minimum yield strength of 485 MPa.

This naming difference stems from the different unit systems used in the project. Gr.70 is commonly used in North America, while Gr.485 is more common in Europe and China. Therefore, in actual engineering, they can meet the same design requirements, but they must be procured and manufactured strictly according to the grades specified in the design documents and cannot be substituted.

hemical Composition (Heat Analysis)
Specified for ASME SA516 Gr.70 as per ASTM A516/A516M
Element Composition, max %
Carbon (C) 0.28
Manganese (Mn) 0.85 - 1.20
Phosphorus (P) 0.035
Sulfur (S) 0.035
Silicon (Si) 0.15 - 0.40

Mechanical Properties (Room Temperature)
Specified for ASME SA516 Gr.70 as per ASTM A516/A516M*
Property Requirement
Tensile Strength 70 - 90 ksi (≈ 485 - 620 MPa)
Yield Strength (min) 38 ksi (≈ 260 MPa)
Elongation (min) 17% (in 8 in. gage length)
21% (in 2 in. gage length)

Application:

Oil, Gas, and Petrochemical:

  • Storage Vessels: For propane, butane, ammonia, and various process liquids.
  • Separators & Scrubbers: Vessels that separate oil, gas, and water.
  • Fractionation Columns & Towers: For distilling hydrocarbons.

Power Generation:

  • Steam Drums & Mud Drums: Critical components in boilers for fossil-fuel and biomass power plants.
  • Deaerators & Feedwater Tanks: To remove oxygen and gases from boiler feedwater.
  • Low-Pressure Heat Exchangers & Condensers.

Chemical & Process Industries:

  • Reactors (for non-severe corrosion services).
  • Storage Tanks for various chemicals under pressure.

Other Applications:

  • Cryogenic Storage (when supplied with specified impact testing for low temperatures).
  • Industrial Air Receivers.
  • Mining & Pulp/Paper Mill process equipment.
