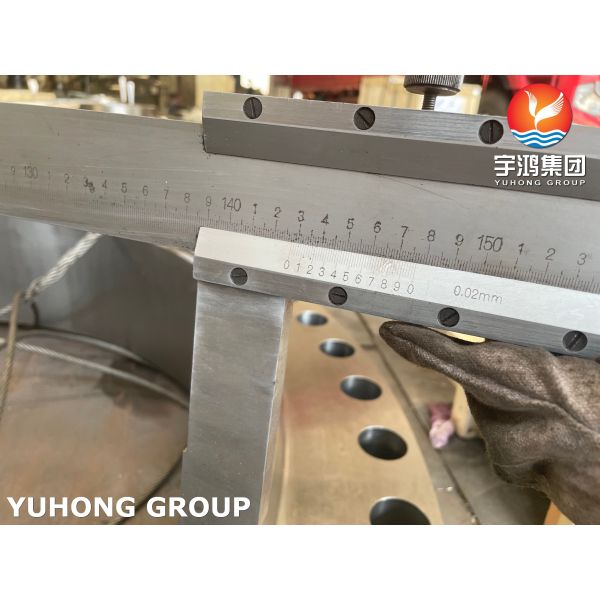

ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers
Specifications
Brand Name :
YUHONG
Model Number :
Flange For Heat Exchanger
Certification :
ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1 PC
Price :
NON
Payment Terms :
T/T
Supply Ability :
300 TONS / MONTH
Delivery Time :
1 - 4 MONTH
Packaging Details :
WOODEN CASE, Ply-Wooden Cases with Steel Frames
Standard :
ASME SA105
Material :
A105
Flange type :
Body Flange
Pressure :
Class 150# to 2500#
Size Range :
Customizable
Flange Standard :
ANSI B16.5
Description

ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers

A shell flange is a type of flange used in equipment manufacturing.

It typically refers to a flange that is directly welded to the equipment shell or head, used for detachable connections between components of the equipment itself, or for connection to external piping systems.

ASME SA105 is a highly standardized specification for high-quality materials. The materials specified in this standard can be used in equipment conforming to ASME BPVC Section VIII.

Forged flanges produced under this standard have higher strength, toughness, and fatigue resistance. They are suitable for pressure vessels, heat exchangers, and separators in petrochemical and natural gas processing applications where high pressure and high temperature are required.

Application of shell-and-tube flanges in heat exchangers: Providing the necessary detachable connection while ensuring the sealing of both the shell-side and tube-side independent pressure chambers.

Chemical Requirements
Element Composition,%
Carbon 0.35max
Manganese 0.6-1.05
Phosphorus 0.035 max
Sulfur 0.040 max
Silicon 0.10-0.35
Copper 0.40 max
Nickel 0.40 max
Chromium 0.30 max
Molybdenum 0.12 max
Vanadium 0.08 max

Mechanical Properties
Property Requirement Value Test Standard (ASTM)
Tensile Strength ≥ 485 MPa (70 ksi) A370
Yield Strength ≥ 250 MPa (36 ksi) A370
Elongation (in 50mm / 2in) ≥ 22% A370
Reduction of Area ≥ 30% A370
Hardness ≤ 187 HBW A370
