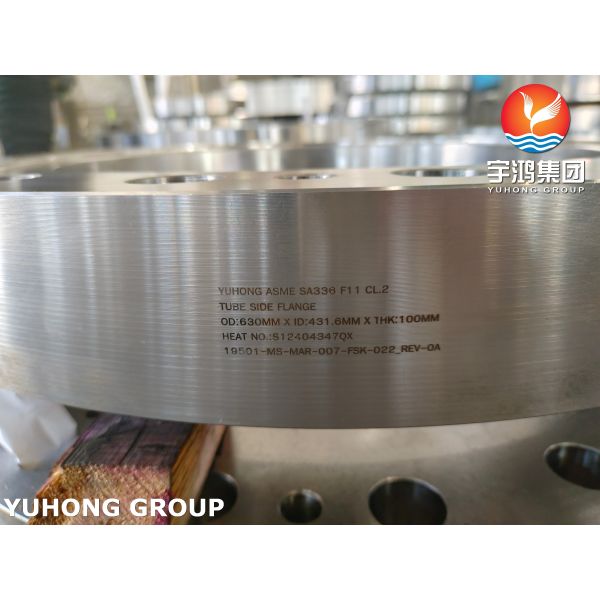

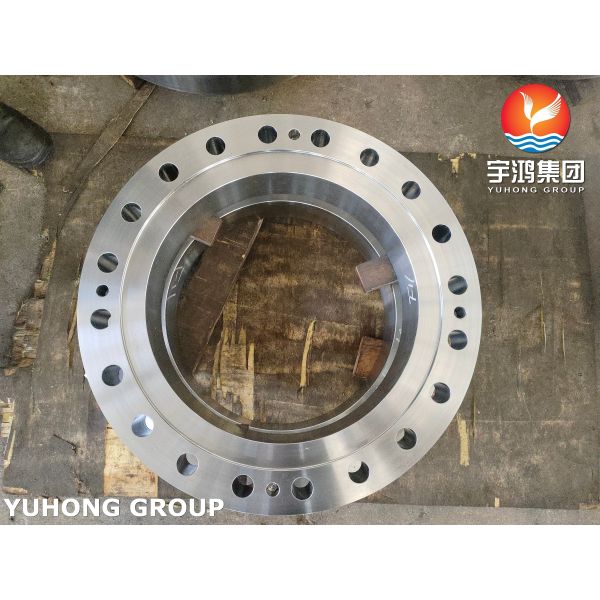

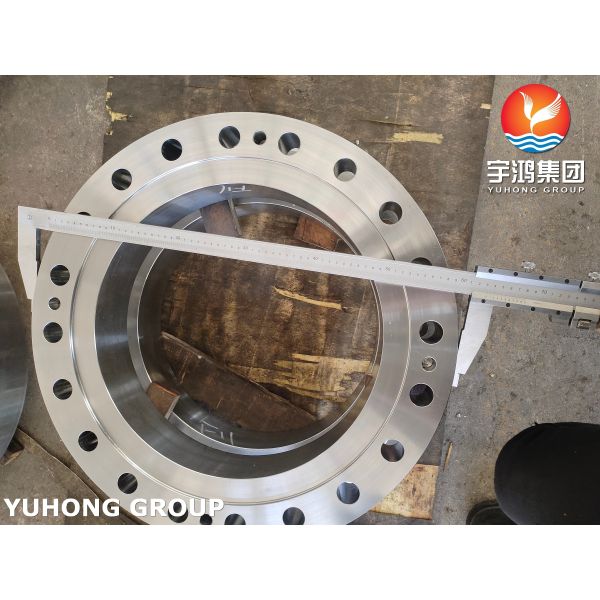

ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
Specifications
Brand Name :
YUHONG
Model Number :
Flange For Heat Exchanger
Certification :
ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1 PC
Price :
NON
Payment Terms :
T/T
Supply Ability :
300 TONS / MONTH
Delivery Time :
1 - 4 MONTH
Packaging Details :
WOODEN CASE, Ply-Wooden Cases with Steel Frames
Standard :
ASME SA336
Material :
F11 CL2
Flange type :
Flange, Shell
Pressure :
Class 150# to 2500#
Size Range :
Customizable
Flange Standard :
ANSI B16.5
Description

ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment

The ASME SA336 F11 Cl2 Tube Side Flange is a high-performance alloy steel flange designed for use in high-temperature and high-pressure environments. It is not a standard general-purpose flange, but a specialized component designed for heat exchangers operating under harsh conditions such as oil refining, chemical processing, or high-temperature power plants.
In shell-and-tube heat exchangers, the medium flows through two main spaces: the tube side and the shell side. The Tube Side designation specifies that this flange is used to connect, seal, or manage the fluid in the tube side.
Chemical Composition (Weight %)
ASME SA-336 Specification.
Element Composition Requirement (%)
Carbon (C) 0.05 - 0.17
Manganese (Mn) 0.40 - 0.80
Phosphorus (P), max 0.025
Sulfur (S), max 0.025
Silicon (Si) 0.50 - 0.80
Chromium (Cr) 1.00 - 1.50
Molybdenum (Mo) 0.44 - 0.65

Mechanical Properties
Requirements for Grade F11 Class 2
Property Test Condition / Direction Requirement
Tensile Strength At Room Temperature 415 MPa (60 ksi) min
Yield Strength 0.2% Offset, at Room Temperature 205 MPa (30 ksi) min
Elongation In 50 mm (2 in.) Gauge Length, at Room Temperature 20% min
Reduction of Area At Room Temperature 45% min
Brinell Hardness --- 137 - 187 HBW
Charpy V-Notch Impact At -30°C (-22°F) Avg. of 3 specimens: 20 J (15 ft·lbf) min
Single specimen: 16 J (12 ft·lbf) min

Applications:

  • Hydrocracking/hydrodesulfurization unit
  • Hydrogen production and ammonia synthesis
  • Ethylene cracking unit
  • General pressure vessels
