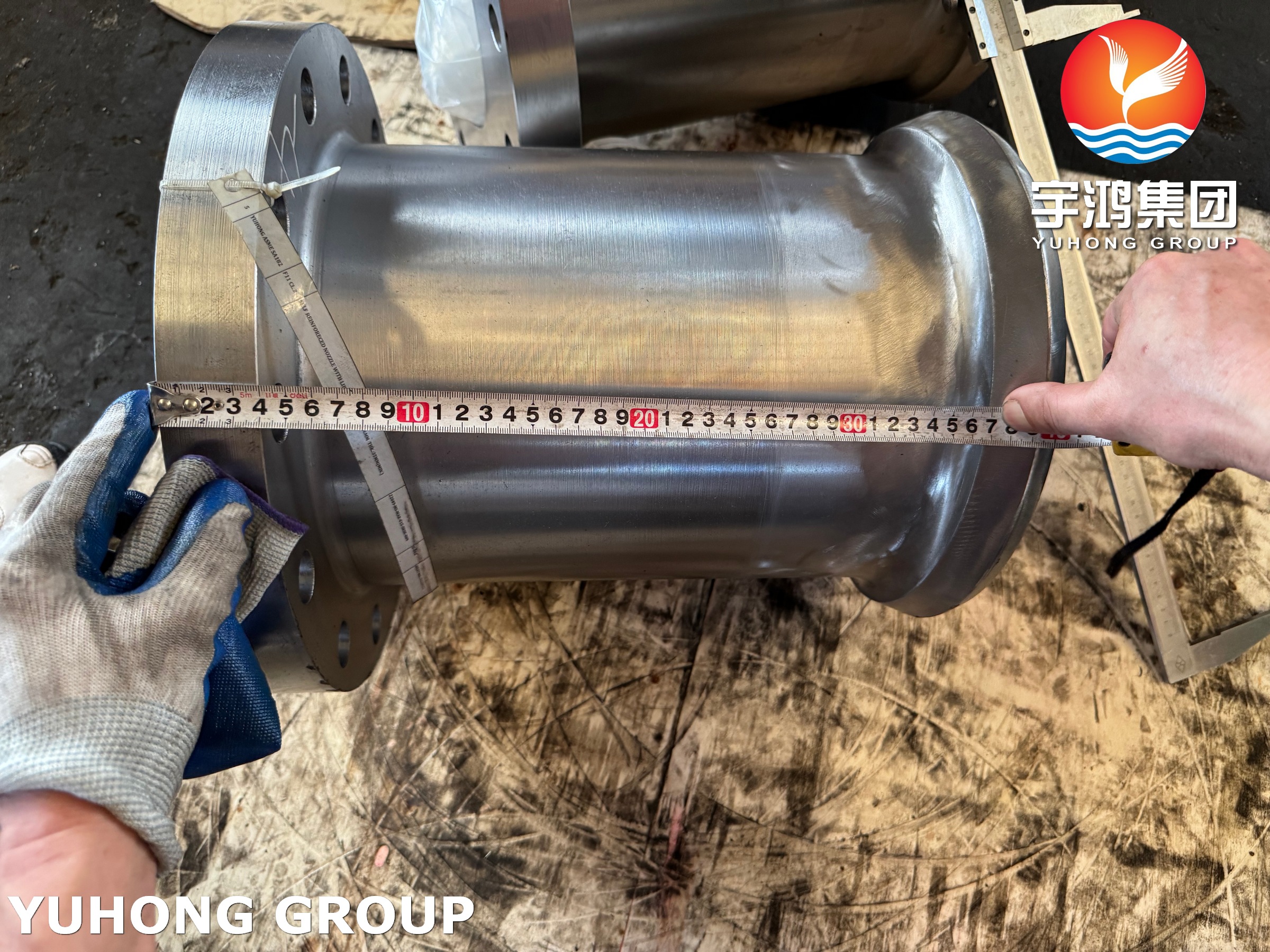

ASTM A182 F11 CL.2 Self Reinforced Nozzle for Pressure Vessel and Heat Exchanger

ASTM A182 F11 Class 2 self reinforced nozzle is manufactured from chromium molybdenum alloy steel forging and is designed for pressure vessels, heat exchangers, boilers, and high-temperature process equipment.

A self reinforced nozzle is an integral forged nozzle component that provides reinforcement through its forged geometry without requiring additional reinforcement pads around the opening. This design is commonly applied in pressure equipment where nozzle strength and connection reliability are required according to engineering design requirements.

Manufactured according to ASTM A182 / ASME SA182 specifications, F11 CL.2 nozzles are produced through forging, heat treatment, machining, and inspection processes.

Material and Standard

F11 Class 2 Chrome Moly Alloy Steel Forging

Standard: ASTM A182 / ASME SA182
Material Grade: F11 Class 2
Material Type: Chromium Molybdenum Alloy Steel
Product Type: Self Reinforced Forged Nozzle

ASTM A182 covers forged alloy and stainless steel piping components for pressure applications, including flanges, fittings, valves, and similar pressure-retaining components.

Material Characteristics

ASTM A182 F11 CL.2 Alloy Steel

F11 Class 2 is a chromium-molybdenum alloy steel grade commonly used for elevated temperature pressure equipment.

Main alloy elements include:

Chemical composition and mechanical properties shall comply with ASTM A182 F11 Class 2 requirements.

Product Structure

Self Reinforced Nozzle Design

The self reinforced nozzle integrates reinforcement into the nozzle forging body.

Typical features:

• Integral forged construction
• Customized nozzle geometry
• Designed according to pressure equipment drawings
• Suitable for welded connection applications

Forged Construction

The forged manufacturing process provides a continuous material structure suitable for pressure-containing components.

Manufacturing Process

Forging

F11 alloy steel billets are forged into nozzle blanks according to required dimensions.

Heat Treatment

Heat treatment is performed according to ASTM A182 requirements.

Typical treatment:

• Normalizing
• Tempering

Machining

Precision machining includes:

• Bore machining
• Flange or welding end preparation
• Facing
• Bevel machining

Inspection

Inspection procedures may include:

• Dimensional inspection
• Material verification
• Non-destructive testing

Product Specifications

Available Specifications

Applications

Pressure Vessel Equipment

ASTM A182 F11 CL.2 self reinforced nozzles are commonly used for:

• Pressure vessel nozzles
• Reactor equipment
• Process vessels

Heat Exchanger Systems

Applications include:

• Shell and tube heat exchangers
• High-temperature process equipment
• Pressure boundary connections

Boiler Equipment

Used in:

• Power plant boilers
• Steam equipment
• Thermal process systems

Petrochemical Industry

Suitable for:

• Refinery equipment
• High-temperature piping systems
• Chemical process units

Quality Control and Inspection

Material Inspection

Testing may include:

• Chemical composition analysis
• Mechanical property testing
• PMI verification

Dimensional Inspection

Including:

• Nozzle diameter
• Wall thickness
• Overall dimensions
• Machining tolerance

Non-Destructive Testing

Available inspection:

• Ultrasonic Testing (UT)
• Liquid Penetrant Testing (PT)
• Magnetic Particle Testing (MT)

Inspection requirements can be adjusted according to customer drawings and project specifications.

Packaging

ASTM A182 F11 CL.2 self reinforced nozzles are packaged according to export transportation requirements.

Packaging methods:

• Wooden cases
• Steel frame packaging
• Protective wrapping

Product marking may include:

• Standard designation
• Material grade
• Size
• Heat number
• Drawing number
