Specifications
Brand Name :
YUHONG
Model Number :
ASME SA105N
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1PC
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
According To Client's Request
Delivery Time :
10-90 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material :
Carbon Steel
Design Style :
Customized
Key Selling Points :
High-accuracy
Size :
1/2" to 80"
Pressure :
150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000
Application :
Petrochemical industry;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship building;water treatment,etc
Description

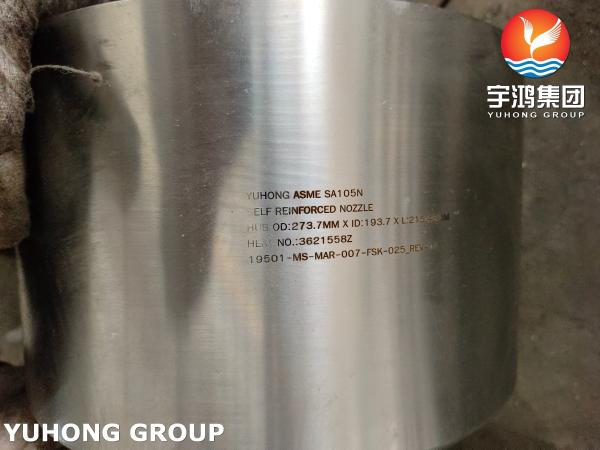

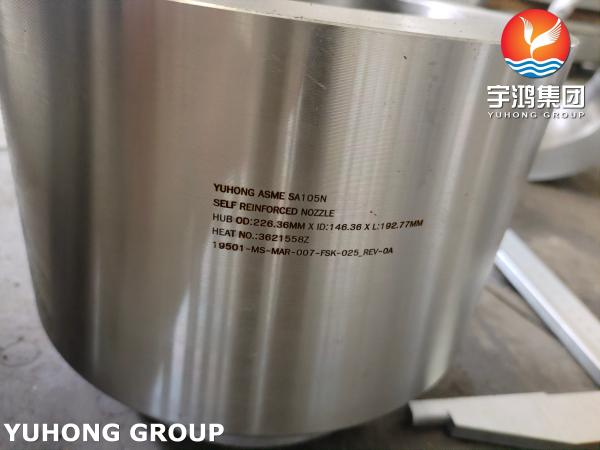

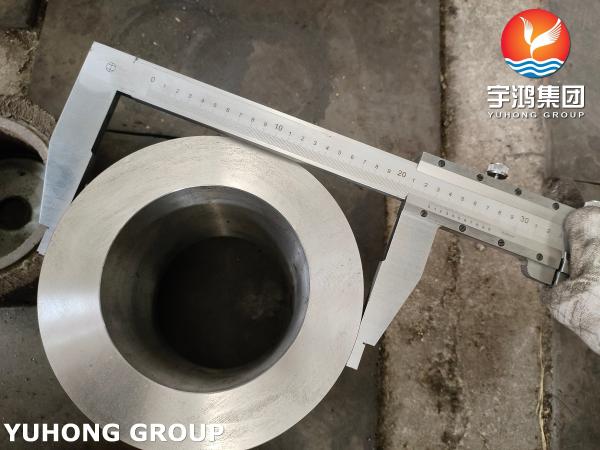

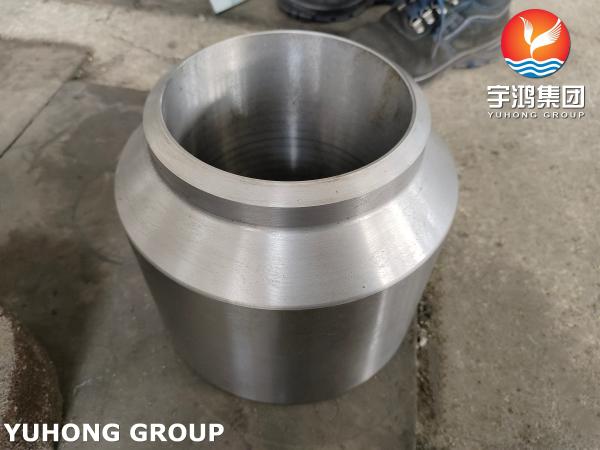

ASME SA105N Self Reinforced Nozzle

ASME SA105N self-reinforced nozzle is an economical and efficient choice for medium and low pressure and non-corrosive working conditions.

Its integrated design simplifies the manufacturing and testing process, and is especially suitable for standardized interfaces of pressure vessels and boiler systems. When selecting, it is necessary to strictly calculate the reinforcement area and wall thickness, and evaluate alternative materials in acidic or low-temperature environments. It is recommended to optimize the design in combination with ASME VIII-1 specifications and engineering experience to ensure a balance between safety and cost-effectiveness.

ASME SA105N Self Reinforced Heat Exchanger Nozzle High Accuracy Customized

Mechanical Behavior

Gr.

 Yield Strength, Min (MPa) Tensile Strength, Min (MPa) Elongation, min, %
A105N Fitting 250 485 30

Chemical Analysis

Gr. C Si Mn P S Mo Ni Cr Cu V
A105N Forged Fittings 0.35 0.10–0.35 0.60–1.05 0.035 0.040 0.12 0.40 0.30 0.40 0.08

Application:

Pressure vessels:

Reactor manhole pipe, heat exchanger box interface

Storage tank top breathing valve connection port

Boiler system:

Steam drum safety valve pipe, sewage pipe interface

Petrochemical unit:

Hydrogenation reactor process medium inlet and outlet

Hot separator instrument interface

ASME SA105N Self Reinforced Heat Exchanger Nozzle High Accuracy Customized
