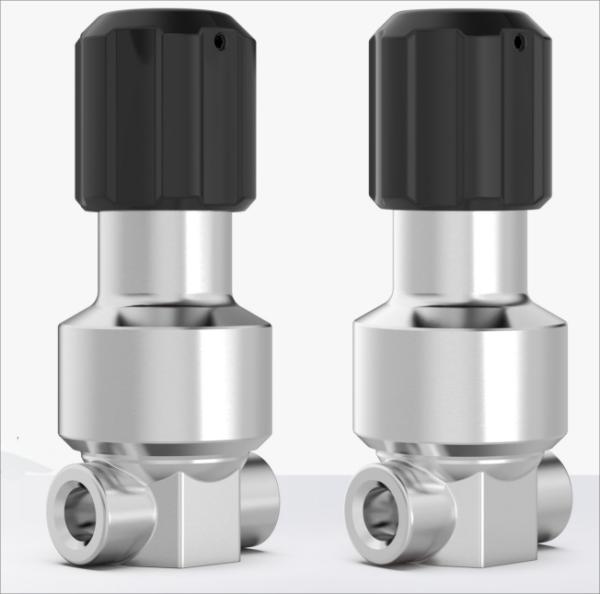

High Pressure Regulator / Back Pressure Valve In Air-assisted Spraying Systems Equipment
High Pressure Regulator / Back Pressure Valve In Air-assisted Spraying Systems Equipment
Specifications
Brand Name :
techfly
Place of Origin :
China
MOQ :
1 set
Price :
RFQ
Payment Terms :
L/C,T/T
Supply Ability :
10000
Delivery Time :
4-6 weeks
Packaging Details :
wooden box
Max pressure :
2600 psi（18 Mpa，180 Bar ）
pressure range :
300-2500 psi （2-17 Mpa，20-170 Bar）
Max flow :
8.1 gpm（30.8 L/ min)
working temperature :
32-194°F （0-90°C）
immersed part :
316 stainless steel、PTFE
weight :
1.28kg
Description

High Pressure Regulator/ Back Pressure Valve for paint system equipment


High pressure regulator

High-pressure coating regulators are used in air-assisted spraying systems to ensureprecise and reliable control of fluid pressure for spray guns,distribution valves,oratomizing nozzles.Installed on circulation line output devices or pumps,theseregulators reduce the pressure in the main pipeline to maintain the required fluidpressure for spray guns,distribution valves,or atomizing nozzles.

  • 316 stainless steel,with a long service life
  • Sensitive regulation,precise and reliable
  • Regulate pipeline pressure
  • Stabilize the fluid pressure required for spraying

High pressure backpressure valve
High-pressure coating backpressure valves are suitable for air-assisted spraying systems.Operated mechanically,thesebackpressure valves canlimit the supply pressure to a set value byopening the outlet and directing excess material back when thepredetermined pressureis reached.These valves are used incirculation systems.

  • Used to maintain the pressureupstream of the backpressure valve
  • Sensitive adjustment,precise and reliable
  • 316 stainless steel,with a long service life
  • Stabilize the fluid pressure required for spraying


Applications

• Auto Parts

• Furniture & Wood Finishing

• Sanitary Ceramics & Bathroom Products

•3C

•General Industrial: Hardware, Plastics, and More


High pressure regulator parts
No. Name Quantity Code
1 Regulator-Housing-Lower Part 1 260414700350
2 Plug -Screw 1 260414700334
3 compression spring 1 260414700355
4 Valve base 1 260414700335
5 O-ring 1 260414700336
6 O-ring 1 260414700337
7 Bracket-Valve Ball 1 260414700353
8 Valve Ball-5mm 1 260414700354
6 Plunger-Valve 1 260414700351
10 Shell -Seal 1 260414700340
11 Sealing ring 1 26014G000186
12 Pressure Sleeve -External Threa d 1 260414700363
13 Combination sealing ring 3 260414700339
14 Pressure Sleeve-Internal Threa d 1 260414700364
15 C-Clip 1 200104000083
16 Plate-spring 2 260414700341
19 compression spring 1 260414700352
20 Housing-upper Part 1 260414700343
21 Sealing Element -Flat 1 260414700344
23 Screw-Custom 1 260414700345
24 Nut 1 260414700346
25 Steel Ball 1 200528000048
26 Set Screw with Convex End 1 200101000485
27 O-ring 1 260414700347


High pressure backpressure valve parts
No. Name Quantity Code
1 Housing-Lower Part 1 260414700333
2 Plug-Screw 1 260414700334
4 Valve base 1 260414700335
5 O-ring 1 260414700336
6 O-ring 1 260414700337
9 Plunger-Valve 1 260414700338
10 Shell-Seal 1 260414700340
11 Seaingring 1 26014G000186
12 Pressure Sleeve-External Thread 1 260414700363
13 Combination sealing ring 3 260414700339
14 Pressure Sleeve -Internal Thread 1 260414700364
15 C-Clip 1 200104000083
16 Plate-spring 2 260414700341
19 compression spring 1 260414700342
20 Housing-upper Part 1 260414700343
21 Sealing Element -Fat 1 260414700344
23 Screw-Custom 1 260414700345
24 Nut 1 260414700346
25 Steel Ball 1 200528000048
26 Set Screw with Convex End 1 200101000485
27 O-ring 1 260414700347


High Pressure Regulator / Back Pressure Valve In Air-assisted Spraying Systems Equipment



Technical parameters of high pressure regulator
Code FRH60
Max pressure 2600 psi(18 Mpa,180 Bar)
pressure range 300-2500 psi(2-17 Mpa,20-170 Bar)
Max flow 8.1 gpm(30.8 L/min)
working temperature 32-194F(0-90℃)
fluid inlet and outlet 3/8"PT(f)
immersed part 316 stainless steel,PTFE
weight 1.28kg


Technical parameters of high pressure backpressure valve
Code FRH60
Max pressure 2600 psi(18 Mpa,180 Bar)
pressure range 300-2500 psi(2-17 Mpa,20-170 Bar)
Max flow 8.1 gpm(30.8 L/min)
working temperature 32-194F(0-90℃)
fluid inlet and outlet 3/8"PT(f)
immersed part 316 stainless steel,PTFE
weight 1.28kg
