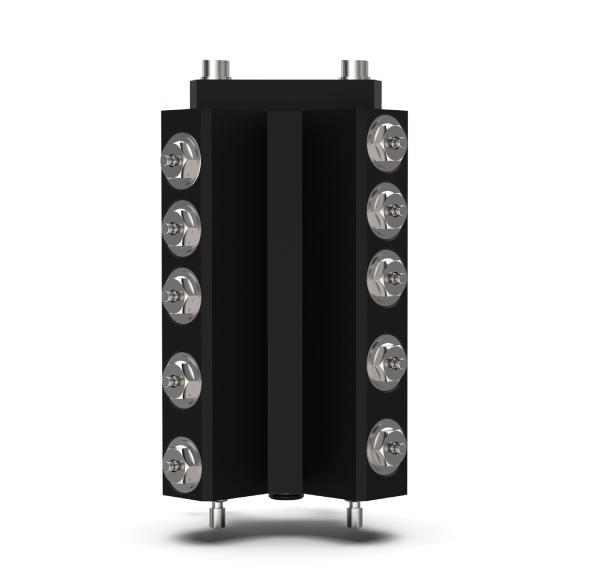

High-precision CV300 Stainless Steel Low-pressure Mini Color Change Valve For Robotic Spraying System Equipment
High-precision CV300 Stainless Steel Low-pressure Mini Color Change Valve For Robotic Spraying System Equipment
Specifications
Brand Name :
techfly
Place of Origin :
China
MOQ :
1 set
Price :
RFQ
Payment Terms :
L/C,T/T
Supply Ability :
10000
Delivery Time :
4-6 weeks
Packaging Details :
wooden box
Max pressure :
21 bar
pressure range :
8-10 bar
fluid inlet size :
6*8
air inlet size :
4mm*2.5mm
working temperature :
5-50°C(41-122°F)
immersed part :
316 stainless steel、PETP、FFKM、POM
Description

CV300 stainless steel low-pressure Mini color change valve for robotic spraying system equipment


Overview
  • Focused on fluid conveying, metering, proportioning, mixing, and atomization technologies.
  • The CV 300 stainless steel low-pressure mini color changing valve is a high-precision color valve control product designed for robotic painting systems. It is installed on robotic arms (space-saving and lightweight) and used for low-pressure coating color changing. A coating pressure regulator can be optionally equipped at the outlet end for stable pressure/flow adjustment.

Features

  • Lightweight,space-saving,and easy toincrease or decrease the quantity.
  • The valve seat is designed with a backflowstructure,allowing the applicable coatingto circulate at the color-changing valve,which slows down coating precipitation.
  • The switch seat is made of ultra-high molecular weightpolyethylene +SUS316,featuring high reliability and along service life.
  • The valve undergoes precision machining,with a service life of over 1,000,000 cycles(for abrasive coatings,the number ofcycles will be reduced)
  • The flow channel features a straight-through design witha smooth,dead-angle-free surface.The joints require noraw tape and use oriented nylon.
  • Valve body made of 316 stainlesssteel,valve seat made of POM(Polyoxymethylene)
Technical parameters
Max pressure 21 bar
pressure range 8-10 bar
fluid inlet size 6*8
fluid outlet size 6
fluid return flow size 6*8
air inlet size 4mm*2.5mm
working temperature 5-50°C(41-122°F)
applicable fluid primer, topcoat/finish coat, varnish, solvent-based coating,water-based coating/waterborne
coating,polyurethane, epoxy resin, etc.
immersed part 316 stainless steel,PETP,FFKM,POM


High-precision CV300 Stainless Steel Low-pressure Mini Color Change Valve For Robotic Spraying System Equipment

Introduction to Mini Color Change Valve
①Fluid outlet ②Return port ③Mini valve AOPR
④Leak observation tube ⑤Mini valve
⑥Pilot air supply inlet ⑦Air supply inlet ofcoating pressureregulator
⑧Return port ⑨Fluid inlet

High-precision CV300 Stainless Steel Low-pressure Mini Color Change Valve For Robotic Spraying System Equipment
Structure of Mini Valve

①The hex head is used for theinstallation and disassembly of the valve
②Pilot air inlet ③valve ④O-ing 100503000217
⑤0-ring 100503000218 ⑥valve needle tip130410400806
High-precision CV300 Stainless Steel Low-pressure Mini Color Change Valve For Robotic Spraying System Equipment

Product model
Valve group model Code quantity of valves
2color2cleaning 260410400956 4









Number:260410400802

Description:Mini Valve

accessories:
260410400835 30°fluid connector
200503000213 O-ring(manifold connection seal ring)
4color2cleaning 260410400957 6
6color2cleaning 260410400958 8
8color2cleaning 260410400959 10
10color2cleaning 260410400960 12
12color2cleaning 260410400961 14
14color2cleaning 260410400962 16
16color2cleaning 260410400963 18
18color2cleaning 260410400964 20
20color2cleaning 260410400965 22
22color2cleaning 260410400966 24
24color2cleaning 260410400967 26
26color2cleaning 260410400968 28
28color2cleaning 260410400969 30
30color2cleaning 260410400970 32
Mini valve paint
 pressure regulator		 260410400783
