CV 300 Stainless Steel Low-pressure Color Change Valve For Robotic Painting System Equipment
CV 300 Stainless Steel Low-pressure Color Change Valve For Robotic Painting System Equipment
Specifications
Brand Name :
techfly
Place of Origin :
China
MOQ :
1 set
Price :
RFQ
Payment Terms :
L/C,T/T
Supply Ability :
10000
Delivery Time :
4-6 weeks
Packaging Details :
wooden box
Max pressure :
300 psi (21 bar,2.1MPa)
Max air pressure :
100 psi (7 bar,0.7 MPa)
fluid inlet size :
1/4 G(f)(Selection of hose fittings)
fluid outlet size :
1/4 G(f) (Selection of hose fittings)
air inlet size :
4mm*2.5mm
working temperature :
5-50°C(41-122°F)
Description

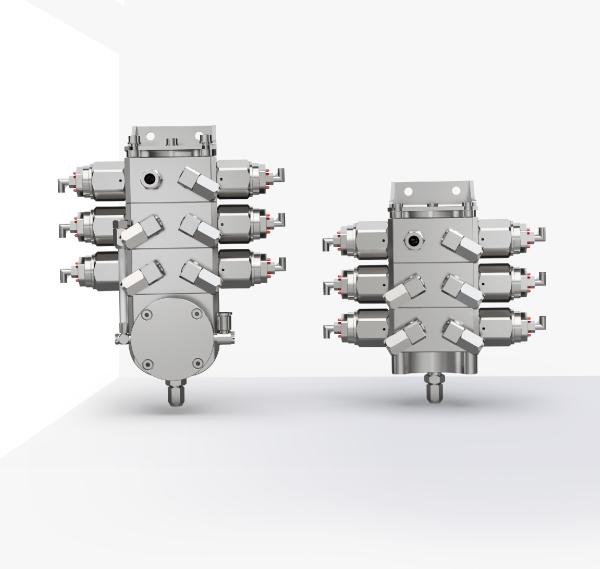

CV300 stainless steel low-pressure color change valve for robotic painting system equipment


Overview

  • The CV 300 stainless steel low-pressure color change valve is a high-precision color valve control product designed for automated spraying systems. It is used for color changing of low-pressure coatings and curing agents.
  • A coating pressure regulator can be optionally equipped at the outlet end for pressure stabilization or flow adjustment.

Features

  • The valve seat features a backflowdesign,allowing the applicable coatingto circulate at the color change valve,thereby reducing coating precipitation.
  • Constructed entirely from 316 stainless steeland electrolytically polished,the valve needleis parallel to the fluid channel,facilitating quick.
  • The valve undergoes precisioncleaning and color change.machining,with a service life of over 1million cycles (depending on thecharacteristics of different coatings)
  • The switch seat is made of FFKM material,featuring high reliability,excellent closure withthe valve seat needle,and a long service life.
  • The flow channel features a straight-through design,with a smooth anddead space -free surface.
  • The jointsrequire no raw tape and are equippedwith universal stainless steel fluidconnectors.
  • It is compatible with a wide variety of coatingsfeaturing a broad application range.It allows forquick disassembly,facilitating the increase ordecrease of quantity.
Technical Parameters
Max pressure 300 psi (21 bar,2.1MPa)
Max air pressure 100 psi (7 bar,0.7 MPa)
fluid inlet size 1/4 G(f)(Selection of hose fittings)
fluid outlet size 1/4 G(f) (Selection of hose fittings)
fluid return flow size 1/4 G(f)(Selection of hose fittings)
air inlet size 4mm*2.5mm
working temperature 5-50°C(41-122°F)
applicable fluid primer, topcoat/finish coat, varish, solvent-based coating,water-based coating/waterbome
coating, palyurethane, epaxy resin, etc.
immersed part 316stainless steel,FFKM,Ultra-high molecular weight polyethylene


CV 300 Stainless Steel Low-pressure Color Change Valve For Robotic Painting System Equipment


NO. Name Quantity Code
1 Valve block gasket-3 1 260414700419
2 switch shaft 6 260414700413
3 O-ring 1 200503000118
4 switching chamber 1 260414700411
5 RV type shaft seal 2 200503000227
6 plastic spacer ring 1 200503000229
7 spring support-3 1 260414700415
8 white rectangular
perfluoroether shaft
seal ring		 1 200503000228
9 color changing valve spring- V23 1 200107000060
10 piston support plate 1 260414700138
11 O-ring 1 200503000231
12 piston plate-3 1 260414700414
13 O-ring 1 200503000230
14 piston compression nut 1 260414700423
15 O-ring 2 200503000252
16 observation guide rod 1 260414700425
17 O-ring 1 200503000149
18 compression spring 1 200107000061
19 piston upper cover 1 260414700424
20 air quick -connect fitting with male thread 1 200301000132


Introduction to the Structure of Color Change Valves
In needle-seal type control valves, curing agents are highly prone to crystallizing and solidifying between the valve needle and the sealing ring, which hinders the precise movement of the valve needle and causes the control valve to either fail to close tightly or fail to open at all. Therefore, diaphragm-type control valves are used in spraying/discharging fluid channels; the curing agent is strictly blocked by the diaphragm outside the space between the valve needle and the sealing ring, ensuring precise control and long-term operation of the control valve.

CV 300 Stainless Steel Low-pressure Color Change Valve For Robotic Painting System Equipment

CV 300 Stainless Steel Low-pressure Color Change Valve For Robotic Painting System Equipment

Hose connector accessories
260410400852 HC4*2.5-14 Straight type The maximum pressure of compatible pipelines is 300 psi. For low-pressure systems, select the suitable color change valve connector according to the medium characteristics. The default interface is G1/4F.
260410400813 HC6*4-14 Straight type
260410400829 HC8*6-14 Straight type
260410400853 HC10*8-14 Straight type
260410400954 HC10*6.5-14 Straight type
260410400854 HC4*2.5-14-90A 90°
260410400833 HC6*4-14-90A 90°
200213000233 HC8*6-14-90A 90°
260410400855 HC10*8-14-90A 90°
260410400955 HC10*6.5-14-90A 90°
260414700410 Plug(no return option)


Products model
Valve code:
Valve code:
Valve code:
260414700428 260414700428 240109100104
Description:Coating Description:standard Description:diaphragm type
pressure regulator

Valve
model		 code Quantity Valve model code Quantity Valve model code Quantity
1color1cleaning 240109500021 2 1color1cleaning 240109500012 2 1colorlcleaning 240109500028 2
3color1cleaning 240109500022 4 3color1cleaning 240109500013 4
5color1cleaning 240109500023 6 5color1cleaning 240109500014 6
3color1cleaning 240109500029 4
7color1cleaning 240109500024 8 7color1cleaning 240109500015 8
9color1cleaning 240109500025 10 9color1cleaning 240109500016 10
11color1cleaning 240109500020 12 11color1cleaning 240109500017 12
5color1cleaning 240109500030 6
13color1cleaning 240109500026 14 13color1cleaning 240109500018 14
15color1cleaning 240109500027 16 15color1cleaning 240109500019 16
