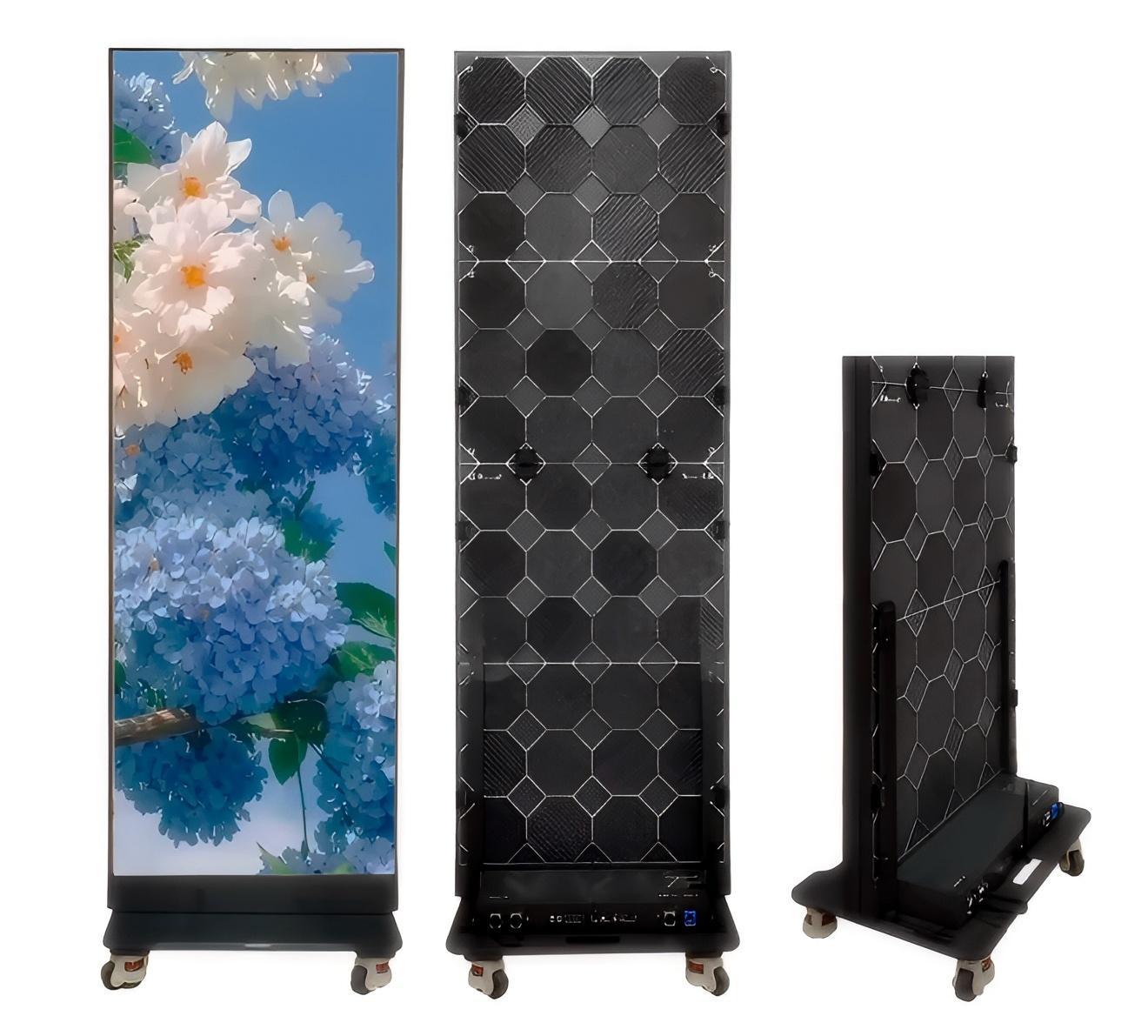

P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
Specifications
Certification :
FCC, CE, ROHS
LED Type :
SMD1010
Viewing Angle :
160°/160°
Warranty :
3 years
Service :
Front Service
Brightness :
600nits
Model Number :
COB P1.25
MOQ :
10sqm
Max Power Consumption :
490W/Screen
Price :
Negotiable
Place of Origin :
China
Protection Level :
IP40
Supply Ability :
10000sqm/month
Packaging Details :
Flight Case
Refresh Rate :
3840Hz
Delivery Time :
15days
Brand Name :
TBCLED
Pixel Pitch :
COB P1.25
Payment Terms :
D/A
Description
P1.25 Flip Chip COB LED Screen 600nits Brightness Front Service Maintenance Seamless Integration Display 640×1920mm
High-resolution P1.25 Flip Chip COB LED display with 600nits brightness, front service maintenance, and seamless integration capabilities in a compact 640×1920mm format.
Technical Specifications
Parameter P1.25
LED Type SMD1010
Pixel Pitch (mm) P1.25 (COB)
Product Size (W×H×D) (mm) 660×2121×440
Display Size (W×H) (mm) 640×1920
Resolution (W×H) 512×1536
Weight (kg) 35
Material Die-cast frame + sheet metal base
Module Size (W×H) (mm) 320×160
Brightness (nit) 600
Refresh Rate (Hz) 3840
Color Temperature (K) 9000±1000
Viewing Angle (H/V) (°) 160°/160°
Driving Method 1/64 Scan
AC Operating Voltage (V) AC 200~240 (wide voltage optional)
Power (Max/Average) (W/set) 490/163
Storage Temperature (°C) -40~+60
Operating Temperature (°C) -10~+40
Storage Humidity (RH) 10%~90%
Operating Humidity (RH) 10%~90%
Protection Level (Front/Rear) IP40/IP40
LED Lifespan (H) 100,000
Module Maintenance Front maintenance
Power & Other Maintenance Front maintenance
Seamless Splicing Supported
Folding Fold backward in half
Sound Supported (optional)
Installation Floor standing, assembled
LifeSpan 100000 hours
Warranty 3 years
P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
Product Overview
With a fine P1.25 pixel pitch and 600nit brightness, this LED poster delivers crisp, smooth images with front-service maintenance in a slim, floor-standing cabinet. It folds backward for easy moving and fits retail, corporate and event environments.
Key Advantages
Ultra-Sharp Close-Up Viewing
The fine P1.25 pitch keeps text and images razor-sharp, even when viewers stand close.
Smooth, Flicker-Free Motion
A 3840Hz refresh rate keeps fast-moving content fluid, with no flicker on camera.
Fold-Back Portable Design
The screen folds backward in half for easy moving, packing and storage.
Plug and Play
Power on and play from USB, HDMI, Wi-Fi or the cloud -- no complex setup or extra wiring.
Flexible Placement
Floor-standing with front maintenance; set it up in minutes in any store, lobby or event.
P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance P1.25 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
Applications
  • Retail & Showroom Displays: showcase products and promotions with crisp, close-up clarity.
  • Corporate Lobbies & Receptions: welcome guests with a bright, professional brand screen.
  • Exhibitions & Trade Shows: stand out at booths with vivid, seamless visuals.
  • Broadcast Studios & Control Rooms: rely on fine-pitch detail and flicker-free imaging.
Why Choose Us
15 Years of Experience: proven LED display expertise trusted by clients worldwide.
Full Support: one-on-one guidance from design and installation to after-sales service.
Fast Delivery: efficient production and logistics for on-time delivery.
