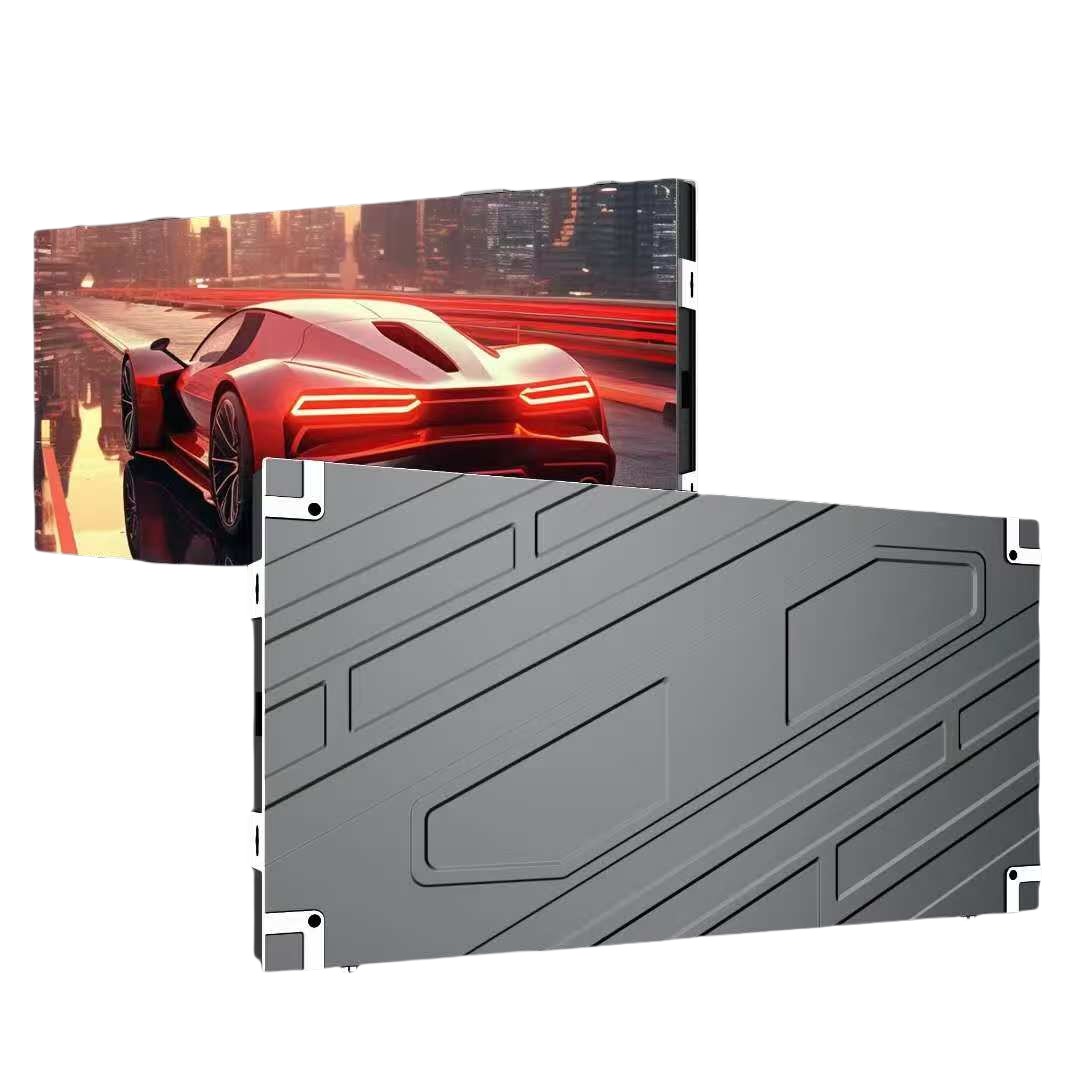

1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
Specifications
Panel Size :
640*480*59mm
Brightness :
600nits
Refresh Rate :
3840Hz
Brand Name :
TBCLED
Model Number :
HD LED Display
Certification :
3C, CE, CB, ETL, FCC, ROHS, CQC
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
25 days
Packaging Details :
Playwood Cases
Pixel Pitch :
1.25mm,1.53mm,1.86mm
Panel Weight :
320*160mm
IP level of PCB serface :
IP54（Washable by clean water）
Description
P1.53mm COB Small-pitch LED Indoor Video Wall
P1.53mm COB Small-pitch LED Indoor Video Wall With Micron-level Distance Between LED Beads For High Resolution And High Definition
COB Indoor LED Video Wall adopts COB packaging process, a LED lamp bead packaging technology directly on the PCB board. This technology improves the brightness and reliability of LED lamp beads while simplifying the production process and reducing costs. Small pitch LED refers to the distance between two adjacent LED beads being very close, reaching micron level. This design enables the COB small-pitch LED display to have outstanding advantages such as high resolution and high definition. Additionally, the COB small-pitch LED display uses advanced control technology to achieve accurate brightness control and color restoration, ensuring high quality display effects.
Specifications of COB Indoor LED Video Wall
Parameter 1.25mm 1.53mm 1.86mm
Module 320*160mm
Module Resolution (dot) 512*384 208*104 172*86
Surface Treatment Matt COB
Panel Size 640mm*480mm*59mm
Panel Weight 7.5kg / panel
Panel Resolution (dot) 1024*768 416*312 344*258
Pixel Density(dot/㎡) 640,000 422,753 288,906
Circuit Design Common cathode circuit
Flash Correction Storage Applicable
Brightness of White Balance Standard 600nits
Refresh Rate 3840Hz
Contrast Ratio 10000:1 (Condition without lighting)
Color Temperature 9300K (Standard)
Viewing Angle 160°
Input Voltage AC 100~240V 50/60Hz
Max. Power Consumption (White Balance 600nit) 88W/Panel 88W/Panel 88W/Panel
Maintenance Way Front Service
IP level of PCB surface IP54 (Washable by clean water)
Operating Temperature -10°C - +40°C / 10%RH - 90%RH
Storage Temperature -20°C - +60°C / 10%RH - 90%RH
Certificate CCC, EMC CLASS-A, ROHS, CQC
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
Features of COB Indoor LED Video Wall
1. Better Display
The structural features of the COB Indoor LED Video Wall allow for superior display effects. COB (Chip on Board) technology reduces intermediate connections and welding processes by mounting the LED chip directly on the circuit board. This compact design not only improves brightness and color saturation but also enhances the display's heat dissipation efficiency, ensuring long-term stability and durability.
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
2. Better Durability
COB Indoor LED Video Wall provides greater impact resistance and environmental adaptability. Due to its compact structure, the COB LED display effectively reduces the impact of external environment on display content, making it suitable for various complex applications such as outdoor advertising screens and stage backgrounds. This strong anti-interference ability enables it to maintain clear display effects under various environmental conditions.
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
3. Late Maintenance Advantage
COB Indoor LED Video Wall also shows multiple advantages in installation and maintenance. Compared with traditional displays, COB technology makes the installation process easier and reduces overall construction time. Simultaneously, the modular design of the COB Indoor LED Video Wall facilitates later maintenance and replacement, reducing operating costs and improving user experience.
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
Advantages of COB Indoor LED Video Wall
  • Super thin and light: PCB boards of different thicknesses can be used according to customer needs, reducing weight to 1/3 of traditional products, significantly reducing structural, transportation and engineering costs.
  • Anti-collision and anti-pressure: The COB display screen encapsulates the LED chip in the concave position of the PCB board and is encapsulated and cured with epoxy resin adhesive. The surface of the lamp point is raised into a surface, which is smooth, hard, and resistant to collision and wear.
  • Strong heat dissipation: Through the copper on the PCB board, the heat of the wick is quickly transmitted, almost no serious light attenuation is caused, and the service life is greatly extended.
  • Wear-resistant, easy to clean: The surface of the screen body is smooth and hard, crash-resistant and wear-resistant, and the broken points can be repaired point by point, making cleaning convenient.
  • All-weather excellent features: Triple protection treatment provides waterproof, moisture, rot, dust, electrostatic, oxidation, and UV protection with outstanding effects, meeting all-weather working conditions.
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
Application of COB Indoor LED Video Wall
  • Commercial advertisement: COB Small-pitch LED Indoor Video Wall can be used in commercial billboards, shopping mall advertisements, exhibition displays and other occasions. The displayed content is clear and vivid, attracting attention and enhancing brand image.
  • Conference presentation: COB Small-pitch LED Indoor Video Wall can be used in meeting rooms, exhibition venues and other occasions to achieve high-definition picture and video display, enhancing meeting effectiveness and audience experience.
  • Control and Command center: COB Small-pitch LED Indoor Video Wall can be used in monitoring centers, command centers and other occasions to show real-time monitoring images and data information, helping monitoring personnel make timely decisions.
1.53mm COB Indoor LED Video Wall with 600nits Brightness and 3840Hz Refresh Rate for High Resolution
