COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
Specifications
Panel Size :
640*480*59mm
Brightness :
600nits
Brand Name :
TBCLED
Model Number :
HD LED Display
Certification :
3C, CE, CB, ETL, FCC, ROHS, CQC
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
25 days
Packaging Details :
Playwood Cases
Refresh Rate :
3840Hz
Pixel Pitch :
1.25mm,1.53mm,1.86mm
Panel Weight :
320*160mm
IP level of PCB serface :
IP54（Washable by clean water）
Description

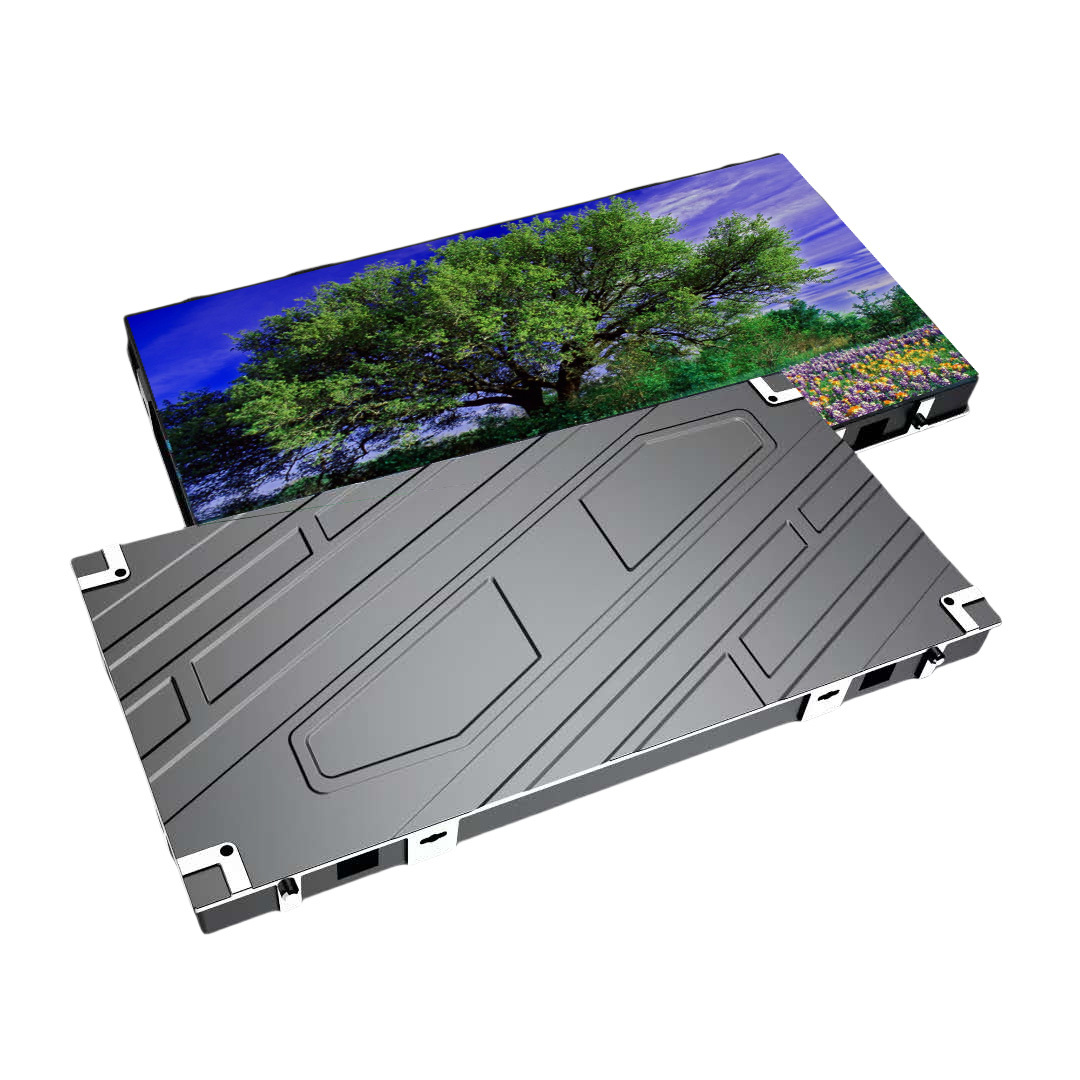

P1.53mm COB Small-pitch LED Indoor Video Wall
This COB Indoor LED Video Wall utilizes advanced COB packaging technology, mounting LED chips directly on the PCB board for enhanced brightness, reliability, and cost efficiency. With micron-level spacing between LED beads, it delivers exceptional high resolution and high-definition display performance.
Specifications
Parameter 1.25mm 1.53mm 1.86mm
Module Size 320×160mm
Module Resolution (dots) 512×384 208×104 172×86
Panel Size 640×480×59mm
Panel Weight 7.5kg/panel
Pixel Density (dots/m²) 640,000 422,753 288,906
Brightness Standard 600nits
Refresh Rate 3840Hz
Viewing Angle 160°
IP Rating IP54 (Washable)

COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display

Key Features
  • Superior Display Quality: COB technology delivers higher brightness, better color saturation, and improved heat dissipation for stable long-term performance.
  • Enhanced Durability: Compact structure provides excellent impact resistance and environmental adaptability for various applications.
  • Easy Maintenance: Modular design simplifies installation and reduces maintenance costs.
COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
Technical Advantages
  • Lightweight Design: Up to 1/3 lighter than traditional products, reducing structural and transportation costs.
  • Impact Resistant: Epoxy resin encapsulation creates a smooth, hard surface resistant to collision and wear.
  • Efficient Cooling: PCB copper layer rapidly dissipates heat, minimizing light attenuation and extending lifespan.
  • All-Weather Performance: Triple protection treatment ensures waterproof, dustproof, and anti-oxidation properties.
COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
Applications
  • Commercial Advertising: Ideal for billboards, mall displays, and exhibitions with vivid, attention-grabbing content.
  • Conference Presentations: Delivers high-definition visuals for meeting rooms and exhibition venues.

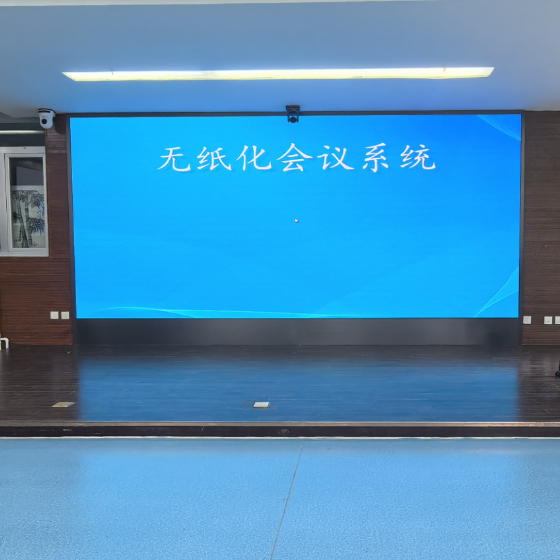

  • Command Centers: Provides real-time monitoring display for surveillance and decision-making applications.

COB Indoor LED Video Wall with 160° Viewing Angle Micron-level Distance and Matt COB Surface for High Resolution Display
