Industrial Grade PoE Switch 5 port 10/100Mbps PoE（DF-1E-4EPI）
Industrial Grade PoE Switch 5 port 10/100Mbps PoE（DF-1E-4EPI）
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
DF-1E-4EPI
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, /Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
5 Port 10/100M Industrial PoE Switch
Product Model :
DF-1E-4EPI
Interface :
4x10/100Base-T POE port + 1 port 100Base ethernet
Network Protocols :
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base- T; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at
PoE Standard: :
:IEEE802.3af/ IEEE802.3at
PoE ports: :
1-4 port support PoE
Output Voltage: :
DC48V
Fiber Midia :
Multi-mode: 2KM Single-mode: 20/40/60/80KM
Operating Temperature :
-40℃~+85℃
Bandwidth: :
1.6Gbps
Product size (L×W×H) :
128mm× 86mm× 34mm
Warranty :
5 years, lifetime maintenance
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Industrial Grade PoE Switch 5 Port 10/100Mbps PoE (DF-1E-4EPI)
Product Overview

Industrial PoE switch featuring 4 Port 10/100Mbps PoE + 1 Port 10/100Mbps Ethernet. Designed for connecting computers, switches, hubs, servers, and powering network cameras, industrial VoIP phones, wireless APs, and other PoE-supported devices.

Specially engineered for harsh outdoor applications with 6KV network port surge protection and 6KV port lightning protection to ensure reliability in demanding environments. Features industry-standard power input types.

Key Features
  • 5 Port 10/100Mbps POE Switch
  • Ports 1-4 support PoE with IEEE 802.3af (15.4W) and IEEE 802.3at (30W) compatibility
  • Automatic MAC address learning and aging
  • Automatic IGMP (Multicasting) support
  • 10/100Mbps Auto-negotiation with auto-MDI-MDI-X
  • LED indicators for power/link/activity monitoring
  • Supports 10/100/1000Mbps Full/Half-duplex
  • Wall-mount and DIN-Rail installation options
  • Daisy-Chain connection support
  • Broadcast Storm Control
  • Relay output for power failure
  • IP40 protection rating
  • Excellent heat elimination without cooling fan
  • Redundant dual DC power inputs
  • 6KV port lightning protection
  • Operating temperature range: -40℃ to +85℃
Applications
  • Urban Intelligent Traffic Monitoring System (ITS)
  • Safe City infrastructure
  • Harsh industrial environments
  • High-reliability applications

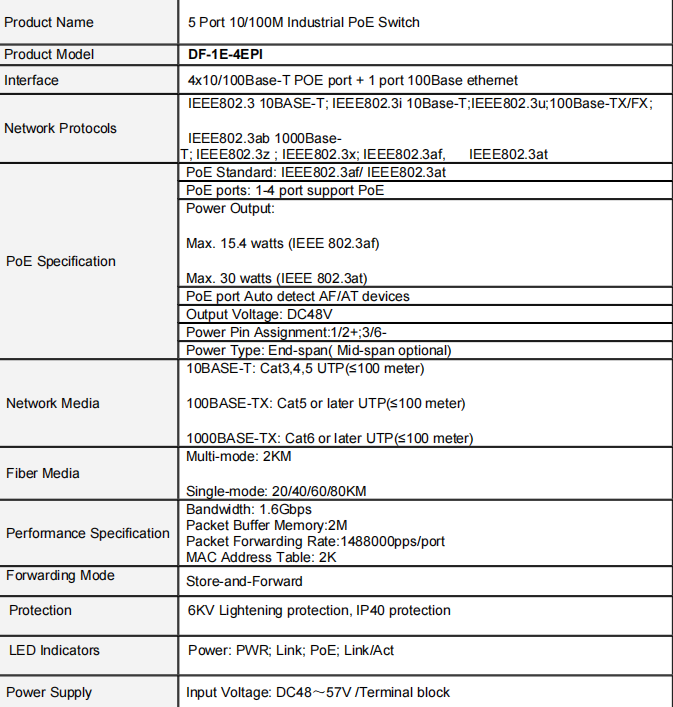

Technical Specifications
Industrial Grade PoE Switch 5 port 10/100Mbps PoE（DF-1E-4EPI）

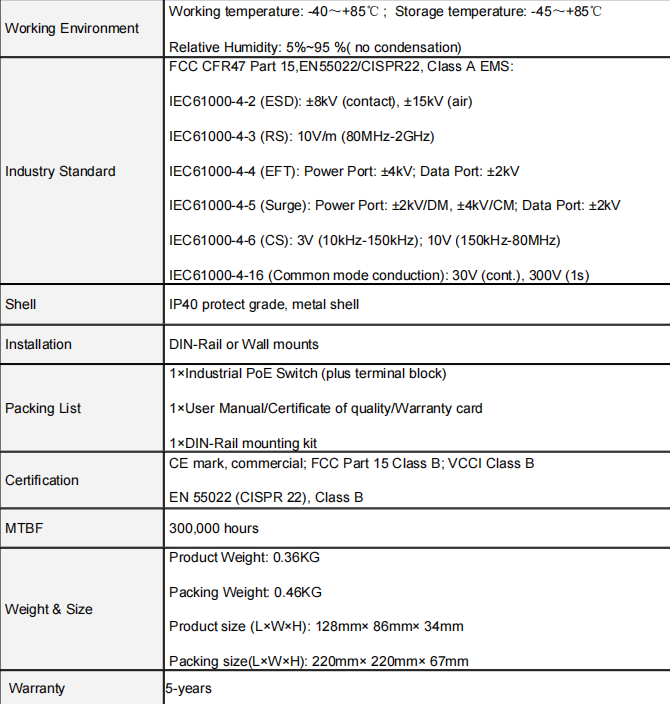

Additional Specifications
Industrial Grade PoE Switch 5 port 10/100Mbps PoE（DF-1E-4EPI）

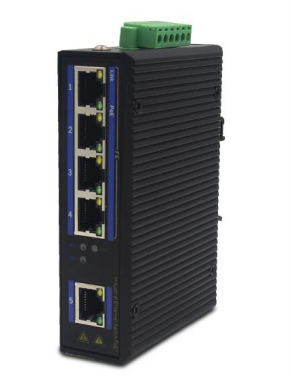

Product Images
Industrial Grade PoE Switch 5 port 10/100Mbps PoE（DF-1E-4EPI）
Industrial Grade PoE Switch 5 port 10/100Mbps PoE（DF-1E-4EPI）
Why Choose TAKFLY
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
