Industrial Grade PoE Switch 8 port 10/100Mbps PoE （ DF-8EPI）
Industrial Grade PoE Switch 8 port 10/100Mbps PoE （ DF-8EPI）
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
DF-8EPI
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
8 Port 10/100M Industrial PoE Switch
Product Model :
DF-8EPI
Interface :
8x10/100Base-T POE port
Network Protocols :
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at
PoE Standard: :
IEEE802.3af/ IEEE802.3a
PoE ports: :
8 port support PoE
Output Voltage: :
DC48V
Fiber Midia :
Multi-mode: 2KM Single-mode: 20/40/60/80KM
Operating Temperature :
-40℃~+85℃
Bandwidth: :
1.6 Gbps
Product size (L×W×H) :
157mm× 120mm× 48mm
Warranty :
5 years, lifetime maintenance
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Industrial Grade
PoE Switch 8 port 10/100Mbps PoE
(DF-8EPI)
Product Overview
Industrial PoE switch, 8 Port 10/100Mbps PoE ports , for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protectionand 6KV port Lightning protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power
Key Features
  • 8 Port 10/100Mbps POE with Auto Uplink
  • 8 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
  • Automatic MAC address learning and aging
  • Automatically support IGMP (Multicasting)
  • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports 10/100Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation
  • Supports Daisy-Chain connection
  • Supports Broadcast Storm Control
  • lightning protection, IP40 protection.
  • Excellent heat elimination without cooling fan.
  • Redundant dual DC power inputs.
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City
  • Harsh industrial environment or higher requirement.
  • 6KV port Lightning protection
  • -40℃~+85℃ operating temperature range.

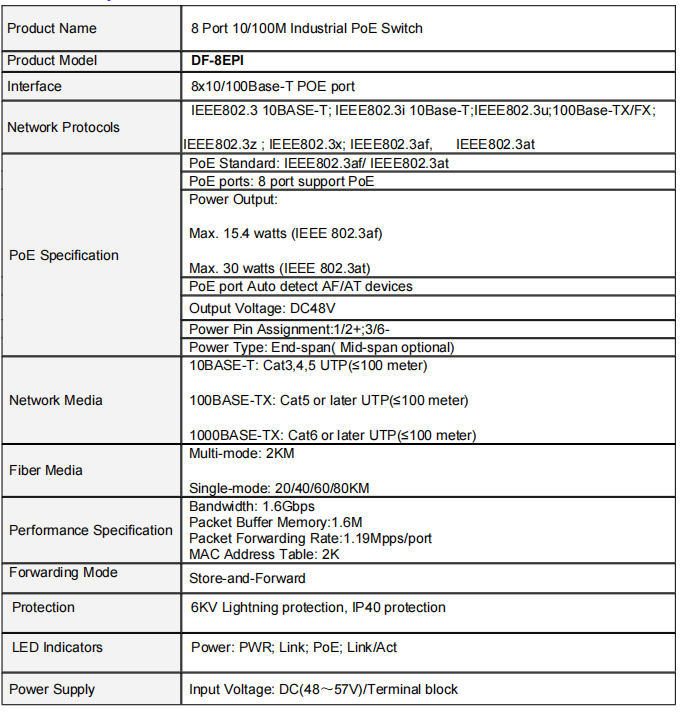

Technical Specifications
Industrial Grade PoE Switch 8 port 10/100Mbps PoE （ DF-8EPI）

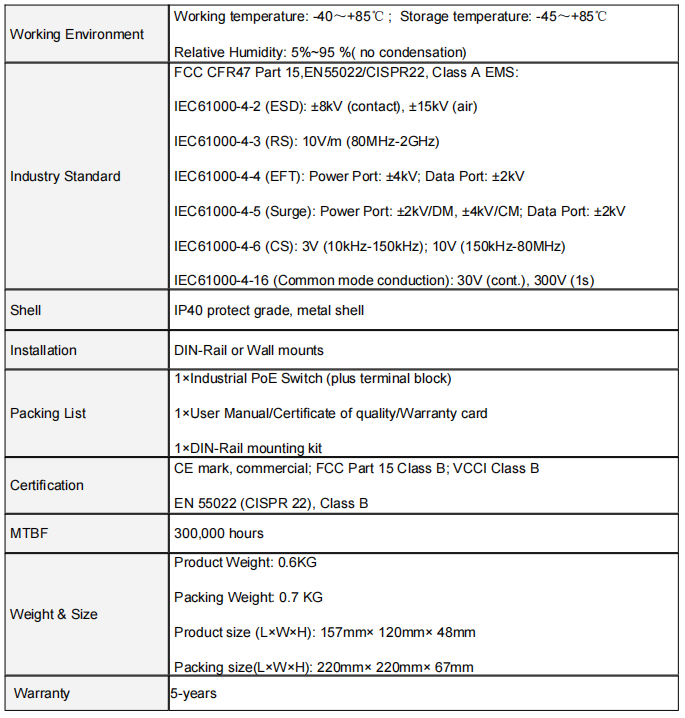

Additional Specifications
Industrial Grade PoE Switch 8 port 10/100Mbps PoE （ DF-8EPI）
Product Images
Industrial Grade PoE Switch 8 port 10/100Mbps PoE （ DF-8EPI） Industrial Grade PoE Switch 8 port 10/100Mbps PoE （ DF-8EPI）
