Specifications
Brand Name :
Juling
Certification :
API,CE,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20
Delivery Time :
10
Packaging Details :
normal package
Rated Lifting Force :
10KN
Power Requirements :
220V/380V, 50Hz/60Hz
Capacity :
1000kg
Control Method :
Remote Control
Weight :
350KG
Maximum Lifting Speed :
10m/min
Cable Material :
Steel
Wire Rope Diameter :
8mm
Control System :
Remote control or pendant control
Certifications :
CE ISO
Material :
Steel
Description

Product brief introduction

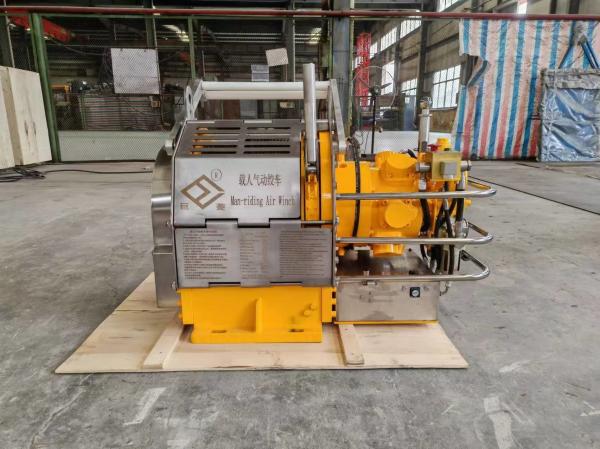

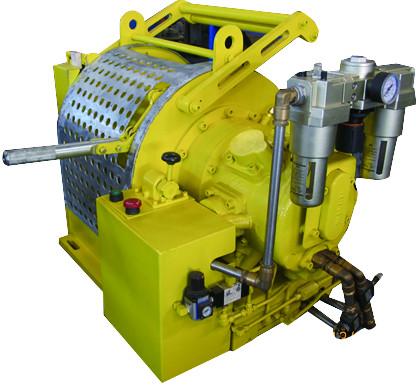

Manrider air winch is a device that uses a pneumatic motor as its power source. It drives the drum via a built-in planetary speed reducer to realize lifting or traction functions.

It is primarily applied in onshore or offshore oil operations and can be used for both carrying personnel and hoisting loads.

Detailed specifications

Rated lifting force

1.5kN

5kN

15kN

20 kN

Lifting speed

0~30m/min

0~24m/min

0~20m/min

0~20m/min

Steel rope diameter(mm)

φ10mm

φ10mm

φ19mm

φ19mm

Wire capacity

150m

150m

130m

130m

Overall dimensions:(Length×Width×Height)

850×810×910

930×810×910

1350×810×910

1350×810×910

Motor

Rated power

1.8kW

2.6kW

16 kW

16 kW

Pressure of compress air

0.25-0.8MPa

0.25-0.8MPa

0.25-0.8MPa

0.25-0.8MPa

Maximum air consumption

5m3/min

5m3/min

18.5 m3/min

18.5 m3/min

Break type

Automatic disc brake + manual belt brake

8:1 design factor for manned; 5:1 design factor for load. The minimum ratio of drum diameter to cable diameter is 18:1, which prevents cable wear.

FAQ:

Q: What is the brand name of this Electric Winch?

A: The brand name is Juling.

Q: What is the model number of this Electric Winch?

A: The model number is DJFY.

Q: Where is this Electric Winch manufactured?

A: This Electric Winch is manufactured in China.

Q: What certifications does this Electric Winch have?

A: This Electric Winch is certified with CE, ABS, and API.

Q: What are the payment terms for purchasing this Electric Winch?

A: The payment terms are T/T.
