HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
Specifications
Brand Name :
Juling
Model Number :
As Specified in the data
Certification :
API,ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
Stock
Packaging Details :
Wooden Box
Usage :
Lifting in Oilfield
Control Type :
Remote Control
Capacity :
1000 lbs
Rope :
Steel wirerope or Stainless Rope
Materials :
steel
Power :
hydraulic
Certifications :
CE, ISO
Safety Features :
Emergency Stop Button, Overload Protection
Color :
Yellow Orange or other Colors
Warranty :
12 Months
Description

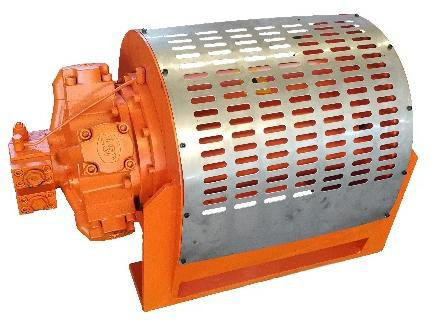

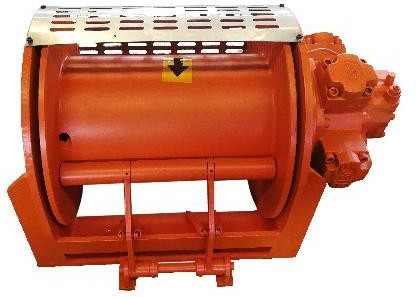

HW (YJ) Series Hydraulic Winch with Remote Control Function

Product Overview

The HW (YJ) series hydraulic winch combines imported Italian technology with advanced upgrades, offering lifting capacities from 5kN to 300kN. Available in a comprehensive range of specifications and models.

Numbering Method

HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting

  • Hydraulic winch

  • Rated traction of the first layer (*10kN)

Technical Specifications

Item HW-3 HW-5 HW-8
Max Lifting Force (lb) 6,745 11,240 17,985
Lifting Speed (ft/s) 1.64 1.36 1.65
Rated Power (H.P) 64 53 67
Motor Output Volume (ml/r) 314 623 1,116
Oil Consumption (l/min) 86 120 200
Wire Rope Diameter (in) 0.63 0.787 0.95
Rope Capacity (ft) 400 400 525
Overall Dimensions (L*W*H in) 32*17*20 36*19*22 38*29*28
Weight (lb) 650 1,100 1,550

Manufacturer Profile

Tai'an Juling Drilling Equipment Co., Ltd. is a high-tech enterprise with over 30 years of industry experience, specializing in the R&D and manufacturing of pneumatic machinery. As a professional manufacturer of pneumatic winches, we are a top-tier supplier to Sinopec and PetroChina.

Our product portfolio covers more than 10 series and 100 variants, including JQH, JQHS, XJFH, ZJQH (manned) and QJP series pneumatic winches, QDH pneumatic hoists as well as YJ hydraulic winches. Our pneumatic winches span 8 series with a load capacity of 5kN-150kN, equipped with pneumatic remote control, dual local & remote control, pneumatic braking and overload protection functions.

Quality Certifications

  • ISO9001:2015 quality management system certification
  • Mining product safety mark certification
  • CCS type approval
  • ABS type approval and CE certification for manned pneumatic winches
  • EU CE certification and ATEX explosion-proof certification
  • API certification from the American Petroleum Institute
