Specifications
Brand Name :
Juling
Model Number :
JQH Air Winch
Certification :
ISO,CE,API
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10/Per Day
Delivery Time :
20 Days
Line Speed :
10 M/min To 70 M/min
Brake Type :
Automatic Disc Brake
Control Type :
Remote Control
Material :
Steel
Rope Diameter :
8 Mm - 20 Mm
Air Pressure :
0.6 MPa - 0.8 MPa
Capacity :
0.5T-10T
Drum Capacity :
100 M To 500 M
Description

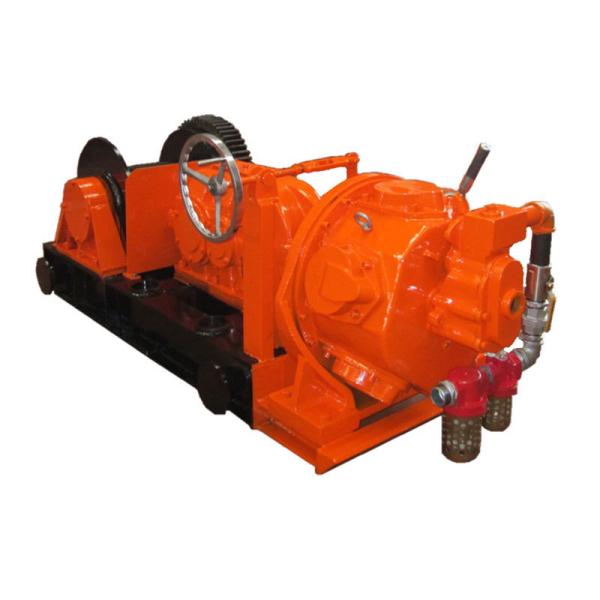

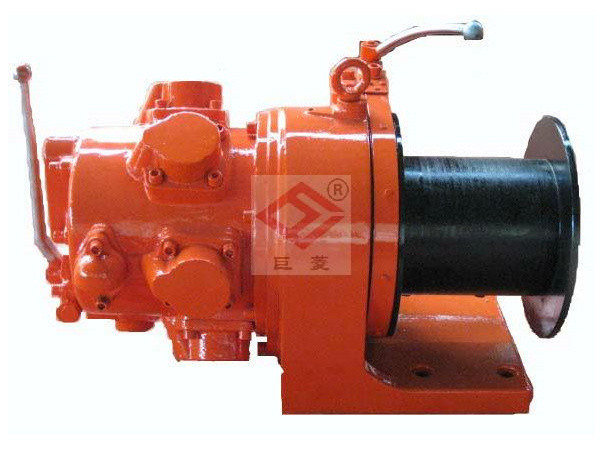

Heavy-Duty Pneumatic Winch with Remote Control
Rated Load: 0.5 Ton to 10 Ton
Product Overview
The JQH Series Air Winch is a versatile industrial tool engineered for lifting and pulling heavy loads. With lifting speeds from 10 to 40 meters per minute and load capacities ranging from 0.5 to 10 tons, it delivers efficient performance across various applications.
Constructed from durable steel, this winch withstands harsh working environments while maintaining a lightweight, compact design for easy transport and on-site maneuverability. Optional accessories including steel wire rope, hook, shackle, drop chain, and air treatment components allow for equipment customization.
Key Features
  • Product Name: JQH Series Air Winch
  • Material: Steel Construction
  • Rated Speed: 10-20 M/min
  • Line Speed: 10-70 M/min
  • Certifications: CE, ISO Compliant
  • Control Type: Remote Control Operation
Technical Specifications
Product Model JQH-5 ×48 (QB, QB, D, Y) JQH-10 ×24 (QB, QB, D, Y)
Rated Intake Pressure (MPa) 0.8 0.8
Maximum Lifting Force (kN) 5 10
Maximum Rope Speed (m/min) 48 24
Motor Power (kW) 2.6 2.6
Drum Diameter (mm) 180 200
Drum Length (mm) 200 200
Drum Flange Diameter (mm) 290 380
Rope Capacity (m) 60 60
Steel Wire Rope Diameter (mm) 8 11
Air Inlet Size (mm) 25 25
Dimensions: L×W×H (mm) 680×350×465 690×390×570
Net Weight (kg) 116 176
Applications
The JQH Series Air Winch is specially designed for oilfield lifting operations and performs reliably under harsh working conditions. With ISO, CE, and API certifications, it guarantees high quality and safety standards. Supporting wire rope diameters from 8mm to 20mm, it can be customized with optional accessories for specific operational requirements.
Customization Services
  • Brand Name: Juling
  • Model Number: JQH Air Winch
  • Place of Origin: China
  • Certification: ISO, CE, API
  • Minimum Order Quantity: 1 Unit
  • Delivery Time: 20 Days
  • Payment Terms: TT
  • Supply Ability: 10 Units Per Day
  • Brake Type: Automatic Disc Brake
  • Rated Load: 0.5 - 10 Ton
  • Rope Diameter: 8 - 20 mm
Packaging & Shipping
The JQH Series Air Winch is carefully packaged with protective materials and placed in sturdy cardboard boxes to prevent damage during transit. We offer fast, reliable shipping using trusted carriers to ensure timely delivery to your location.
