Specifications
Brand Name :
Juling
Certification :
API,CE,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
20
Packaging Details :
normal package
Rated Lifting Force :
10KN
Power Requirements :
220V/380V, 50Hz/60Hz
Capacity :
1000KG
Control Method :
Remote Control
Weight :
350KG
Maximum Lifting Speed :
10m/min
Cable Material :
Steel
Wire Rope Diameter :
8mm
Control System :
Remote control or pendant control
Certifications :
CE ISO
Material :
Steel
Description

Product Specifications:

Attribute Value
Rated Lifting Force 10KN
Power Requirements 220V/380V, 50Hz/60Hz
Capacity 1000kg
Control Method Remote Control
Weight 350KG
Maximum Lifting Speed 10m/min
Cable Material Steel
Wire Rope Diameter 8mm
Control System Remote control or pendant control
Certifications CE ISO
Material Steel

Product Description:

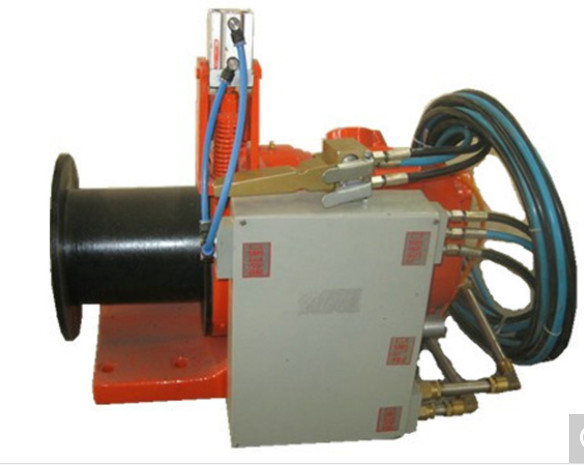

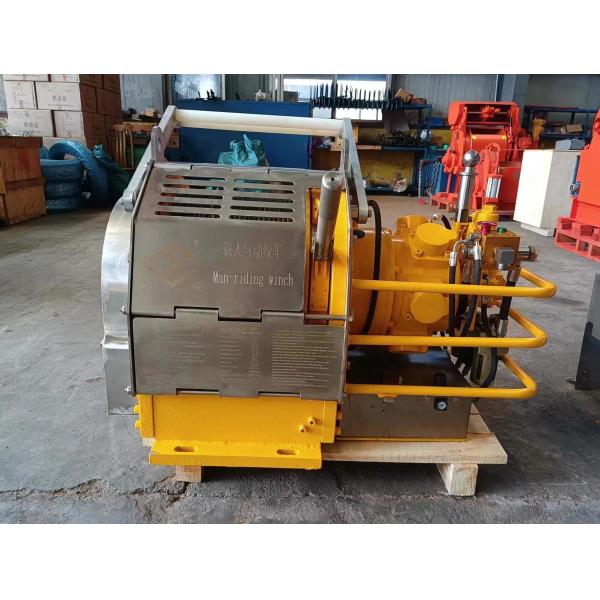

The Manrider Air Winch is a pneumatic motor-driven device integrated with a built-in planetary speed reducer. This core component enables the winch to efficiently drive its drum, empowering the equipment to fulfill reliable lifting and traction functions with stable performance during operation.

Engineered for dual-purpose functionality, the winch is capable of both personnel transport and heavy load handling. Its robust design and specialized performance make it a highly suitable solution for harsh working environments, particularly tailored to meet the rigorous demands of onshore and offshore oilfield operations.

Technical Specifications:

Specification 1.5kN 5kN 15kN 20kN
Lifting speed 0-30m/min 0-24m/min 0-20m/min 0-20m/min
Steel rope diameter φ10mm φ10mm φ19mm φ19mm
Wire capacity 150m 150m 130m 130m
Overall dimensions (L×W×H) 850×810×910 930×810×910 1350×810×910 1350×810×910
Motor rated power 1.8kW 2.6kW 16kW 16kW
Pressure of compressed air 0.25-0.8MPa 0.25-0.8MPa 0.25-0.8MPa 0.25-0.8MPa
Maximum air consumption 5m³/min 5m³/min 18.5m³/min 18.5m³/min


Brake system: Automatic disc brake + manual belt brake

Safety factors: 8:1 design factor for manned operations; 5:1 design factor for load handling. The minimum ratio of drum diameter to cable diameter is 18:1, preventing cable wear.

FAQ:

Q: What is the brand name of this Electric Winch?
A: The brand name is Juling.

Q: What is the model number of this Electric Winch?
A: The model number is DJFY.

Q: Where is this Electric Winch manufactured?
A: This Electric Winch is manufactured in China.

Q: What certifications does this Electric Winch have?
A: This Electric Winch is certified with CE, ABS, and API.

Q: What are the payment terms for purchasing this Electric Winch?
A: The payment terms are T/T.
